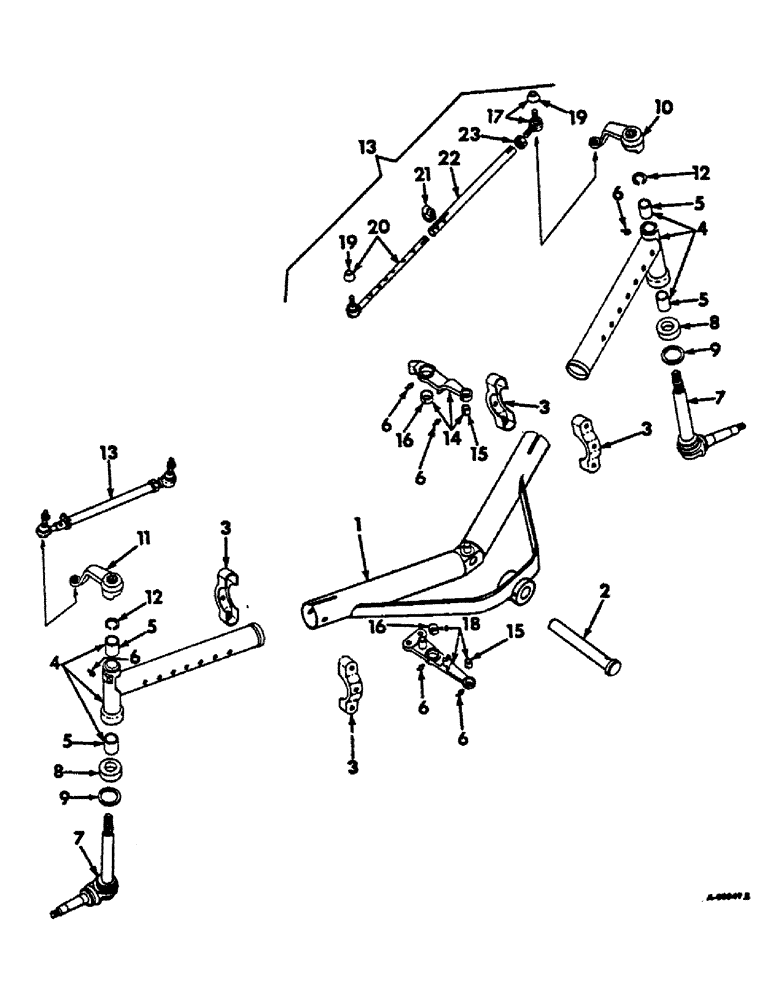

Запчасти Case IH 656 (J-18) - STEERING MECHANISM, FRONT AXLE AND CONNECTIONS, INTERNATIONAL TRACTORS Steering Mechanism

1

395974R92

AXLE ASSY, front

1шт.

2

400547R1

SHAFT

front axle

1шт.

21585R1

HEADED PIN,5/16" x 4 1/4"

PIN, 5/16 x 4-1/4 headed pin

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

385151R1

PIN

cylinder mounting bracket

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

Q3501

WASHER

25/32 x 1-1/4 x 16 ga

1шт.

3

361851R1

CLAMP, front axle extension

4шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 3-3/4 hex-hd cap

4шт.

102639

NUT,5/8"-11, G5

4шт.

302877R1

WASHER

.656 x 1.06 plain

4шт.

22327R1

SCREW, 5/8-11 x 5-1/2 hex-hd cap

2шт.

114507

JAM NUT,Jam, 5/8"-11, G5

2шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

2шт.

4

379641R91

EXTENSION

ASSY, front axle

2шт.

5

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

steering knuckle post

4шт.

6

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive lub

6шт.

7

406265R92

STEERING KNUCKLE

KNUCKLE ASSY, steering, composed of (1) knuckle 369143R1 (NSS), (1) pin 406264R2 (NSS), (1) seal 48539DA, (1) shield 48541D, Serial Range: -13199

2шт.

7

406265R92

STEERING KNUCKLE

KNUCKLE ASSY, steering, also order ring, 146008R1, composed of (1) knuckle 369143R1 (NSS), (1) pin 406264R2 (NSS), (1) seal 48539DA, (1) shield 48541D, Serial Range: -11780

2шт.

7

406267R92

STEERING KNUCKLE

KNUCKLE ASSY, steering, composed of (1) knuckle 374386R1 (NSS), (1) pin 406264R2 (NSS), (1) seal 370254R91, (1) shield 48701D, Start Serial: 13200

2шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex. jam

2шт.

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 slt hex., Serial Range: -13199

2шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt hex., Start Serial: 13200

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

Q326

WASHER

1-13/32 x 2-3/4 x .0478 ga

2шт.

8

405831R91

BEARING

steering knuckle thrust

2шт.

9

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle felt

2шт.

10

379642R1

LEVER

ARM, steering knuckle LH

1шт.

11

379643R1

LEVER

ARM, steering knuckle RH

1шт.

12

361850R1

RING

steering knuckle arm snap, Serial Range: -11780

2шт.

12

146008R1

SNAP RING,M41.15 x 2.46mm Thk, Ext

RING, steering knuckle arm snap, Start Serial: 11781

2шт.

13

379549R92

ROD

WITH CLAMPS, tie

2шт.

108635

PIN,1/8" x 1 1/8"

Split (Cotter), 1/8" x 1 1/8"

4шт.

578274R1

WASHER

21/32 x 1 x 11 ga

4шт.

14

379553R11

LEVER

ARM ASSY, upper cyl support

1шт.

15

379554R1

BUSHING,25.43mm ID x 28.57mm OD x 19.05mm L

BUSHING, front cyl support arm

2шт.

16

379748R1

BUSHING

rear cyl support arm

2шт.

17

379551R91

SOCKET

END W/COVER, 382562R1 and nut, 102649, tie rod threaded

1шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

2шт.

18

379555R11

LEVER

ARM ASSY, lower cyl support

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 hex-hd cap

2шт.

19

382562R1

SEAL

COVER, tie rod end dust

4шт.

20

379552R92

END

w/cover, 382562R1 and nut, 102649, tie rod adj

2шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

2шт.

21

375620R1

CLAMP

tie rod

2шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex.

2шт.

181440

BOLT,Hex, 1/2" - 20 x 2 1/2", Gr 5

SCREW, 1/2-20 x 2-1/2 hex-hd cap

2шт.

106500

WASHER, 1/2 light lock

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1-1/16 x 17/32 x .095

2шт.

22

379550R1

TUBE,0.948" ID, .333" OD, 17" Length

tie rod

2шт.

23

374062R1

JAM NUT

NUT, 1-1/16 hex, tie rod end

2шт.
