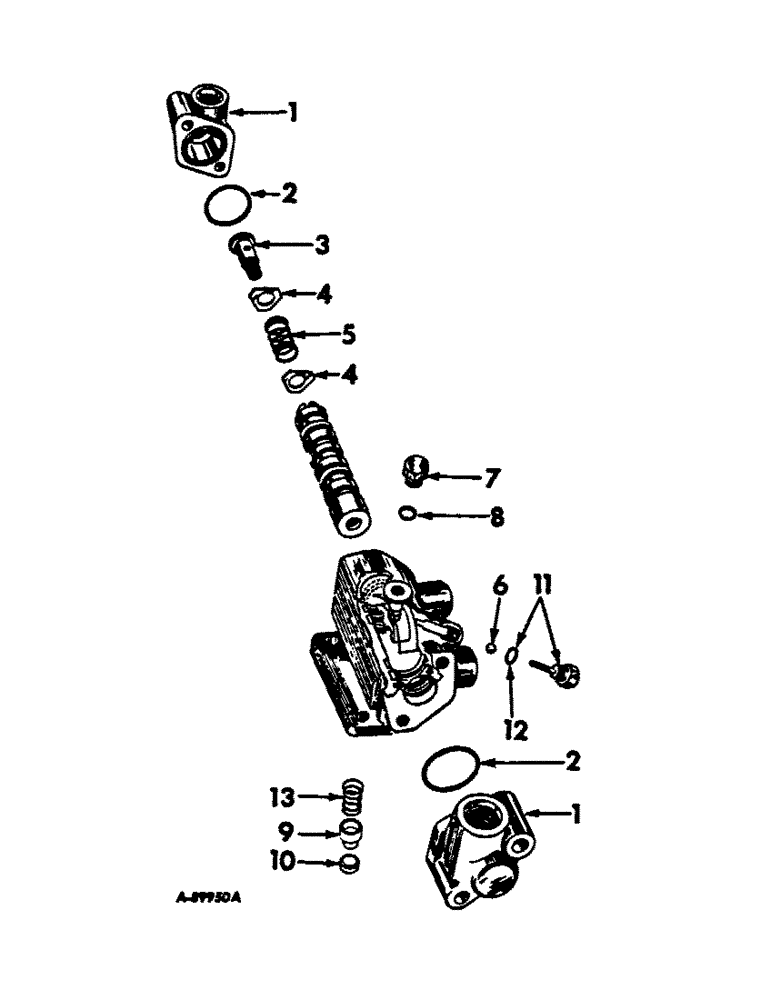

Запчасти Case IH 656 (J-15) - STEERING MECHANISM, POWER STEERING PILOT VALVE Steering Mechanism

379645R93

VALVE

ASSY, power steering pilot, order valve, 527492R91, Farmall tractors

1шт.

385131R92

VALVE ASSY, power steering pilot, order valve, 527492R91, International tractors

1шт.

527492R91

LOCK VALVE

VALVE ASSY, power steering pilot

1шт.

1

379894R1

CAP

end

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

2

387088R1

SEALING RING,1.237" ID x 0.103" Width

SEAL, end cap

2шт.

3

379896R1

SCREW,3/8" - 24, Drilled, W/ Nylon Pellet

spring centering

1шт.

4

379897R1

WASHER

centering screw

2шт.

5

379905R1

SPRING

valve centering

1шт.

Used with valve, 379645R93.

1шт.

5

385622R1

SPRING, valve centering

1шт.

Used with valve, 385131R92.

1шт.

5

395754R1

SPRING

valve centering

1шт.

Used with valve, 527492R91.

1шт.

6

16008R1

BALL,1/4" Dia, Steel

1/4 steel

1шт.

Used with valve, 527492R91.

1шт.

7

9410357

PLUG

o-ring boss

1шт.

8

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

9

527494R1

VALVE

check, also order seat, 527495R1

1шт.

10

527495R1

DISC

SEAT, check valve, also order valve, 527494R1

1шт.

11

379901R91

PLUG

ASSEMBLY

1шт.

12

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

13

382125R1

SPRING

pressure check

1шт.

527493R91

PACKAGE

pilot valve service, consists of (1) o-ring 369384R1, (1) o-ring 379795R1, (2) seal 387088R1

1шт.
