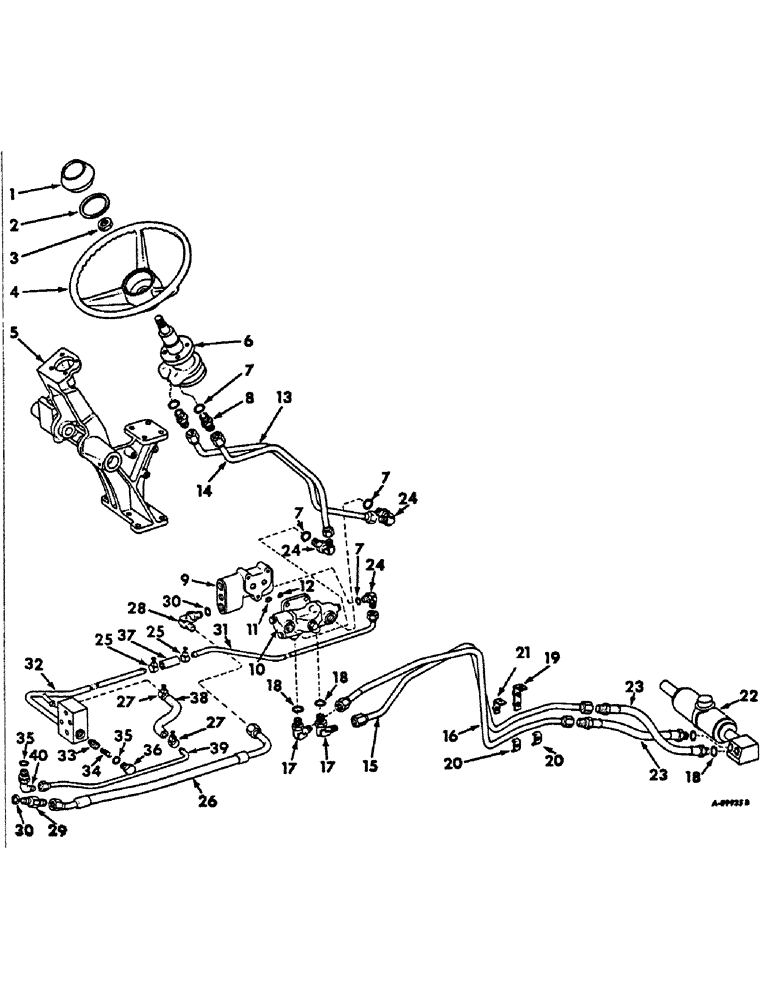

Запчасти Case IH 656 (J-13) - STEERING MECHANISM, POWER STEERING, INTERNATIONAL TRACTORS WITH HYDROSTATIC DRIVE Steering Mechanism

1

378395R1

CAP

steering wheel monogrammed

1шт.

2

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32

1шт.

3

368576R1

SPECIAL NUT

NUT, steering wheel

1шт.

4

385156R1

WHEEL (STEERING)

WHEEL, 16 in. dia steering

1шт.

4

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

5

399070R2

SUPPORT, steering

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-3/8 hex-hd cap

10шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

6

378578R95

HYDRAULIC STEERING

PUMP, hydrostatic power steering hand

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

4шт.

7

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .087

2шт.

8

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 37 deg hyd flared tube short swivel

2шт.

9

396876R91

VALVE ASSY, power steering flow divider, for components see list of parts under details of power steering flow divider valve, Serial Range: -14106

1шт.

9

543959R91

VALVE ASSY, power steering flow divider, for components see list of parts under details of power steering flow divider valve, Start Serial: 14107

1шт.

10

527492R91

LOCK VALVE

VALVE ASSY, power steering pilot, will work for 396726R91, for components see list of parts under details of power steering pilot valve

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

11

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, pilot valve large

1шт.

12

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32, pilot valve small

1шт.

13

399668R1

TUBE ASSY, hand pump left hand

1шт.

14

399670R1

TUBE ASSY, hand pump right hand

1шт.

15

396286R1

TUBE ASSY, no. 1 power steering cyl

1шт.

16

396288R1

TUBE ASSY, no. 2 power steering cyl

1шт.

17

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg flared adj straight thd 90 deg

2шт.

18

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

4шт.

19

397136R1

BRACKET ASSY, tube support

1шт.

20

381394R1

CLAMP

power steering tube

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

21

397208R1

SUPPORT ASSY, power steering tubes

1шт.

22

391982R91

CYLINDER

ASSY, hydrostatic power steering, for components see list of parts under details of power steering cylinder

1шт.

23

379652R92

HOSE ASSY.

HOSE ASSY, power steering

2шт.

24

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 deg flared tube adj str thd 90 deg

3шт.

25

261498R91

COLLAR CLAMP,nasp

CLAMP, differential lube hose

2шт.

26

401842R1

TUBE

ASSY, power steering to reservoir, will work for 396884R11

1шт.

27

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

Power steering to reservoir hose #06, .44/.78 Type F Worm

2шт.

28

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

1-1/16-12 37 deg hyd flared tube adj str thd 90 deg

1шт.

29

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

UNION, 1-1/16-12 37 deg hyd flared tube short swivel

1шт.

30

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

2шт.

31

403570R1

TUBE ASSY, differential lube, for service replacement of 399666R1 also order differential lube hose 388606R1

1шт.

32

399680R1

MANIFOLD ASSY, lub tube supply

1шт.

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

3шт.

33

354057R2

VALVE

check

1шт.

34

382334R1

SPRING

check

1шт.

35

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

36

390825R1

PLUG

std thd o-ring boss

1шт.

179846

LEVER

3шт.

37

388606R1

HYDRAULIC HOSE,12.70 mm ID x 342.00 mm, SAE 100R6, SAE J517

HOSE, differential lube, used with differential lube tube 403570R1

1шт.

37

390799R1

HOSE, differential lub, used with differential lube tube 399666R1

1шт.

Can sub to 388606R1. P/N 388606R1 can be made by cutting 13.5" from bulk P/N 73199C1, which is 5" I.D. cooler hose.

1шт.

38

HOSE, power steering to reservoir, use 8 in. of 3/8 in. ID hose from 50 ft. roll, 526601R1

1шт.

39

399674R1

TUBE & HOSE ASSY, aux power supply

1шт.

40

400840R1

ELBOW ASSY, power steering return rear tube

1шт.
