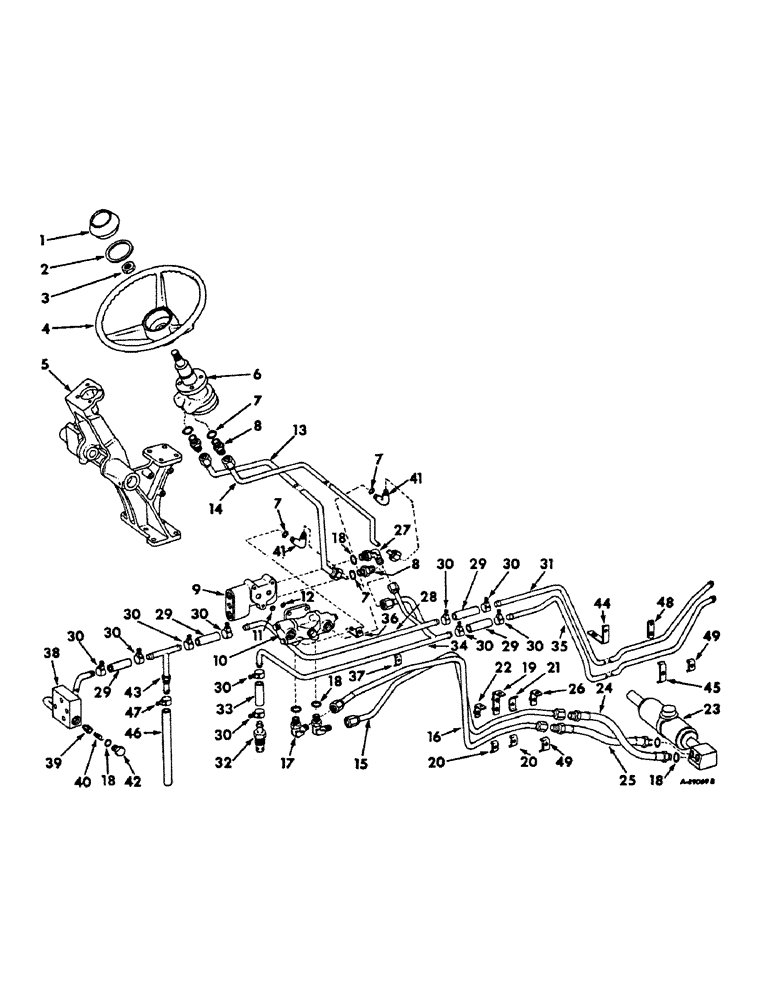

Запчасти Case IH 656 (J-08) - STEERING MECHANISM, POWER STEERING, INTERNATIONAL GEAR DRIVE TRACTORS Steering Mechanism

1

378395R1

CAP

steering wheel monogrammed

1шт.

2

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32

1шт.

3

373091R1

BUSHING

NUT, steering wheel

1шт.

4

385156R1

WHEEL (STEERING)

WHEEL, 16 in. dia steering

1шт.

4

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

5

395858R2

SUPPORT, steering

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 1/8-27 PTF str lub

2шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap

4шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

2шт.

6

378578R95

HYDRAULIC STEERING

PUMP ASSY, hydrostatic power steering hand, for components see list of parts under details of power steering hand pump

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

4шт.

7

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .087

5шт.

8

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 C-Z 37 deg hyd flared tube short swivel

3шт.

9

386910R91

VALVE ASSY, power steering flow divider, for components see list of parts under details of power steering flow divider valve, Serial Range: -14117

1шт.

9

543960R91

LOCK VALVE

VALVE ASSY, power steering flow divider, for components see list of parts under details of power steering flow divider valve, Start Serial: 14118

1шт.

10

527492R91

LOCK VALVE

VALVE ASSY, power steering pilot, will work for 396726R91, for components see list of parts under details of power steering pilot valve

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, pilot valve large

1шт.

12

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32, pilot valve small

1шт.

13

399668R1

TUBE ASSY, hand pump LH, will work for 396282R1

1шт.

14

399670R1

TUBE ASSY, hand pump RH, will work for 396284R1

1шт.

15

396286R1

TUBE ASSY, no. 1 power steering cyl

1шт.

16

396288R1

TUBE ASSY, no. 2 power steering cyl

1шт.

17

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 C-Z 37 deg hyd flared tube adj str thd 90 deg

2шт.

18

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

6шт.

19

397136R1

BRACKET ASSY, tube support

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

1шт.

20

381394R1

CLAMP

power steering tube

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

21

381448R1

CLAMP

oil cooler tubes

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

22

397208R1

SUPPORT ASSY, power steering tubes

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

1шт.

23

391982R91

CYLINDER

ASSY, hydrostatic power steering, for components see list of parts under details of power steering cylinder

1шт.

24

379652R92

HOSE ASSY.

HOSE ASSY, power steering, long

1шт.

25

379652R92

HOSE ASSY.

HOSE ASSY, power steering

1шт.

26

397206R1

SUPPORT, oil cooler tubes

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

1шт.

27

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 C-Z 37 deg hyd flared tube adj str thd 90 deg

1шт.

28

396290R1

TUBE ASSY, cooler return rear

1шт.

29

387154R1

HOSE, pipe cooler return rear

4шт.

30

261498R91

COLLAR CLAMP,nasp

CLAMP, cooler return pipe hose

10шт.

31

396293R1

TUBE, power steering to oil cooler

1шт.

32

388448R93

VALVE

ASSY, oil cooler by-pass

1шт.

33

387154R1

HOSE, pipe cooler supply

1шт.

34

396294R1

TUBE ASSY, cooler supply rear

1шт.

35

396297R1

TUBE ASSY, cooler supply front

1шт.

36

396298R1

BRACKET ASSY, oil cooler pipes

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x 1/16) 3/8"

1шт.

37

396300R1

CLAMP, oil cooler pipes

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

38

396301R1

MANIFOLD ASSY, lub supply

1шт.

39

354057R2

VALVE

check

1шт.

40

382334R1

SPRING

check

1шт.

41

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 C-Z 37 deg hyd flared tube adj str thd 90 deg

2шт.

42

390825R1

PLUG

std thd o-ring boss

1шт.

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

3шт.

43

404252R1

TEE ASSY, cooler return & steering

1шт.

44

382227R1

BRACKET, oil cooler tubes front

1шт.

45

382226R1

CLAMP, oil cooler tubes front

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

1шт.

102635

NUT,3/8"-16, G5

1шт.

46

389981R1

HOSE, oil cooler return internal

1шт.

47

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

Internal hose #06, .44/.78 Type F Worm

1шт.

48

381899R11

BRACKET ASSY, oil cooler tube, engine mounting front

1шт.

49

381448R1

CLAMP

cooler tubes, engine mounting front

2шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

382772R11

BRACKET ASSY, oil cooler tube, engine mounting rear

1шт.

381448R1

CLAMP

cooler tubes, engine mtg rear bracket

1шт.
