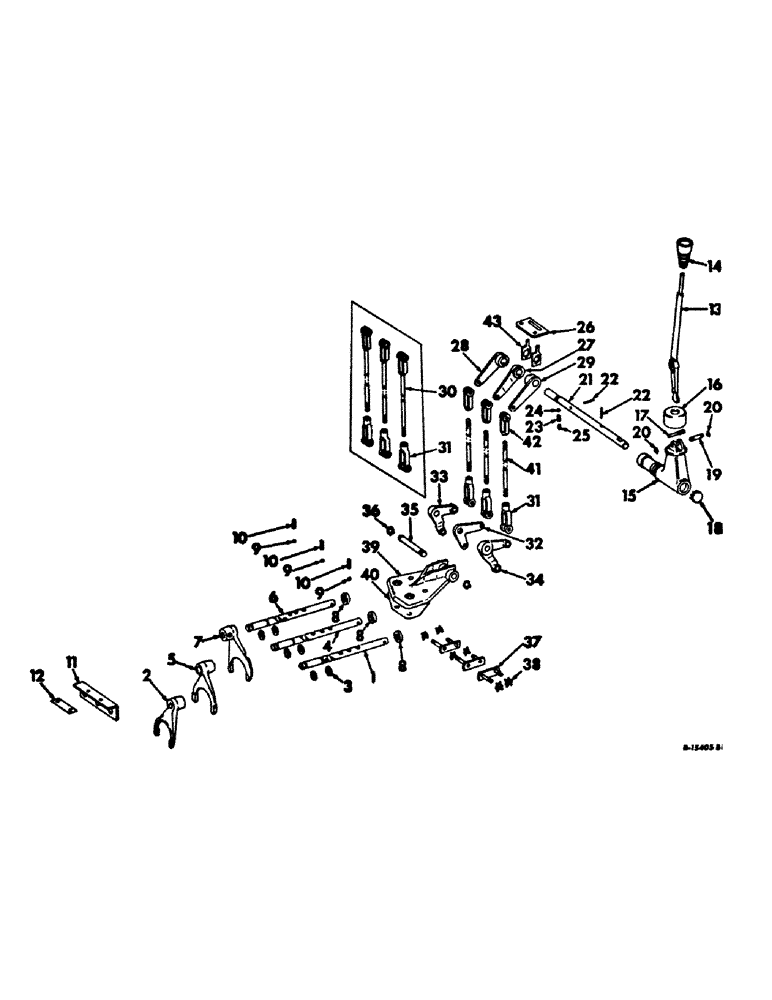

Запчасти Case IH 656 (H-06) - CONTROLS, GEAR SHIFT MECHANISM, TRACTORS WITH GEAR DRIVE Controls

1

388171R1

RAIL, 1st & reverse speed shifter

1шт.

2

388172R1

FORK

shifter, 1st & reverse speed

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8 ext-tooth lock

1шт.

3

388173R1

RING

shifter rail stop snap

6шт.

4

65718C1

RAIL

2nd and 3rd speed shifter, will work for 388174R1 when used w/gear 65716C1

1шт.

5

388175R1

FORK

shifter, 2nd & 3rd speed

1шт.

NLS

NO LONGER SERVICED

1шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8 ext-tooth lock

1шт.

6

388176R1

SHAFT

RAIL, 4th & 5th speed shifter

1шт.

7

388172R1

FORK

shifter, 4th & 5th speed

1шт.

NLS

NO LONGER SERVICED

1шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8 ext-tooth lock

1шт.

8

111710R91

SEAL

shifter rail oil

3шт.

9

13722D

BALL

1/2 cr-stl

3шт.

10

41058DA

SPRING

shifter rail poppet

3шт.

11

388177R1

ANGLE

shifter fork rear support

1шт.

12

388178R1

SHIM

PLATE, shifter fork rear support lock

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

2шт.

13

388179R1

HANDLE

transmission shift, Farmall tractors

1шт.

13

397345R1

HANDLE

transmission shift, International tractors

1шт.

14

388180R2

GRIP

KNOB, shift handle

1шт.

The product graphic for this knob is P/N 2752898R1.

1шт.

15

388181R2

HOUSING

transmission shift handle

1шт.

21018R1

WASHER

25/32 x 1-1/2 x 22 ga, Farmall tractors, Serial Range: -45578

1шт.

21018R1

WASHER

25/32 x 1-1/2 x 22 ga, International tractors, Serial Range: -14230

1шт.

Q251

WASHER

17/32 x 1-3/4 x 22 ga, Farmall tractors, Start Serial: 45579

1шт.

Q251

WASHER

17/32 x 1-3/4 x 22 ga, International tractors, Start Serial: 14231

1шт.

16

388182R1

INSULATOR

BOOT, shift handle housing

1шт.

17

388183R1

SCREW,1/4" - 20 x 2"

shift handle retaining

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

18

192280

HOLE PLUG BUTTON,1 1/4"

PLUG, 1-1/4 C-Z button

1шт.

19

388184R1

PIN

shift handle pivot

1шт.

20

269192R1

SNAP RING,#50, Ext

Ring, Snap, , shift handle pivot pin #50, Ext

1шт.

21

388185R2

SHAFT

transmission shift-cross, for serivce order package, 534131R91, Serial Range: -45578

1шт.

21

534120R91

SHAFT

ASSY, transmission shift-cross, Farmall tractors, Start Serial: 45579

1шт.

21

395892R2

SHAFT

ASSY, transmission shift-cross, International tractors, for service order package, 534130R91, Serial Range: -14230

1шт.

21

534122R91

SHAFT

ASSY, transmission shift-cross, International tractors, Start Serial: 14231

1шт.

22

20472R1

DOWEL,5/16" x 1 1/8"

PIN, 5/16 x 1-1/8 dowel, Farmall tractors, Serial Range: -45578

2шт.

22

20472R1

DOWEL,5/16" x 1 1/8"

PIN, 5/16 x 1-1/8 dowel, International tractors, Serial Range: -14230

2шт.

22

534119R1

PIN,6.35mm OD x 28.45mm L

shift-cross, Farmall tractors, Start Serial: 45579

2шт.

22

534119R1

PIN,6.35mm OD x 28.45mm L

shift-cross, International tractors, Start Serial: 14231

2шт.

23

404170R1

SPRING

poppet, replaces 14526D

1шт.

24

16012R1

BALL

3/8 chrome stl grade 2

1шт.

25

83-25016

SET SCREW,Hex Soc, 1/2"-13 x 1"

SCREW, 1/2-13 x 1 allen

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

26

404941R1

BAR

PLATE, divider top, also order 404942R1, will work for 388186R1

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

27

388187R11

LEVER

ASSY, rod operating, center, Farmall tractors

1шт.

27

395895R1

LEVER

ASSY, rod operating center, International tractors

1шт.

28

388188R92

LEVER

ASSY, rod operating LH, Farmall tractors

1шт.

28

395893R2

LEVER

ASSY, rod operating LH, International tractors

1шт.

29

388189R91

LEVER

ASSY, rod operating RH, Farmall tractors, Serial Range: -45578

1шт.

29

534117R1

LEVER

ASSY, rod operating RH, Farmall tractors, Start Serial: 45579

1шт.

29

395897R1

LEVER

ASSY, rod operating RH, International tractors, Serial Range: -14230

1шт.

29

534118R1

LEVER

ASSY, rod operating RH, International tractors, Serial Range: -14231

1шт.

30

388195R11

ROD ASSY, for service replacement order one stud, 397019R1, one clevis, 21364R1 and one nut, 116428

1шт.

31

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8-24 x 2-1/2

3шт.

114494

NUT,Jam, 3/8"-24, G5

3шт.

140549

PIN

3/8 x 1-3/32 rod end, used w/rod, 388195R11

3шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), , Used w/rod, 388195R11 3/32" x 3/4"

3шт.

393181R1

PIN,9.47mm OD x 31.55mm L

3/8 x 1-1/4 clevis, used w/pin, 393181R1

3шт.

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, , clevis pin, used w/pin, 393181R1 #37, .300" Dia, E-Type

3шт.

32

388196R1

LEVER

transmission shift, center, Farmall tractors

1шт.

32

395902R1

LEVER

transmission shift center, International tractors

1шт.

33

398623R1

LEVER

ASSY, transmission shift LH, will work for 388197R11, Farmall tractors

1шт.

33

395900R1

LEVER

ASSY, transmission shift LH, International tractors

1шт.

34

398624R1

LEVER

ASSY, transmission shift RH, will work for 388198R11, Farmall tractors

1шт.

34

395903R1

LEVER

ASSY, transmission shift RH, International tractors

1шт.

35

388200R1

PIN

transmission shift pivot

1шт.

36

269174R1

SNAP RING,#62, Ext

Ring, Snap, , transmission shift pivot, shaft #62, Ext

2шт.

37

388201R11

DRAG LINK

LINK ASSY, transmission shift actuating

3шт.

38

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

transmission shift act link

6шт.

39

388204R1

BRACKET

transmission pivot shaft support

1шт.

179874

BOLT,Hex, 7/16" - 14 x 4", Gr 5

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

2шт.

40

392007R1

GASKET

transmission pivot shaft support bracket

1шт.

41

397019R1

STUD

transmission shift rod, Farmall tractors

3шт.

41

399131R1

STUD

transmission shfit rod, International tractors

3шт.

116428

NUT,Jam, 3/8"-24, G5, LH

3/8-24 hex. jam, LH thread

3шт.

42

21364R1

CLEVIS

3/8 x 2-1/2, LH thread

3шт.

393181R1

PIN,9.47mm OD x 31.55mm L

rod end clevis

3шт.

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, , clevis pin #37, .300" Dia, E-Type

3шт.

43

404942R1

PLATE

lever divider, also order 404941R1, will work for 388186R1

2шт.

44

551658R1

WASHER

not shown

1шт.

534130R91

LEVER

PACKAGE, transmission shifting, International tractors, Serial Range: -14230

1шт.

Consists of (1) housing 388181R2, (1) fitting 109461, (1) nut 114505, (1) lever 534117R1, (2) pin 534119R1, (1) plug 192280, (1) screw 139500, (4) washer Q251, (1) shaft 534120R91

1шт.

534131R91

HOUSING

PACKAGE, transmission shifting, Farmall tractors, Serial Range: -45578

1шт.

Consists of (1) housing 388181R2, (1) fitting 109461, (1) nut 114505, (1) lever 534117R1, (2) pin 534119R1, (1) plug 192280, (1) screw 139500, (4) washer Q251, (1) shaft 534120R91

1шт.
