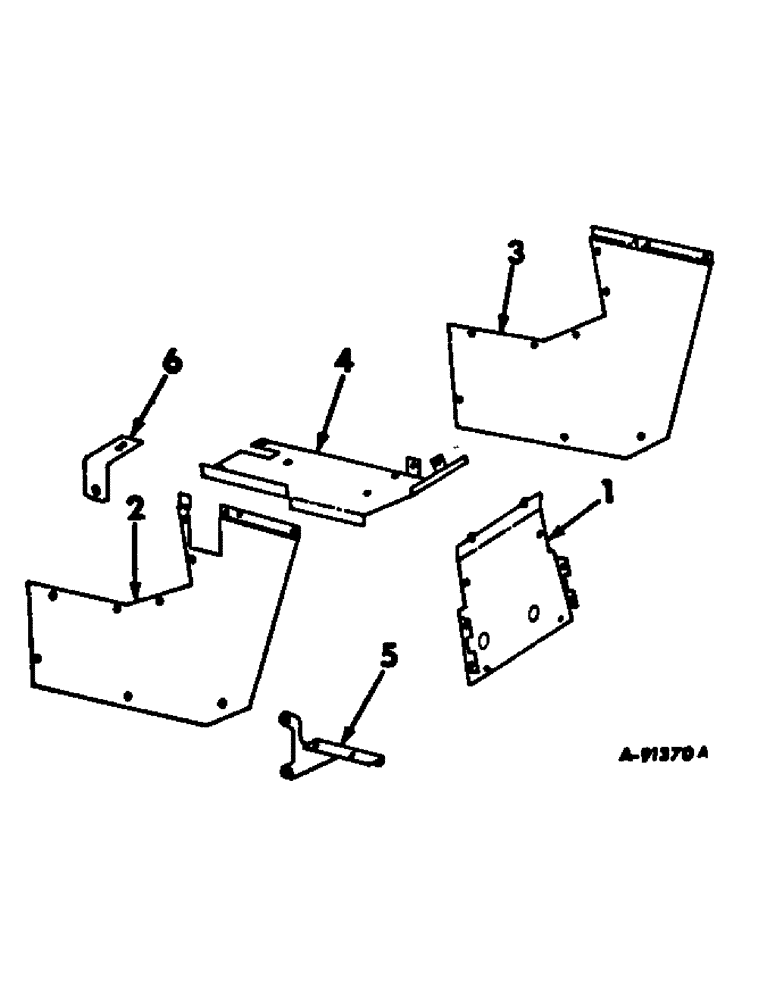

Запчасти Case IH 656 (A-20) - CHASSIS, RADIATOR & SHEET METAL, PLATFORMS & SUPPORTS, INTERNATIONAL TRACTORS W/ FOOT PEDAL CONTROLS Chassis, Radiator & Sheet Metal

1

396232R2

PANEL ASSY, platform front

1шт.

192280

HOLE PLUG BUTTON,1 1/4"

PLUG, 1-1/4 button

2шт.

2

399941R1

PANEL

ASSY, rear hood lower RH, for service replacement order RH panel assy, 403320R1 and RH platform, 403328R11

1шт.

2

403320R1

PANEL ASSY.

PANEL ASSY, rear hood lower RH

1шт.

21592R1

SCREW, 5/16-18 x 1/2 cr-rec-truss-hd

5шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

3шт.

3

399942R1

PANEL ASSY, rear hood lower LH, for service replacement order LH panel assy, 404062R1 and LH platform, 404064R1

1шт.

3

404062R1

PANEL ASSY, rear hood lower LH

1шт.

21592R1

SCREW, 5/16-18 x 1/2 cr-rec-truss-hd

5шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

3шт.

4

399945R1

PLATFORM, LH, for service replacement order LH platform, 404064R1 and LH panel assy, 404062R1

1шт.

4

404064R91

PLATFORM, LH w/2 cage nuts, 363885R91

1шт.

14993R1

BOLT, 1/4-20 sq-nk crg

3шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

2шт.

109084

NUT,1/4"-20, G5

3шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

5

399686R1

BRACKET, platform front LH

1шт.

6

398748R2

SUPPORT, platform rear LH

1шт.

397235R1

TREAD, non-skid

3шт.
