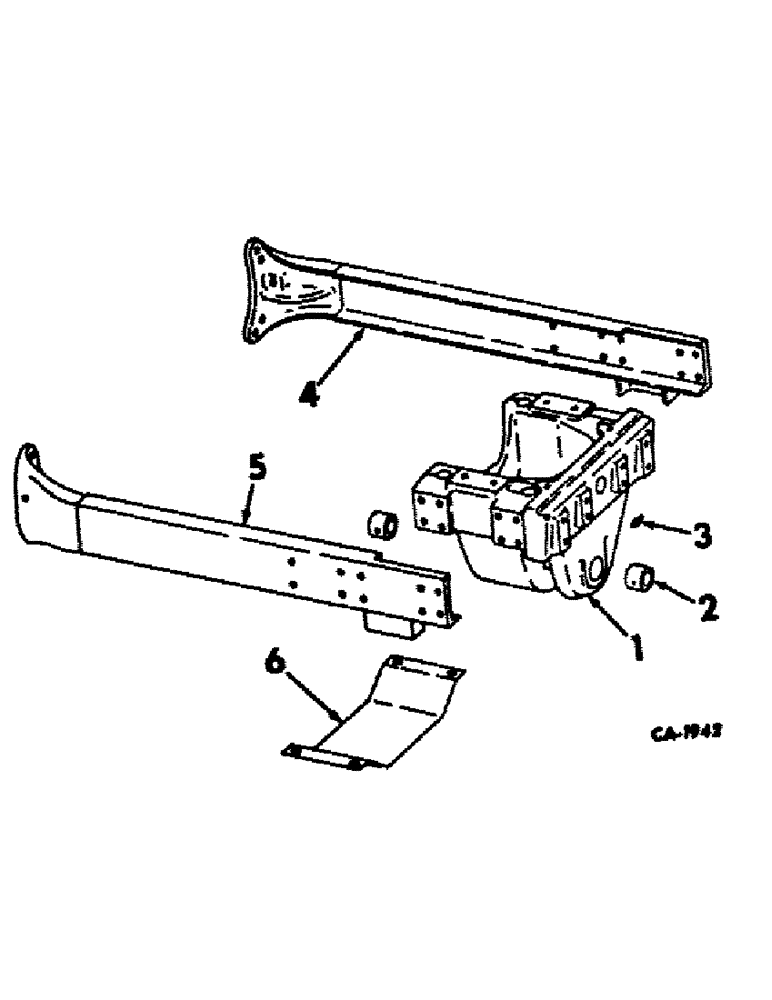

Запчасти Case IH 656 (A-09) - CHASSIS, RADIATOR AND SHEET METAL, FRONT FRAME CHANNELS AND BOLSTERS, INTERNATIONAL TRACTORS Chassis, Radiator & Sheet Metal

1

395857R11

BOLSTER ASSY

1шт.

2

395870R1

BUSHING,44.73mm ID x 47.85mm OD x 40.64mm L

front axle pivot

2шт.

3

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, front axle lub

2шт.

4

398909R3

CHANNEL ASSY, front frame LH

1шт.

271557

DEFLECTOR,Hex, 5/8" - 11 x 1 3/8", Gr 5

SCREW, 5/8-11 x 1-3/8 hex-hd cap

4шт.

359259R1

BOLT,Hex, 5/8" - 11 x 2"

SCREW, 5/8-11 x 2 hex-hd cap

4шт.

5

398910R2

CHANNEL ASSY, front frame RH

1шт.

13-1022

BOLT,Hex, 5/8" - 11 x 1-3/8", Gr 5, Full Thd

SCREW, 5/8-11 x 1-3/8 hex-hd cap

4шт.

359259R1

BOLT,Hex, 5/8" - 11 x 2"

SCREW, 5/8-11 x 2 hex-hd cap

4шт.

271564

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

SCREW, 5/8-11 x 2-1/2 hex-hd cap

4шт.

6

400520R1

SHIELD, fan pulley

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.
