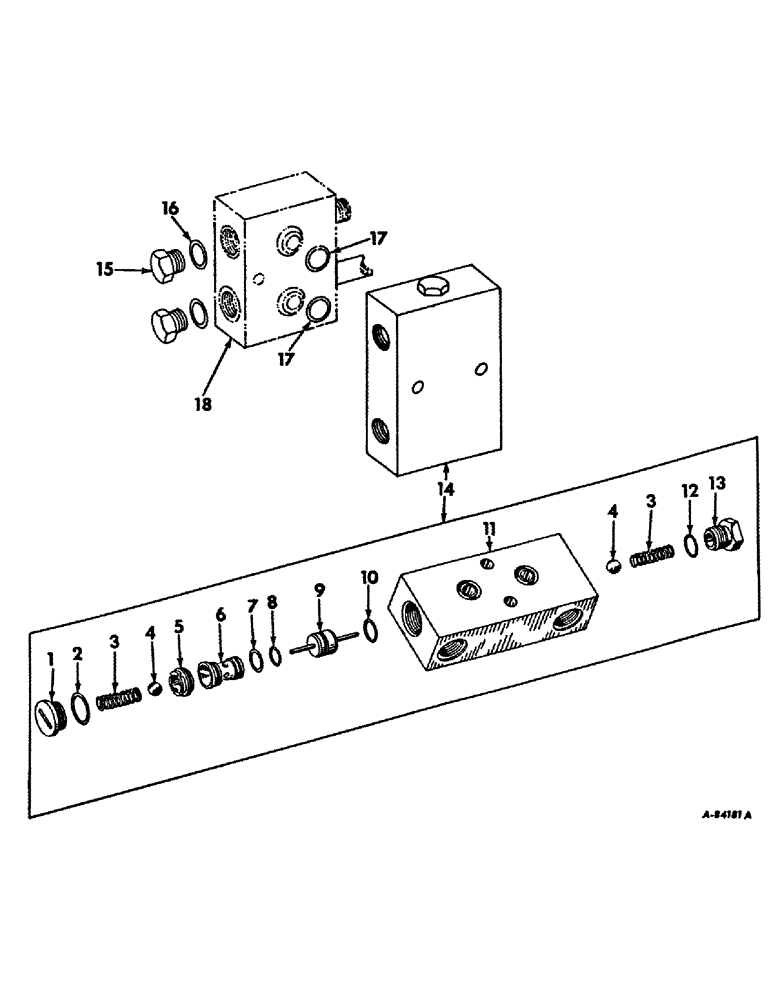

Запчасти Case IH 656 (F-64) - HYDRAULICS, DOUBLE ACTING CHECK VALVE AND CONNECTIONS, TRACTORS WITH REMOTE CONTROL (07) - HYDRAULIC SYSTEM

1

374088R1

PLUG

check valve

1шт.

2

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 x 1-1/16 x 7/64, check valve plug

1шт.

3

372649R1

SPRING

check valve

2шт.

4

17016R1

BALL,1/2" Dia

2шт.

5

374172R1

NUT

check valve ball retainer

1шт.

6

374087R21

RETAINER

ASSY, check valve ball

1шт.

7

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk, Ball Retainer, Large

1шт.

8

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

11/16 x 13/16 x 1/16, ball retainer small

1шт.

9

374085R11

PISTON

ASSY, check valve actuator

1шт.

10

606271C1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

5/8 x 13/16 x 3/32, piston

1шт.

11

BLOCK ASSY, check valve, not serviced separately, order check valve, 374083R92

1шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, check valve plug

1шт.

13

374089R1

PLUG

check valve

1шт.

14

374083R92

VALVE

ASSY, check

1шт.

102635

NUT,3/8"-16, G5

2шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd cap

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

2шт.

15

9403334

PLUG,7/8"-14, 37 Degree

7/8-14 C-Z pltd 37 deg hyd flared tube

2шт.

16

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, junction block plug

2шт.

17

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

2шт.

18

MANIFOLD, refer to auxiliary valves & tubes listings

1шт.
