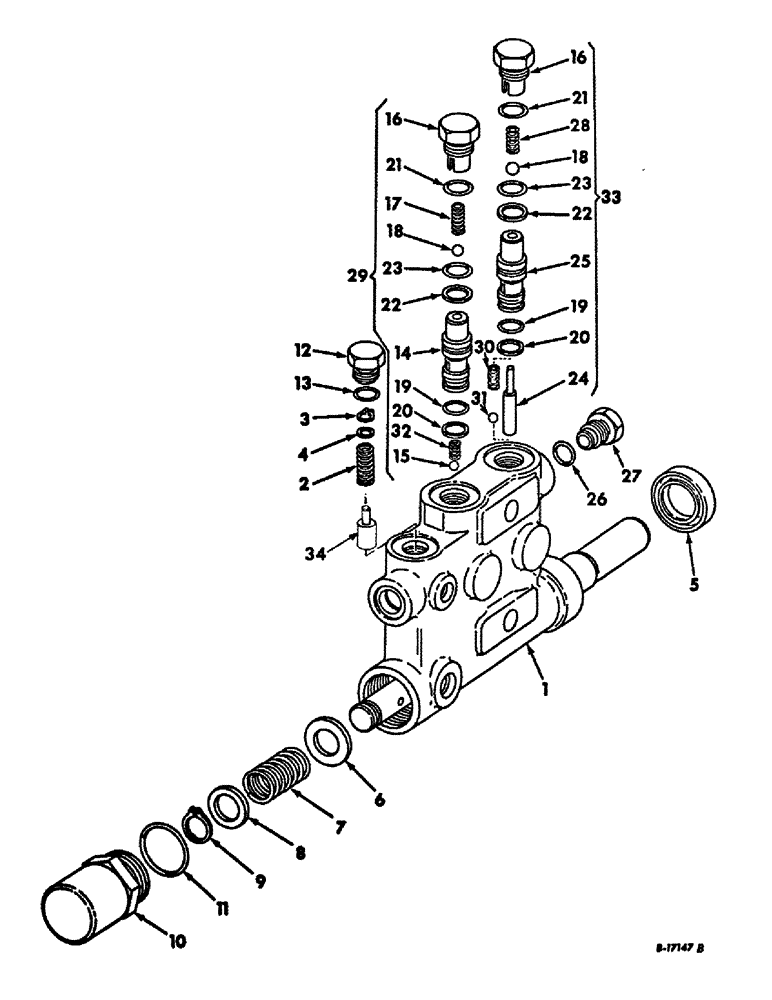

Запчасти Case IH 656 (F-22) - HYDRAULICS, DRIVE CONTROL VALVE, HYDROSTATIC DRIVE TRACTORS (07) - HYDRAULIC SYSTEM

398719R93

VALVE

ASSY, drive control

1шт.

1

BLOCK ASSY, shuttle, not serviced separately order valve assy, 398719R93

1шт.

529850R1

PLUG, pressure, flush type

1шт.

2

400454R1

SPRING

anti-coast valve

1шт.

3

875777R1

SNAP RING,#25, Ext

Ring, Snap, #25, Ext

1шт.

4

401291R1

SPRING WASHER

anti-coast valve pin

1шт.

5

381232R91

OIL SEAL

oil

1шт.

6

398693R1

WASHER

1шт.

7

398733R1

SPRING

shuttle valve centering

1шт.

8

398694R1

WASHER

1шт.

9

398700R1

SNAP RING,#56, .524", Ext

RING, retaining

1шт.

10

398692R1

PLUG

shuttle valve

1шт.

11

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube

1шт.

12

533567R1

PLUG

9/16-18 str thd o-ring boss

1шт.

13

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

14

VALVE ASSY, combination, not serviced separately order valve assy, 404497R3

1шт.

15

BALL, 7/32 diameter steel, not serviced separately order valve assy, 404497R3

1шт.

16

BODY, check valve, not serviced separately order valve assy, 404496R3 or 404497R3

2шт.

17

SPRING, check valve, not serviced separately order valve assy, 404497R3

1шт.

18

BALL, 5/16 diameter steel, not serviced separately order valve assy, 404496R3 or 404497R3

2шт.

19

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 x 1/16

2шт.

20

398699R1

BACK-UP RING

RING, back up

2шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

2шт.

22

383004R1

BACK-UP RING,Split, 13.16mm ID x 15.9mm OD x 1.32mm Thk

RING, back up

2шт.

23

370920R1

O-RING,1/2" ID

1/2 x 5/8 x 1/16

2шт.

24

398696R1

PIN

lower valve lift

1шт.

25

VALVE ASSY, combination, not serviced separately, order valve assy, 404496R3

1шт.

26

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

3/8 x 1/2 x 1/16

2шт.

27

9410356

PLUG

7/16-20 str thd o-ring boss

2шт.

28

SPRING, upper check valve, not serviced separately, order valve assy, 404496R3

1шт.

29

404497R3

VALVE

ASSY, B capsule

1шт.

30

SPRING, lower check valve, not serviced separately, order valve assy, 404496R3

1шт.

31

BALL, 1/4 diameter steel, not serviced separately, order valve assy, 404496R3

1шт.

32

SPRING, low pressure relief, not serviced separately, order valve assy, 404497R3

1шт.

33

404496R3

VALVE

ASSY, A capsule

1шт.

34

VALVE, anti-doast, not serviced separately, order valve assy, 398719R93

1шт.
