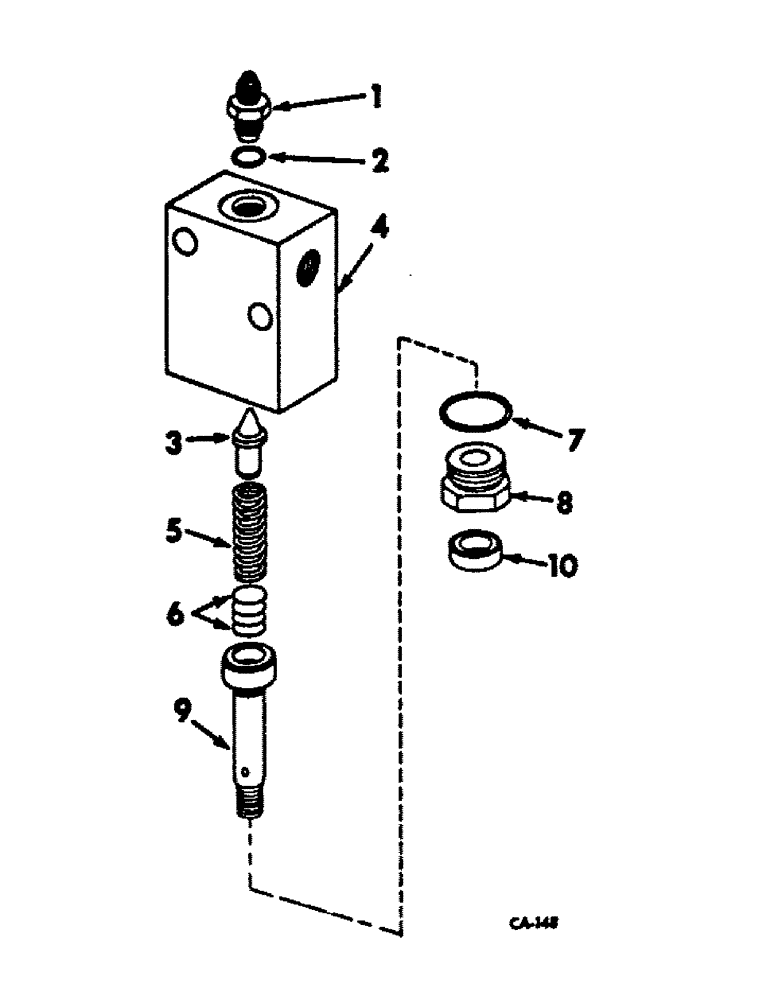

Запчасти Case IH 656 (F-21) - HYDRAULICS, PILOT RELIEF VALVE, FOOT-N-INCH, HYDROSTATIC DRIVE TRACTORS (07) - HYDRAULIC SYSTEM

398705R91

VALVE

ASSY, foot-n-inch

1шт.

1

398709R1

SEAT

high pressure pilot relief valve

1шт.

2

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

3/8 x 1/2 x 1/16, Pilot relief valve seat

1шт.

3

398710R1

VALVE POPPET

POPPET, high pressure pilot relief valve

1шт.

4

BODY, high pressure pilot relief, not serviced separately, order valve, 398705R91

1шт.

5

398731R1

SPRING

high pressure relief valve

1шт.

6

530575R91

SHIM KIT

PACKAGE, relief valve shim service, consists of (4) shim 530571R1 (NSS), (4) shim 530572R1 (NSS), (2) shim 530573R1 (NSS), (1) shim 530574R1 (NSS)

1шт.

7

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

8

398707R1

GUIDE

valve spring stop

1шт.

9

398708R1

STOP

pilot relief valve

1шт.

10

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

ASSY, oil

1шт.
