Запчасти Case IH 656 (F-10) - HYDRAULICS, HYDRAULIC PUMP, CESSNA, 12 OR 17 GPM (07) - HYDRAULIC SYSTEM

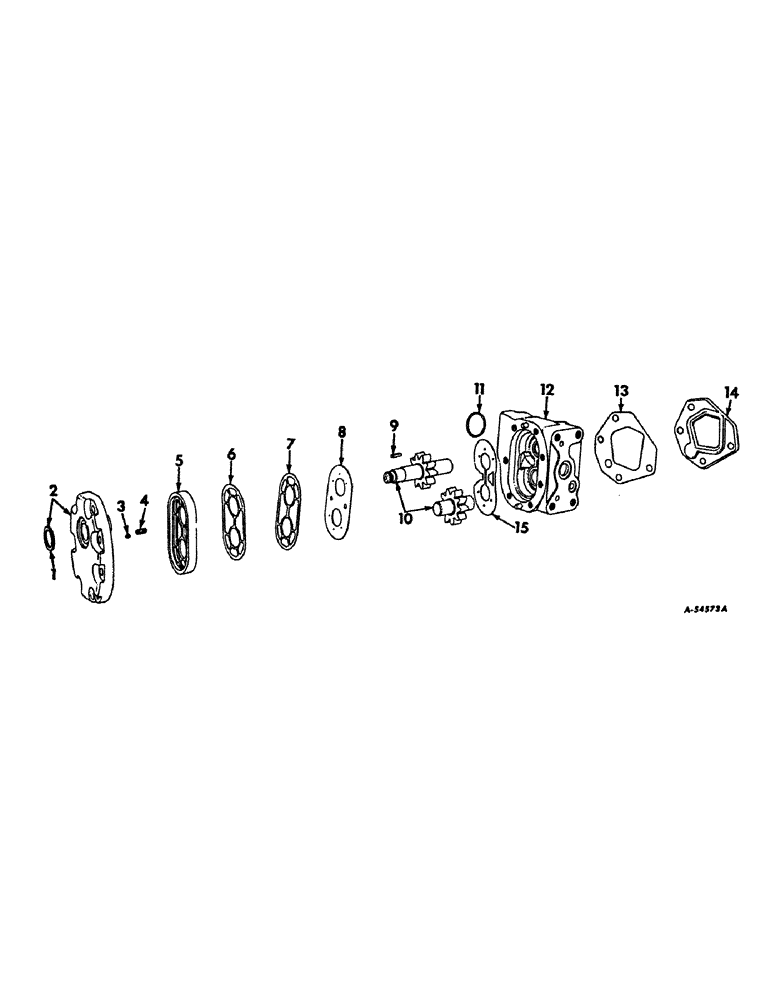

Схема запчастей Case IH 656 - (F-10) - HYDRAULICS, HYDRAULIC PUMP, CESSNA, 12 OR 17 GPM (07) - HYDRAULIC SYSTEM
6
1
15
11
14
5
13
3
4
9
8
12
2
7
10

Артикул

Название

Примечание

Количество

373964R94

PUMP

ASSY, hydraulic, 12 GPM, optional with 374483R96

1шт.

373966R94

HYDRAULIC PUMP

PUMP ASSY, hydraulic, 17 GPM, optional with 527755R91

1шт.

1949292C1

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

1шт.

1949293C1

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

1

373244R91

SEAL

SEAL, pump shaft oil

1шт.

2

COVER ASSY, pump, not serviced separately order pump assembly

1шт.

3

16007R1

BALL

7/32 cr-stl

1шт.

4

383663R1

VALVE SPRING

SPRING, ball check

1шт.

5

SEAL, diaphragm, not serviced separately order o-ring and gasket package

1шт.

6

GASKET, protector, not serviced separately order o-ring and gasket package

1шт.

7

GASKET, back-up, not serviced separately order o-ring and gasket package

1шт.

8

DIAPHRAGM, pressure, not serviced separately order o-ring and gasket package

1шт.

9

539239R1

KEY

5/32 x 13/32 sq-parallel

1шт.

10

PACKAGE, drive and driven gear, not serviced separately order pump assembly

1шт.

11

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, suction port

1шт.

12

BODY, w/bushings, pump, not serviced separately order pump assembly

1шт.

13

71265C1

GASKET

GASKET, implement pump rear cover, not serviced separately order o-ring and gasket package

1шт.

14

371524R1

LARGE PLATE

COVER, implement pump rear

1шт.

15

PLATE, thrust, not serviced separately order o-ring and gasket package

1шт.

373969R94

GASKET KIT

PACKAGE, hydraulic pump o-ring and gasket service

1шт.

Consists of (1) diaphragm 371555R2 (NSS), (1) gasket 371558R1 (NSS), (1) gasket 371559R1 (NSS), (1) gasket 371560R1 (NSS), (1) oil seal 373244R91, (1) o-ring 252739R1, (1) o-ring 252483R1, (1) o-ring 272739R1, (1) o-ring 254691R1, (1) o-ring 352221R1, (1) plate 397824R1 (NSS), (1) seal 371556R1 (NSS)

1шт.

Выбрано товаров: 21
