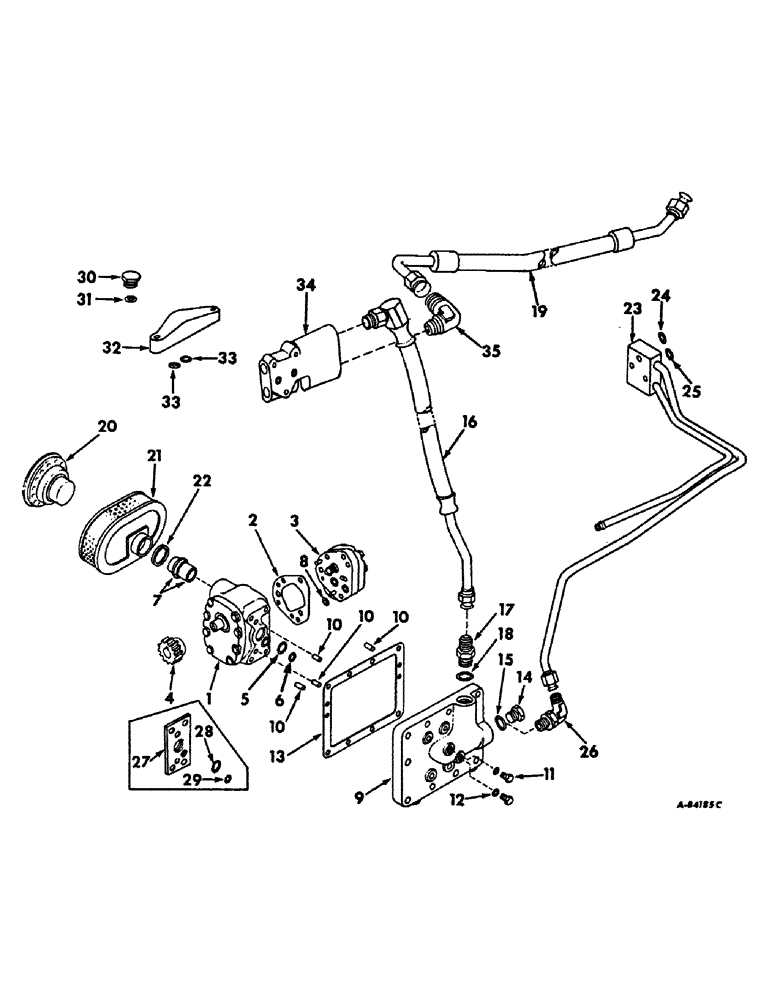

Запчасти Case IH 656 (F-06) - HYDRAULICS, HYDRAULIC POWER SUPPLY, INTERNATIONAL GEAR DRIVE TRACTORS (07) - HYDRAULIC SYSTEM

1

527755R91

PUMP

ASSY, hydraulic gear, 17 GPM, will work for 370880R94, Thompson, for components see list of parts under details of hydraulic pump, optional with 373966R94

1шт.

1

373966R94

HYDRAULIC PUMP

PUMP ASSY, hydraulic gear, 17 GPM, Cessna, for components see list of parts under details of hydraulic pump, optional with 527755R91

1шт.

1

1949292C1

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

1шт.

1

1949293C1

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

52999D

WASHER

GASKET, pump mounting screw

4шт.

179862

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

SCREW, 7/16-14 x 1-1/2 hex-hd cap

4шт.

2

371543R2

GASKET

hydraulic gear pump, tractors with draft control

1шт.

3

391351R93

HYDRAULIC PUMP

PUMP ASSY, hyd gear, 9 GPM, Cessna, for components see list of parts under details of hydraulic pump, optional with 395229R92, all tractors with draft control, 2656 tractors w/backhoe, fast cycle loader, or 110 mower and with or without draft control

1шт.

3

1949290C1

REMAN-HYD PUMP

Reman For New PN 391351R93

1шт.

3

1949291C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

395229R92

PUMP

ASSY, hyd gear, 9 GPM, Thompson, for components see list of parts under details of hydraulic pump, optional with 391351R93, all tractors w/backhoe, fast cycle loader, or 110 mower and with or without draft control

1шт.

3

1949290C1

REMAN-HYD PUMP

Reman for new P/N 395229R92

1шт.

3

1949291C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

4шт.

4

373711R1

PINION

GEAR, pump drive, 15 teeth, tractors with hi-capacity power supply but with out 1000 RPM independent PTO

1шт.

4

393471R1

GEAR

pump drive, 21 teeth, all tractors except those with 1000 RPM independent PTO

1шт.

4

389148R1

GEAR, pump drive, 17 teeth, tractors w/1000 RPM independent PTO and hi-capacity power supply

1шт.

4

393351R1

GEAR, pump drive, 26 teeth, tractors w/1000 RPM independent PTO

1шт.

19263R1

LOCK NUT,Hex, 5/8" - 18

NUT, 5/8-18 ESNA stop, pump drive shaft

1шт.

5

254691R1

O-RING,-211, 70 Duro, .796" ID x .139" Thk

13/16 x 1-1/16 x 1/8, pump pressure port large

1шт.

6

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32, pump pressure port small

1шт.

7

395334R91

TUBE

PACKAGE, pump suction tube service, all tractors except those with 1000 RPM independent PTO or hi-capacity power supply (Replaces 398334R91)

1шт.

7

395335R92

TUBE

PACKAGE, pump suction tube sevice, tractors w/1000 RPM independent PTO or hi-capacity power supply

1шт.

8

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

9/16 x 11/16 x 1/16

1шт.

9

388404R21

FLANGE ASSY, pump mounting, tractors with hi-capacity power supply but with out 1000 RPM independent PTO

1шт.

9

389149R92

FLANGE ASSY, pump mounting, tractors w/1000 RPM independent PTO and hi-capacity power supply

1шт.

NLS

NO LONGER SERVICED

10шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

9

393470R21

FLANGE ASSY, pump mounting, tractors w/1000 RPM independent PTO

1шт.

179846

LEVER

10шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

10

384116R1

PIN

pump mounting flange dowel

4шт.

11

9410358

PLUG

9/16-18 str thd-o-ring boss

2шт.

12

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

13

370892R2

GASKET

pump mtg flange, light

1шт.

13

370893R2

GASKET

pump mtg flange, heavy

1шт.

14

9410360

PLUG

7/8-14 str thd-o-ring boss, tractors w/o draft control

1шт.

15

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

16

396280R1

HYDRAULIC HOSE

PIPE & HOSE ASSY, hyd power supply

1шт.

17

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

UNION, 1-1/16-12 C-Z 37 deg hyd flared tube short swivel

2шт.

18

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 x 1-1/16 x 7/64

4шт.

19

396281R1

PIPE & HOSE ASSY, open center valve transfer

1шт.

20

386121R92

VALVE

ASSY, filter

1шт.

21

388084R93

HYDRAULIC OIL FILTER

PACKAGE, oil filter element service, all tractors except those with 1000 RPM independent PTO or hi-capacity power supply

1шт.

21

388084R93GV

HYDRAULIC OIL FILTER

Value, Hydraulic Oil Filter

1шт.

21

388085R92

FILTER, ELEMENT

PACKAGE, oil filter element service, tractors w/1000 RPM independent PTO or hi-capacity power supply

1шт.

22

388082R1

O-RING,1.424" ID x 0.099" Width

RING, element seal

1шт.

23

397326R1

MANIFOLD

ASSY, hyd housing power supply, tractors with draft control

1шт.

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

3шт.

24

355965R1

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

15/16 x 1-3/16 x 1/8

1шт.

25

356005R1

O-RING,1.109" ID x 0.139" Width

1-1/8 x 1-3/8 x 1/8

1шт.

26

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 deg hyd flared tube adj str thd 90 deg, tractors with draft control

1шт.

27

389151R1

PLATE, pump mounting, tractors w/1000 RPM independent PTO and hi-capacity power supply

1шт.

179864

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, 7/16-14 x 1-2/4 hex-hd cap

2шт.

28

254691R1

O-RING,-211, 70 Duro, .796" ID x .139" Thk

13/16 x 1-1/16 x 1/8, pump mounting spacer large, tractors w/1000 RPM independent PTO and hi-capacity power supply

1шт.

29

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32, pump mounting spacer small, tractors w/1000 RPM independent PTO and hi-capacity power supply

1шт.

30

379144R1

PLUG, hyd transfer block, 2656 tractors w/o draft control attachment

1шт.

31

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

poppet relief valve, 2656 tractors w/o draft control attachment

1шт.

32

378030R2

FLANGE, hydraulic diverting, 2656 tractors w/o draft control attachment

1шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

3/8-16 x 1-5/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

33

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32, 2656 tractors w/o draft control attachment

2шт.

34

VALVE ASSY, power steering, for components see list of parts under detail of power steering flow divider valve, section J

1шт.

35

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

1-1/16-12 C-Z 37 deg hyd flared tube adj str thd 90 deg

1шт.
