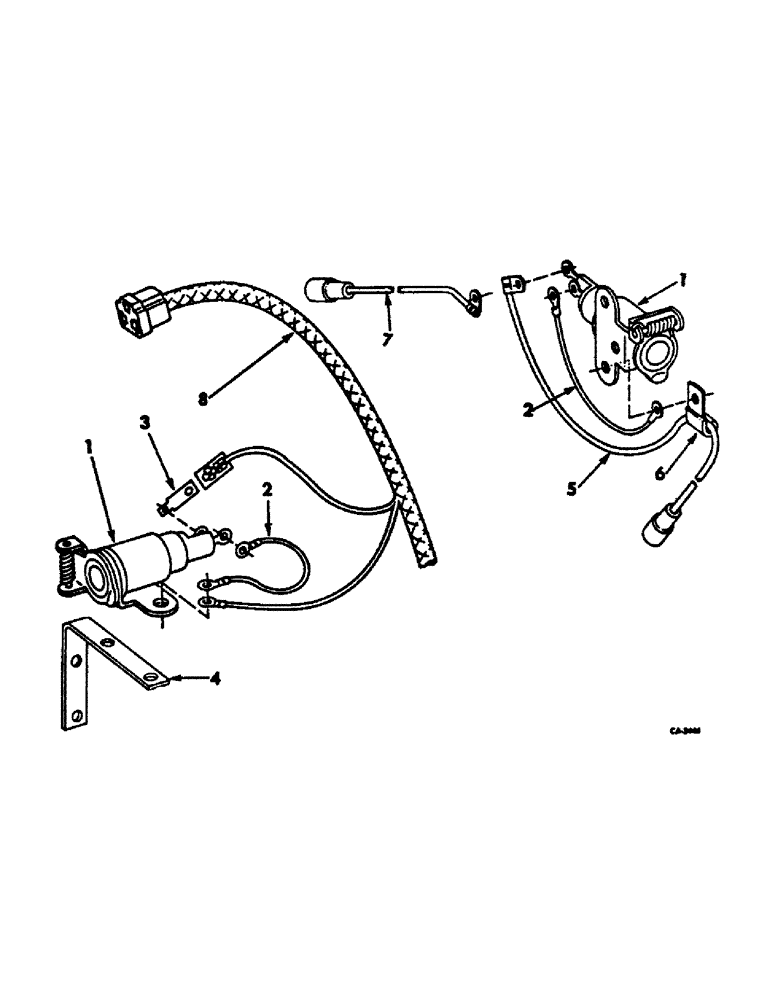

Запчасти Case IH 656 (G-43) - ELECTRICAL SYSTEM, ELECTRIC BREAKAWAY SOCKET (06) - ELECTRICAL SYSTEMS

537084R91

PARTS ACCESSORY, electric breakaway connector socket, Farmall tractors, consists of all unmarked parts and those marked unit A

1шт.

Service parts for electric breakaway connector socket, International tractors, consists of all unmarked parts and those marked unit B

1шт.

Service parts for electric breakaway connector socket, Farmall tractors equipped w/hydraulic rear manifold w/lever actuated hydraulic couplers & not equipped w/deluxe fender attachment, International tractors w/crown fenders & hydraulic rear manifold

1шт.

Consists of all unmarked parts and those marked unit C

1шт.

Service parts for electric breakaway connector socket, Farmall tractors without deluxe fender attachment & hydraulic rear manifold, International tractors w/crown fenders & not equipped w/hydraulic rear manifold

1шт.

Consists of all unmarked parts and those marked unit D

1шт.

Service parts for electric breakaway connector socket, Farmall tractors equipped w/deluxe fender attachment, consists of all unmarked parts and those marked unit E

1шт.

1

362002R92

SOCKET

ASSY, electric breakaway

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2 used units B and E 1/4"-20, G5

1шт.

64022H

SCREW, 8-32 x 5/16 C-Z slt-fil-hd mach

2шт.

180018

CONNECTING LINK

SCREW, 1/4-20 x 5/8 hex-hd cap, 2 used unit D

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2 used units B and E Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 2 used units B, D and E 1/4"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

2

404395R1

CABLE

ASSY, breakaway connector, Serial Range: socket-ground

1шт.

3

384396R1

SPADE TERMINAL,Male

TERMINAL, breakaway connector, units A, C and D

1шт.

4

537081R1

BRACKET, electric breakaway connector socket, units A and C

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4 used units A and C 1/4"-20, G5

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 hex-hd cap, 2 used unit C

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 x 5/8 hex-hd cap, 2 used unit A

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2 used units A and C Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 4 used units A and C 1/4"

1шт.

5

406688R1

CABLE

ASSY, breakaway connector, units A and B

1шт.

6

395228R1

CABLE CLIP

CLIP, breakaway connector cable, units A and B

1шт.

7

405877R1

HARNESS

CABLE ASSY, harness junction to breakaway connector socket, unit E

1шт.

8

406693R2

HARNESS

ASSY, combination light, refer to starting and lighting listing, this section

1шт.
