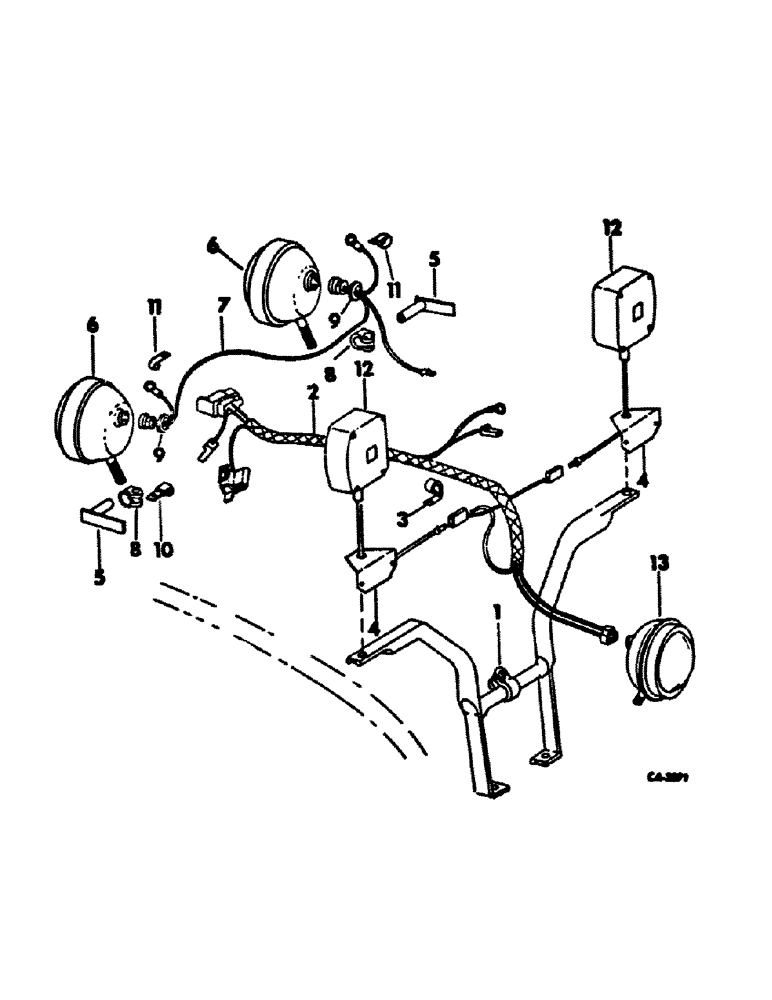

Запчасти Case IH 656 (G-42) - ELECTRICAL SYSTEM, WIRING FOR TRACTORS WITH CROWN FENDERS AND FRONT MOUNTED LIGHTS (06) - ELECTRICAL SYSTEMS

1

535867R1

SUPPORT ASSY, warning light

1шт.

2

406693R2

HARNESS

ASSY, rear light

1шт.

3

370821R1

CLIP,ELECTRICAL

CLIP, rear light harness

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

4

533091R1

BRACKET, reflector mtg

2шт.

5

536570R1

POST ASSY, head light

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 C-Z hex-hd cap

4шт.

365503R1

SPACER

light mtg

2шт.

397384R1

SCRAPER RING

SPACER, post mtg

4шт.

6

391005R91

HEADLIGHT

LIGHT, head

2шт.

102637

NUT,1/2"-13, G5

2шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

1/2 C-Z ext

2шт.

7

536572R1

CABLE ASSY, head light

1шт.

8

350920R1

CLAMP

2шт.

9

120408

GROMMET,1/2" ID x 1 1/16" x .188", Diag Cut

head lamp cable

2шт.

10

375389R1

CLIP, head light cable

2шт.

11

366460R1

CABLE CLIP

CLIP, head light cable

2шт.

12

FLASHING WARNING LIGHT, refer to starting and lighting listing

2шт.

13

COMBINATION REAR LIGHT, refer to starting and lighting listing

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.
