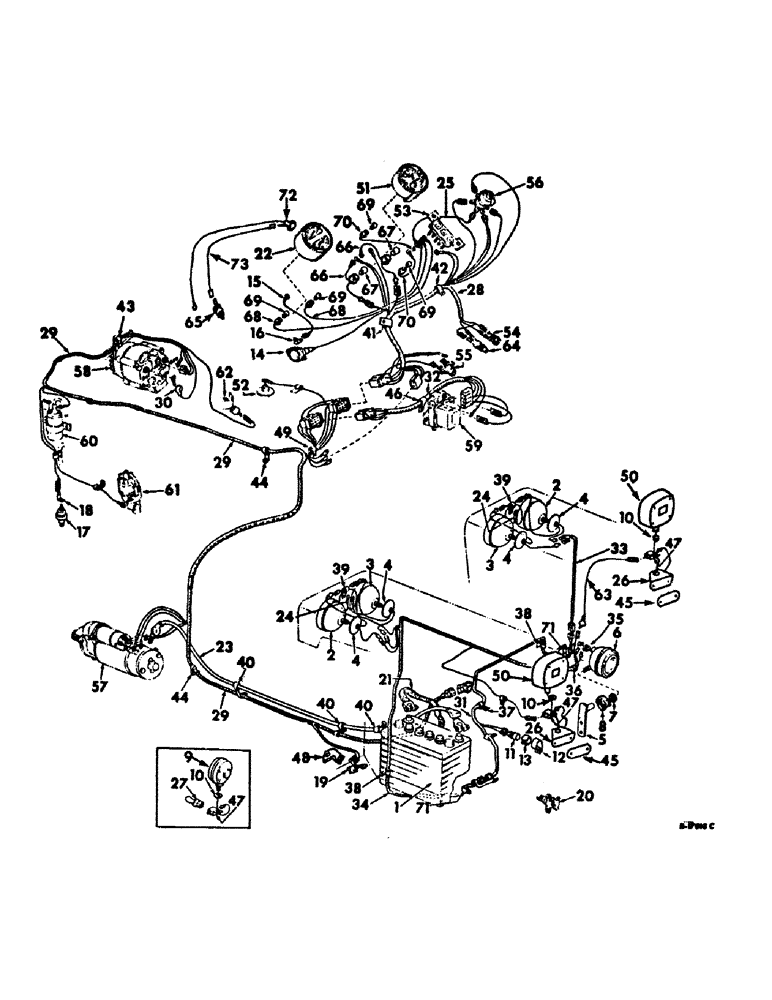

Запчасти Case IH 656 (G-22) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, INTERNATIONAL GASOLINE ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

1

395587R1

BATTERY, Prestolite 24H-A8Z-12 volt, hydrostatic tractors

1шт.

1

394106R91

BATTERY, Prestolite 2418X 12 volt, gear drive tractors

1шт.

2

388945R91

HEADLIGHT

LIGHT ASSY, head

2шт.

3

388946R91

LIGHT

ASSY, flood

2шт.

4

388947R1

RETAINER

head light

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

5

396740R1

SUPPORT ASSY, rear lamp bracket

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

2шт.

6

387729R91

LIGHT

ASSY, combination rear & tail

1шт.

102637

NUT,1/2"-13, G5

1шт.

Q5035

WASHER

1 x 17/32 x .059

1шт.

7

365503R1

SPACER

combination rear light

1шт.

8

350920R1

CLAMP

combination rear light

1шт.

9

394129R91

LIGHT

ASSY, flashing warning, only serviceable items are lamp, 9417866 lens, amber, Guide, 396585R1 or lens, red, Guide, 397442R1 or lens, amber, Deitz, 899280R1 or lens, red, Deitz, 899279R1, Serial Range: -14467

1шт.

120371

NUT,1/2"-20, G5

1шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

1/2 C-Z ext-tooth lock

1шт.

10

394262R1

WASHER

GASKET, flashing warning light

2шт.

11

394132R91

FLASHER UNIT

FLASHER, warning light

1шт.

12

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

13

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

14

399232R91

LIGHT

ASSY, hydrostatic control

1шт.

15

404399R1

CABLE ASSY, hydrostatic control light ground, will work for 379418R91

1шт.

134530

NUT,Hex, #6 - 32

2шт.

159341

SCREW,Cross Pan Hd, #6 - 32 x 5/8"

6-32 x 5/8 C-Z cr-rec pan hd mach

2шт.

446130

WASHER,#8

11/64 x 13/32 x 18 ga C-Z

2шт.

16

365501R1

TERMINAL CONNECTOR

TERMINAL, hydrostatic control light cable

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

17

392249R92

SWITCH

engine oil pressure

1шт.

18

365501R1

TERMINAL CONNECTOR

TERMINAL, oil pressure switch angle

1шт.

19

382728R91

SWITCH

neutral starting, hydrostatic tractors, gear drive tractors order brace, 534843R2 and switch 532682R1, Serial Range: -14374

1шт.

19

532682R1

SWITCH

ASSY, neutral starting, Start Serial: 14375

1шт.

20

SOCKET ASSY, electric breakaway connector, refer to electric breakaway socket listing this section

1шт.

21

378326R91

CABLE

STRAP ASSY, Serial Range: battery-ground

1шт.

22

SPEEDOMETER, tachometer assy, refer to engine controls and instruments listing, section H

1шт.

23

395940R1

CABLE

ASSY, battery to solenoid switch

1шт.

24

404393R1

CABLE

ASSY, headlamp to ground junction, will work for 374490R91

2шт.

25

405222R1

CABLE

ASSY, lighting switch to junction block, will work for 376869R91

1шт.

26

535863R1

BRACKET ASSY, reflector mounting, Serial Range: -12569

2шт.

27

405236R1

CABLE ASSY, warning light jumper, Serial Range: -12569

1шт.

28

405249R1

HARNESS

ASSY, instrument panel, will work for 381661R91

1шт.

29

405289R1

HARNESS

ASSY, main, will work for 397829R2

1шт.

29

405906R1

HARNESS ASSY, main cable, gear drive tractors w/magnetic pulse ignition

1шт.

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable

1шт.

371036R1

CLIP

cable

1шт.

109084

NUT,1/4"-20, G5

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

16558R1

WASHER

17/64 x 5/8 x .036

1шт.

30

399470R1

BOOT

INSULATOR, terminal cover boot

1шт.

31

405261R3

HARNESS

ASSY, fender RH, will work for 39595R1

1шт.

32

405266R1

HARNESS

ASSY, voltage regulator, will work for 397828R1

1шт.

33

395941R1

CABLE ASSY, RH fender

1шт.

34

406695R1

HARNESS ASSY, fender LH, will work for 405262R1 and 396276R1

1шт.

35

377105R1

CONNECTOR, ELEC

CONNECTOR, combination rear lamp

1шт.

36

125157

GROMMET, combination rear light cable

2шт.

37

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, fender harness

1шт.

38

370383R1

CLIP

LH & RH fender cable

2шт.

39

362121R1

CLIP

head light and floodlight cables

2шт.

109084

NUT,1/4"-20, G5

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

40

370383R1

CLIP

panel cable harness angle

3шт.

41

384557R1

CLIP

panel cable harness

1шт.

42

370383R1

CLIP

panel cable harness, angle

1шт.

16558R1

WASHER

17/64 x 5/8 x .036

1шт.

43

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, main harness

1шт.

44

362666R1

CLIP

main harness, right angle

2шт.

45

533092R1

REFLECTOR

, Start Serial: 14468

2шт.

163162

SCREW,Self Tap, Cross Pan Hd, #8 - 18 x 1/2"

no. 8-18 x 1/2 C-Z cr-rec

4шт.

46

362121R1

CLIP

voltage regulator harness

1шт.

109084

NUT,1/4"-20, G5

1шт.

179973

SCREW, 1/4-20 x 5/8 hex-hd cap

1шт.

16558R1

WASHER

17/64 x 5/8 x .036

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

47

358986R1

CABLE CLIP

CLIP, warning light cable

2шт.

48

528209R1

BRACE, assy, neutral starting switch, gear drive tractors, order brace, 534843R2 and switch, 532682R1, Serial Range: -14374

1шт.

48

534843R2

BRACE, assy, neutral starting switch, gear drive tractors, Start Serial: 14375

1шт.

49

362123R1

CLIP

voltage regulator harness

1шт.

50

537328R91

LIGHT

ASSY, square warning, Start Serial: 14468

2шт.

120371

NUT,1/2"-20, G5

2шт.

135629

GATHERING CHAIN

1/2 C-Z ext-tooth lock

2шт.

51

CLUSTER ASSY, gauge, refer to engine controls and instruments listing, section H

1шт.

52

SENDING UNIT ASSY, electric fuel gauge, refer to fuel tank supports and piping listing, section E

1шт.

53

BLOCK ASSY, junction, refer to engine controls and instruments listing, section H

1шт.

54

SWITCH ASSY, key, refer to engine controls and instruments listing, section H

1шт.

55

SWITCH ASSY, push button, refer to engine controls and instruments listing, section H

1шт.

56

SWITCH ASSY, lighting, refer to engine controls and instruments listing, section H

1шт.

57

CRANKING MOTOR, refer to cranking motor listing, this section

1шт.

58

ALTERNATOR-GENERATOR, refer to alternator generator and connections listing, this section

1шт.

59

VOLTAGE REGULATOR, refer to alternator generator and connections listing, this section

1шт.

60

IGNITION COIL, refer to spark plugs, coil, cables and distributor listing, eng-2 parts catalog

1шт.

61

DISTRIBUTOR ASSY, refer to spark plugs, coil, cables and distributor listing, eng-2 parts catalog

1шт.

62

CARBURETOR, refer to carburetor listing, eng-2 parts catalog

1шт.

63

535866R1

CABLE ASSY, warning light, Start Serial: 14468

1шт.

64

FUSE HOLDER, refer to engine control and instruments listing, section H

1шт.

65

539280R1

SWITCH

ASSY, transmission oil temp. warning, hydrostatic tractors, Start Serial: 14898

1шт.

66

376856R1

SOCKET ASSY, oil and amp Tellite

2шт.

67

9412348

BULB,C2B, #257, 14V

LIGHT, no. 257 12-volt, oil and amp Tellite flasher

2шт.

68

363838R91

CABLE

SOCKET ASSY, instrument light

2шт.

69

9417863

BULB,C2F, #1895, 14V

LIGHT, no. 1895 12-volt

4шт.

70

376853R91

SOCKET

ASSY, instrument light

2шт.

71

358896R1

CLIP, fender harness

2шт.

72

392441R91

LIGHT

ASSY, transmission oil temp. warning, hydrostatic tractors, Start Serial: 14898

1шт.

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12 volt

1шт.

73

539279R1

CABLE ASSY, oil temp. warning switch, hydrostatic tractors, Start Serial: 14898

1шт.
