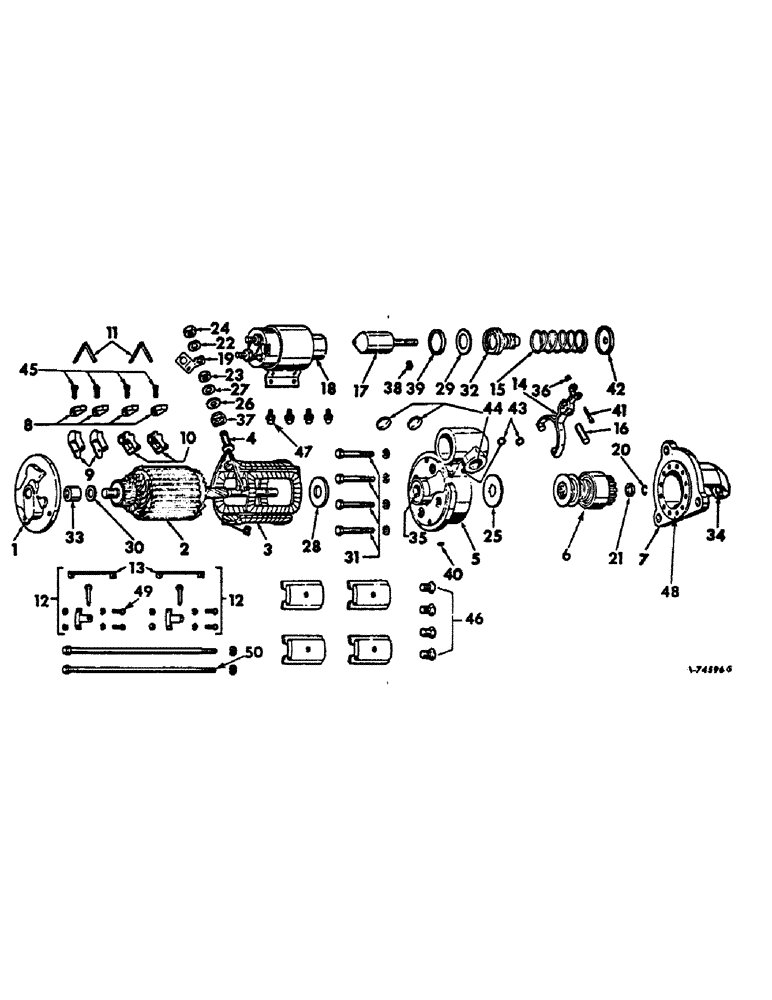

Запчасти Case IH 656 (G-11) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO REMY, DIESEL ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

1113187

SPARE PART MOTOR ASSY, cranking, Farmall gear drive tractors, order cranking motor, 1113198

1шт.

1113201

SPARE PART MOTOR ASSY, cranking, 400121R92, tractors w/hydrostatic drive

1шт.

1113198

X

MOTOR ASSY, cranking 396574R91, gear drive tractors 12 volt

1шт.

108014A1R

REMAN-STARTER

For Gear Drive Trans Only

1шт.

108014A1C

CORE-STARTER

Return Number

1шт.

104206A1R

REMAN-STARTER

10 Tooth, Hydrostatic Trans Only

1шт.

104206A1C

CORE-STARTER

Return Number

1шт.

1109360R

9 Tooth, Gear Drive Trans Only. 666, 686 IH

1шт.

1109360C

Return Number

1шт.

1

1945617

HOLDER

FRAME, w/bushing wick, 1916439, commutator end, used w/1113201

1шт.

1

1969018

FRAME, commutator end, used w/1113198

1шт.

2

1956903

ARMATURE

ARMATURE

1шт.

3

1945612

COIL ASSY.

COIL ASSY, field, 4 coils

1шт.

1914873

INSULATOR

INSULATOR, field coil

2шт.

4

1933879

TERMINAL CONNECTOR

STUD, terminal

1шт.

5

1942241

HOUSING

HOUSING ASSY, lever, composed of (1) bushing 1933999, (2) plug 9411375, (1) plug 274590, (1) plug 9419572, (1) oil seal 1867150, (1) wick 1947350

1шт.

6

1970544

CLUTCH

DRIVE, clutch motor, used w/1113201

1шт.

6

1965788

DRIVE ASSY.

DRIVE, clutch motor, used w/1113198

1шт.

7

1947803

HOUSING

HOUSING, w/bushing, 1955994 plug and wick, 1916439, drive, used w/1113201

1шт.

7

1965775

HOUSING, drive, used w/1113198

1шт.

8

1906987

BRUSH

BRUSH

4шт.

9

1940477

HOLDER

HOLDER, brush ground

2шт.

10

1950546

HOLDER

HOLDER, brush insulated

2шт.

11

1945620

SPRING

SPRING, brush, 2 for hydrostatic, 4 for gear drive tractors

1шт.

12

1945923

PACKAGE

PACKAGE, brush support

2шт.

13

1930694

CABLE

LEAD, ground

2шт.

14

1942245

LEVER

LEVER ASSY, shift

1шт.

15

1948521

SPRING

SPRING, lever

1шт.

16

1942255

STUD

SHAFT, lever

1шт.

17

1942250

PLUNGER

PLUNGER ASSY

1шт.

18

1115510

SOLENOID SWITCH

SWITCH ASSY, solenoid

1шт.

601924C1

BOLT,3/8"

SCREW, 3/8-16 x 1 twelve pt-hd

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120622

NUT,#8-32

NUT, #8-32

1шт.

19

1942249

CONNECTOR, ELEC

CONNECTOR CONNECTOR, switch

1шт.

20

1928022

SNAP RING

RING, pinion stop retainer

1шт.

21

1928021

COLLAR

COLLAR, pinion stop

1шт.

22

110730

LOCK WASHER

WASHER, terminal stud lock

1шт.

23

805258

NUT

NUT, terminal stud, 5/32 in. thick, will work for 134566

1шт.

24

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

NUT, , Terminal stud outer Jam, 3/8"-16, G5

1шт.

25

821453

WASHER

brake, between lever housing & motor drive

1шт.

26

1950029

WASHER

WASHER, insulating terminal stud

1шт.

27

805790

WASHER

WASHER, terminal stud plain

1шт.

28

NLS

NO LONGER SERVICED

WASHER, space, between lever housing & armature

1шт.

29

1942259

WASHER

WASHER, retainer spring

1шт.

30

1914842

WASHER

WASHER, commutator end space

1шт.

31

122077

PLUG

drive housing attaching

4шт.

32

1942257

BOOT

BOOT

1шт.

33

1872678

BUSHING

BUSHING, commutator end

1шт.

34

1955994

BUSHING

BUSHING, drive end

1шт.

35

1933999

BUSHING

BUSHING, lever housing

1шт.

36

1938376

RING, SNAP

RING SNAP RING, lever attaching pin snap

1шт.

37

1931783

INSULATOR

BUSHING, insulating terminal stud

1шт.

38

9415235

RING, SNAP

RING SNAP RING, spring retainer snap

1шт.

39

1942256

RETAINER

RETAINER, spring 1-13/64 in. hole

1шт.

40

809593

PIN

PIN, drive housing dowel, used w/1113198

1шт.

41

1942253

PIN

PIN, lever attaching

1шт.

42

1942282

PIN

RETAINER, spring, 13/32 in. hole

1шт.

43

9419572

PLUG

PLUG, lever housing expansion

2шт.

44

9411375

PLUG

PLUG, lever housing expansion

2шт.

45

1959514

SCREW

SCREW, brush attaching

4шт.

46

(Not used this application)

1шт.

47

(Not used this application)

1шт.

48

(Not used this application)

1шт.

49

(Not used this applicaiton)

1шт.

50

809763

BOLT

BOLT, thru, used w/1113198

2шт.

50

1851669

BOLT

BOLT, thru, used w/1113201

2шт.

27279R1

12 PT SCREW,Flg, 3/8" - 16 x 1"

BOLT, 3/8-16 x 1 flanged, 12-point, grade 8 phos., holds the starter to the tractor

3шт.
