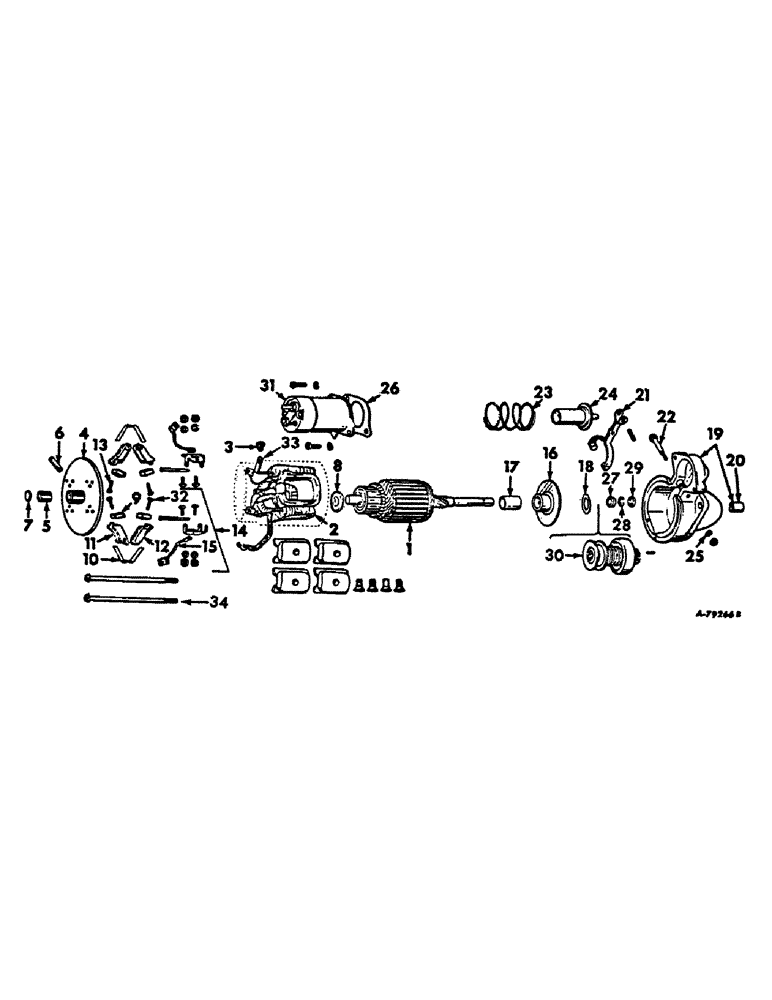

Запчасти Case IH 656 (G-09) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO REMY, GASOLINE ENGINE TRACTORS - 1107543 (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1107543
STARTING MOTOR
MOTOR ASSY, cranking, 378335R91, International gear drive tractors w/serial no. & below, Farmall gear drive tractors w/serial no. 36466 & below
1шт.
1107854
SPARE PART MOTOR ASSY, cranking 396459R93, International hydrostatic tractors w/serial no. & above, Farmall hydrostatic tractors w/serial no. 36467 & above
1шт.
1108344
SPARE PART MOTOR ASSY, cranking 396523R93, International gear drive tractors w/serial no. & above, Farmall gear drive tractors w/serail no. 22599 and above
1шт.
104189A1R
REMAN-STARTER
10MT With Mounted -- Delco 1107229, 1107444 And 1108299
1шт.
104189A1C
CORE-STARTER
Return Number
1шт.
104193A1R
REMAN-STARTER
Remanufactured Starter
1шт.
104193A1C
CORE-STARTER
Return Number
1шт.
104197A1R
REMAN-STARTER
656 International Tractor, 656 Farmall Tractor, Both (1/66-12/73), 2656International Industrial Tractor (1/63-12/71)
1шт.
104197A1C
CORE-STARTER
Return Number
1шт.
104204A1R
REMAN-STARTER
25MT Heavy Duty ---- Delco 1108657
1шт.
104204A1C
CORE-STARTER
Return Number
1шт.
120622
NUT,#8-32
NUT, #8-32
2шт.
1
1947296
ARMATURE
ARMATURE, used w/1107854
1шт.
1
1947353
FRAME
ARMATURE, used w/1108344
1шт.
2
1956384
COIL
COIL ASSY, field, used w/1107854
1шт.
2
1943504
COIL
COIL ASSY, field, used w/1108344
1шт.
3
1955946
GROMMET
GROMMET, in field frame, used w/1107854
1шт.
3
1966391
GROMMET
GROMMET, in field frame, used w/1108344
1шт.
4
1940385
FUNNEL
FRAME, commutator end, used w/1107854
1шт.
4
1928966
FRAME
FRAME, commutator end, used w/1108344
1шт.
5
1872678
BUSHING
BUSHING, commutator end, used w/1107854
1шт.
6
1919851
WICK
WICK, commutator end, used w/1107854
1шт.
7
810819
PLUG
PLUG, expansion
1шт.
8
1914842
WASHER
WASHER, commutator end brake
1шт.
9
1946434
BRUSH, COMMUTATOR
BRUSH BRUSH, used w/1107854
4шт.
9
1906945
COMMUTATOR BRUSH
BRUSH, used w/1108344
4шт.
10
1926622
VALVE SPRING
SPRING, brush
2шт.
11
1940477
HOLDER
HOLDER, ground brush
2шт.
12
1926618
HOLDER
HOLDER, insulated brush
2шт.
13
1959514
SCREW
SCREW, brush attaching, used w/1107854
4шт.
13
1967747
SCREW
SPARE PART SCREW, brush attaching, used w/1108344
4шт.
14
1928015
BRACKET
PACKAGE, brush holder support
2шт.
15
1926605
ELECTRICAL WIRE
WIRE LEAD, brush ground
2шт.
16
820149
PLATE
PLATE, center bearing
1шт.
17
1938596
BUSHING
BUSHING, center bearing, used w/1107854
1шт.
17
820148
BUSHING
BUSHING, center bearing, used w/1108344
1шт.
18
NLS
NO LONGER SERVICED
brake, between center brg & motor drive
1шт.
19
1966914
HOUSING
HOUSING, drive
1шт.
20
1862383
BUSHING
BUSHING, drive end
1шт.
21
1951567
LEVER
LEVER, shift
1шт.
22
1814529
STUD, shift lever, use w/1108344
1шт.
23
1958679
SPRING
SPRING, plunger return
1шт.
24
1941113
PLUNGER
PLUNGER, solenoid switch
1шт.
25
1953479
WASHER, shift lever stud sealing lock
2шт.
26
1952427
GASKET
GASKET, between switch and housing
1шт.
27
1928021
COLLAR
COLLAR, drive end pinion stop
1шт.
28
1928022
SNAP RING
RING, drive end pinion stop retainer
1шт.
29
1928023
WASHER
WASHER, drive end thrust
1шт.
30
1851427
DRIVE
DRIVE, motor, for cranking motors, 1107854 & 1108344
1шт.
30
1939109
PINION
DRIVE, motor, for cranking motor 1107543 (Replaces 1939909)
1шт.
31
1114356
SOLENOID,Starter
SWITCH, solenoid
1шт.
120622
NUT,#8-32
NUT, #8-32
1шт.
121841
LOCK WASHER,#8
WASHER, LOCK, #8
1шт.
601924C1
BOLT,3/8"
SCREW, 3/8-16 x 1 twelve PT hd
3шт.
124829
JAM NUT,Hex, 3/8" - 16, Gr 5
NUT, Jam, 3/8"-16, G5
1шт.
110730
LOCK WASHER
WASHER, 3/8 light lock
1шт.
121841
LOCK WASHER,#8
WASHER, LOCK, #8
2шт.
4927853
INSULATION, field, used w/1108344
4шт.
32
(Not used in this application)
1шт.
33
(Not used in this application)
1шт.
34
1960908
BOLT (SPREADER)
BOLT, thru, use w/1107854
2шт.
34
A41342
BOLT
BOLT, thru, use w/1108344
2шт.
Выбрано товаров: 62
