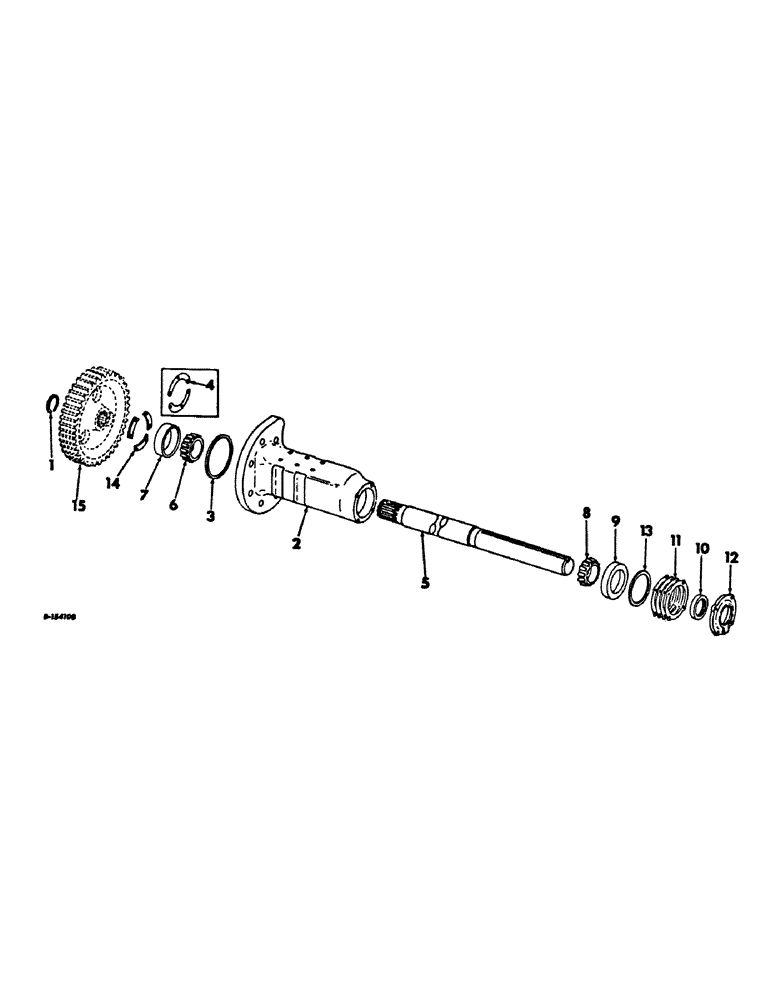

Запчасти Case IH 656 (B-19) - POWER TRAIN, REAR AXLE, FARMALL TRACTORS, INTERNATIONAL ROW CROP TRACTORS (03) - POWER TRAIN

1

327059R1

SNAP RING,#275, 2.594, Ext

RING, external retaining, used on Farmall tractors, Serial Range: -16953

2шт.

1

327059R1

SNAP RING,#275, 2.594, Ext

RING, external retaining, used on Farmall tractors, Start Serial: 16954

4шт.

1

327059R1

SNAP RING,#275, 2.594, Ext

RING, external retaining, used on International row crop tractors

4шт.

2

530951R1

CARRIER, rear axle LH, for service replacement of carriers, 388106R1 & 390828R1, on Farmall tractors, also order, (1) o-ring 610412C1, (1) retainer 530957R1, (3) retainer 394646R1, (6) screws 179816, (1) shim 530953R1, (1) shim 530955R1, (1) shim 530956R1, Serial Range: -45068

1шт.

2

530951R1

CARRIER, rear axle LH, for service replacement of carriers, 388106R1 & 390828R1, on International row crop tractors, Serial Range: -14084

1шт.

Also order, (1) o-ring 610412C1, (1) retainer 530957R1, (3) retainer 394646R1, (6) screws 179816, (1) shim 530953R1, (1) shim 530955R1, (1) shim 530956R1

1шт.

2

530952R1

CARRIER, rear axle RH, for service replacement of carriers, 388107R1 & 390829R1, on Farmall tractors, Also order, (1) o-ring 610412C1, (1) retainer 530957R1, (3) retainer 394646R1, (6) screws 179816, (1) shim 530953R1, (1) shim 530954R1, (1) shim 530955R1, Serial Range: -45068

1шт.

2

530952R1

CARRIER, rear axle RH, for service replacement of carriers, 388107R1 & 390829R1, on International row crop tractors, Serial Range: -14084

1шт.

Also order, (1) o-ring 610412C1, (1) retainer 530957R1, (3) retainer 394646R1, (6) screws 179816, (1) shim 530953R1, (1) shim 530954R1, (1) shim 530955R1, (1) shim 530956R1

1шт.

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 hex-hd cap

14шт.

3

388108R1

O-RING,6.234" ID x 0.139" Width

RING, rear axle carrier sealing

2шт.

4

388109R1

RETAINER

rear axle inner brg, Farmall tractors, Serial Range: -8799

4шт.

324235R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 twelve point-hd cap

12шт.

5

388110R2

SHAFT

AXLE, rear, Farmall tractors, International row crop tractors

2шт.

5

389249R2

AXLE, rear, Farmall and International row crop tractors equipped with 108 inch wide rear axle or dual rear wheels

2шт.

6

ST794A

BEARING ASSY,71.44mm ID x 36.25mm W

rear axle inner cone

2шт.

7

13273D

BEARING, CUP,2.8755" ID x 5.001" OD x 1.452"

BEARING, rear axle inner cup

2шт.

8

ST761A

ROLLER BEARING,71.45mm ID x 28.57mm W

BEARING ASSY, rear axle outer cone

2шт.

9

ST856

CUP

BEARING, rear axle outer cup

2шт.

10

377788R91

OIL SEAL

SEAL, rear axle oil

2шт.

11

388112R1

SHIM

carrier cap, .005, Farmall tractors (or as required), Serial Range: -45068

4шт.

11

388112R1

SHIM

carrier cap, .005, International row crop tractors (or as required), Serial Range: -14084

4шт.

11

530953R1

SHIM

carrier cap, .005, Farmall tractors (or as required), Start Serial: 45069

4шт.

11

530953R1

SHIM

carrier cap, .005, International row crop tractors (or as required), Start Serial: 14085

4шт.

11

388113R1

SHIM

carrier cap, .007, Farmall tractors (or as required), Serial Range: -45068

4шт.

11

388113R1

SHIM

carrier cap, .007, International row crop tractors (or as required), Serial Range: -14084

4шт.

11

530954R1

SHIM

carrier cap, .007, Farmall tractors International row crop tractors (or as required), Start Serial: 45069

4шт.

11

530954R1

SHIM

carrier cap, .007, International row crop tractors (or as required), Start Serial: 14085

4шт.

11

388114R1

SHIM

carrier cap, .012, Farmall tractors International row crop tractors (or as required), Serial Range: -45068

4шт.

11

388114R1

SHIM

carrier cap, .012, International row crop tractors (or as required), Serial Range: -14084

4шт.

11

530955R1

SHIM

carrier cap, .012, Farmall tractors (or as required), Start Serial: 45069

4шт.

11

530955R1

SHIM

carrier cap, .012, International row crop tractors (or as required), Start Serial: 14085

4шт.

11

388115R1

SHIM

carrier cap, .029, Farmall tractors (or as required), Serial Range: -45068

2шт.

11

388115R1

SHIM

carrier cap, .029, International row crop tractors (or as required), Serial Range: -14084

2шт.

11

530956R1

SHIM

carrier cap, .029, Farmall tractors (or as required), Start Serial: 45069

2шт.

11

530956R1

SHIM

carrier cap, .029, International row crop tractors (or as required), Start Serial: 14085

2шт.

12

393119R1

RETAINER, rear axle outer brg, also order o-ring, 393120R1 for Farmall tractors, Serial Range: -9932

2шт.

12

393119R1

RETAINER, rear axle outer brg, also order o-ring, 393120R1 for Farmall tractors, Serial Range: -45068

2шт.

12

393119R1

RETAINER, rear axle outer brg, also order o-ring, 393120R1 for International tractors, Serial Range: -14084

2шт.

12

530957R1

RETAINER, rear axle outer brg, Farmall tractors, Start Serial: 45069

2шт.

12

530957R1

RETAINER, rear axle outer brg, International tractors, Start Serial: 14085

2шт.

NLS

NO LONGER SERVICED

8шт.

13

393120R1

O-RING,0.139" Thk x 4.359" ID, -245, Cl 5, 75 Duro

4-3/8 x 4-5/8 x 1/8, Farmall tractors, Serial Range: -45068

2шт.

13

393120R1

O-RING,0.139" Thk x 4.359" ID, -245, Cl 5, 75 Duro

4-3/8 x 4-5/8 x 1/8, International tractors, Serial Range: -14084

2шт.

13

610412C1

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

4-5/8 x 4-7/8 x 1/8, Farmall tractors, Start Serial: 45069

2шт.

13

610412C1

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

4-5/8 x 4-7/8 x 1/8, International tractors, Start Serial: 14085

2шт.

14

394646R1

RETAINER

rear axle inner brg, Farmall tractors, Start Serial: 8800

6шт.

14

394646R1

RETAINER

rear axle inner brg, all International row crop tractors

6шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12шт.

15

BULL GEAR, refer to differential listing

1шт.
