Запчасти Case IH 656 (B-17) - POWER TRAIN, DIFFERENTIAL (03) - POWER TRAIN

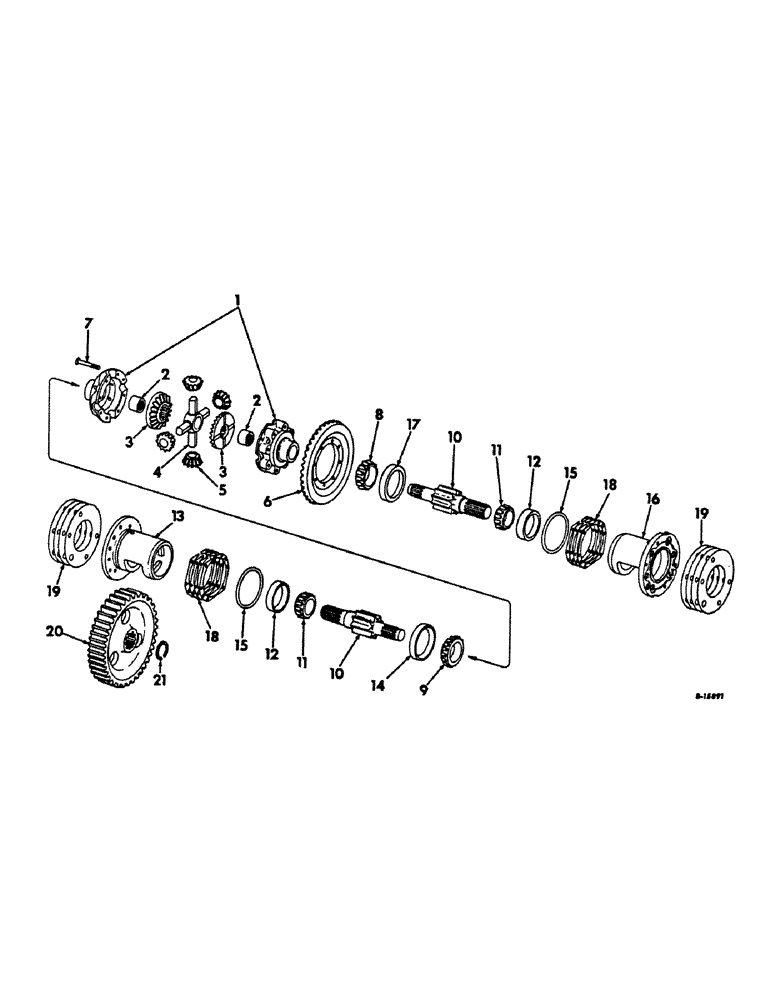

Схема запчастей Case IH 656 - (B-17) - POWER TRAIN, DIFFERENTIAL (03) - POWER TRAIN
3
13
15
10
4
14
3
11
7
18
18
9
6
2
12
19
1
17
5
11
2
12
20
19
8
10
21
16
15

Артикул

Название

Примечание

Количество

1

388089R91

CASE ASSY, differential

1шт.

2

389634R91

NEEDLE BEARING

differential case

2шт.

3

388092R1

GEAR

differential bevel, 28 T

2шт.

4

388093R1

U-JOINT SPIDER

SPIDER, differential

1шт.

5

360961R1

GEAR

PINION, differential bevel, 15 T

4шт.

6

98862C1

GEAR

bevel drive, 49 T, hydrostatic drive tractors (Replaces 396710R1)

1шт.

6

98864C1

GEAR

bevel drive, 49 T, Farmall tractors, International row crop tractors, western special tractors and International tractors w/18.4-30 rear tires (Replaces 388094R1)

1шт.

6

395730R1

GEAR, bevel drive, 49T, International gear drive tractors

1шт.

7

588770R1

BOLT,7/16" - 20 x 3.50"

differential case

8шт.

7

381915R1

NUT,7/16"-20, G8

differential case bolt

8шт.

8

ST2114

BEARING ASSY

differential RH cone, gear drive tractors

1шт.

8

ST2120

BEARING ASSY,2.875" ID x 4.625" OD x 1.1875"

differential RH cone, hydrostatic drive tractors

1шт.

9

ST2120

BEARING ASSY,2.875" ID x 4.625" OD x 1.1875"

differential LH cone, gear drive tractors

1шт.

9

ST2114

BEARING ASSY

differential LH cone, hydrostatic drive tractors

1шт.

10

388285R1

SHAFT

bull pinion and brake

2шт.

10

395808R1

SHAFT, bull pinion and brake, Farmall hi-clear tractors with seed plate drive

2шт.

11

ST2116

TAPERED BEARING,2.375" ID x 4.4375" OD x 1.1875" W

BEARING ASSY, bull pinion shaft cone

2шт.

12

13363D

TAPERED BEARING

BEARING, bull pinion shaft cup

2шт.

13

388095R1

CAGE, bull pinion shaft bearing LH, gear drive tractors

1шт.

13

396221R1

CAGE, bull pinion shaft bearing LH, hydrostatic drive tractors

1шт.

560170R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

SCREW, 7/16-14 x 1-1/4 hex-hd cap

6шт.

14

ST856

CUP

BEARING, differential LH cup, gear drive tractors

1шт.

14

ST986

TAPERED BEARING,133.35mm OD x 22.28mm W

BEARING, differential LH cup, hydrostatic drive tractors

1шт.

15

3046994R1

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

5-5/8 x 5/7/8 x 1/8

2шт.

16

388096R1

CAGE, bull pinion shaft bearing RH, gear drive tractors

1шт.

16

396222R1

CAGE

bull pinion shaft bearing RH, hydrostatic drive tractors

1шт.

560170R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

SCREW, 7/16-14 x 1-1/4 hex-hd cap

6шт.

17

ST986

TAPERED BEARING,133.35mm OD x 22.28mm W

BEARING, differential RH cup, gear drive tractors

1шт.

17

ST856

CUP

BEARING, differential RH cup, hydrostatic drive tractors

1шт.

18

392772R1

SHIM

bull pinion shaft brg cage, .005 (or as required)

4шт.

18

392773R1

SHIM

bull pinion shaft brg cage, .007 (or as required)

4шт.

18

392774R1

SHIM

bull pinion shaft brg cage, .0149 (or as required)

4шт.

18

392775R1

SHIM

bull pinion shaft brg cage, .0299 (or as required)

4шт.

19

388100R1

SHIM

bull pin shaft brg ret, .005 (or as required)

4шт.

19

388101R1

SHIM

bull pin shaft brg ret, .007 (or as required)

4шт.

19

388102R1

SHIM

bull pin shaft brg ret, .012 (or as required)

2шт.

19

388103R1

SHIM

bull pin shaft brg ret, .029 (or as required)

2шт.

20

388104R2

GEAR, bull, 66 T

2шт.

21

327059R1

SNAP RING,#275, 2.594, Ext

RING, external retaining, used on Farmall tractors, Serial Range: -16953

2шт.

21

327059R1

SNAP RING,#275, 2.594, Ext

RING, external retaining, used on Farmall tractors, Start Serial: 16954

4шт.

21

327059R1

SNAP RING,#275, 2.594, Ext

RING, external retaining, 2 used on all International tractors

4шт.

388105R1

BUSHING, bull gear, Farmall tractors, Serial Range: -16953

2шт.

Выбрано товаров: 42
