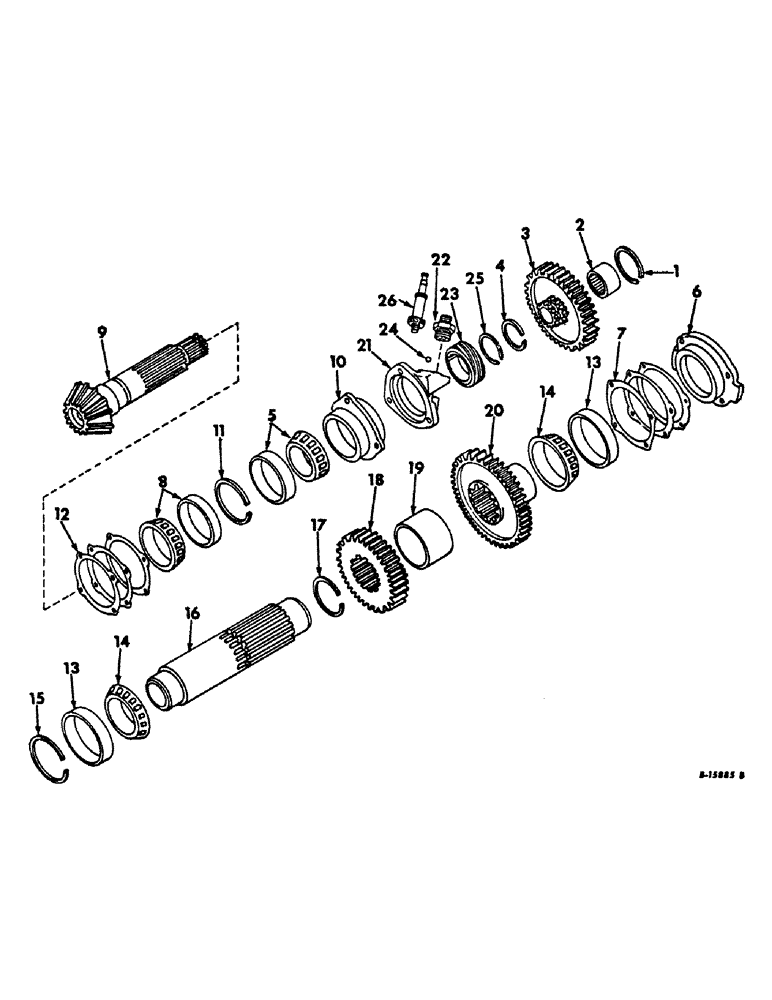

Запчасти Case IH 656 (B-15) - POWER TRAIN, RANGE TRANSMISSION, HYDROSTATIC DRIVE TRACTORS (03) - POWER TRAIN

1

359141R1

RING, SNAP

RING, transmission main shaft pilot bearing snap

1шт.

2

359173R91

BEARING, ROLLER, CYL,34.99mm ID x 62.43mm OD x 27.5mm W

transmission main shaft pilot roller

1шт.

3

396964R1

GEAR, high-low sliding, 47T

1шт.

4

396648R1

RING, transmission main shaft rear bearing snap

1шт.

5

396640R91

TAPERED BEARING

BEARING ASSY, bevel pinion main shaft front

1шт.

6

388153R1

CAGE, countershaft front bearing

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

4шт.

7

388157R1

SHIM

countershaft front brg, .030

1шт.

7

388155R1

SHIM

countershaft front brg, .012

1шт.

7

388156R1

SHIM

countershaft front brg, .007

1шт.

7

388157R1

SHIM

countershaft front brg, .005

1шт.

8

ST2138

BEARING ASSY

bevel pinion main shaft rear

1шт.

9

396733R1

GEAR

SHAFT, transmission main, 13 teeth

1шт.

10

396963R1

CAGE, main shaft rear brg

1шт.

11

(Not used in this application)

1шт.

12

360569R1

SHIM

main shaft rear brg cage, .007

1шт.

12

360570R1

SHIM

main shaft rear brg cage, .015

1шт.

12

360571R1

SHIM

main shaft rear brg cage, .030

1шт.

12

363751R1

SHIM

main shaft rear brg cage, .003

1шт.

13

374167R1

CUP ASSY.

BEARING, countershaft cup

2шт.

14

G15215

ROLLER BEARING

BEARING ASSY, countershaft cone

2шт.

15

659676R1

SNAP RING,3.156", Int, #315

Ring, Snap, , countershaft rear brg, optional with 406754R1 3.156", Int, #315

1шт.

15

406754R1

RING

countershaft rear bearing snap, optional w/659676R1

1шт.

16

396812R1

COUNTERSHAFT, transmission

1шт.

16

401166R1

COUNTERSHAFT, transmission, tractor w/cotton picker mounting attachment

1шт.

17

375374R1

RING

countershaft snap

1шт.

18

396810R1

GEAR

low speed driving, 33T

1шт.

19

396814R1

SPACER, constant mesh and low speed driving gear

1шт.

20

396811R1

GEAR, constant mesh, 53 teeth

1шт.

21

398959R11

HOUSING ASSY, speedometer driven gear

1шт.

22

398941R1

SLEEVE, speedometer driven gear

1шт.

23

398942R1

GEAR, speedometer drive, 12T

1шт.

24

16008R1

BALL,1/4" Dia, Steel

1/4 cr-stl

1шт.

25

644771R1

SNAP RING,#225, Ext

Ring, Snap, #225, Ext

1шт.

26

398954R1

GEAR

speedometer driven, 14T

1шт.

398954r1 is 14 teeth, tooth dia .924", length 3.44". 399553r1 is 15 teeth, tooth dia .924", length 3.44". 368245r12 is 13 teeth, tooth dia .618", length 1.755". 11/27/01 BW CAM

1шт.

398960R1

BUSHING, speedometer driven gear housing

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, 7/16-14 x 2-1/4 hex-hd cap

1шт.

179868

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

SCREW, 7/16-14 x 2-1/4 hex-hd cap

2шт.
