Запчасти Case IH 656 (B-09) - POWER TRAIN, MULTIPLE VALVE BODY, TRACTORS WITH HYDROSTATIC DRIVE (03) - POWER TRAIN

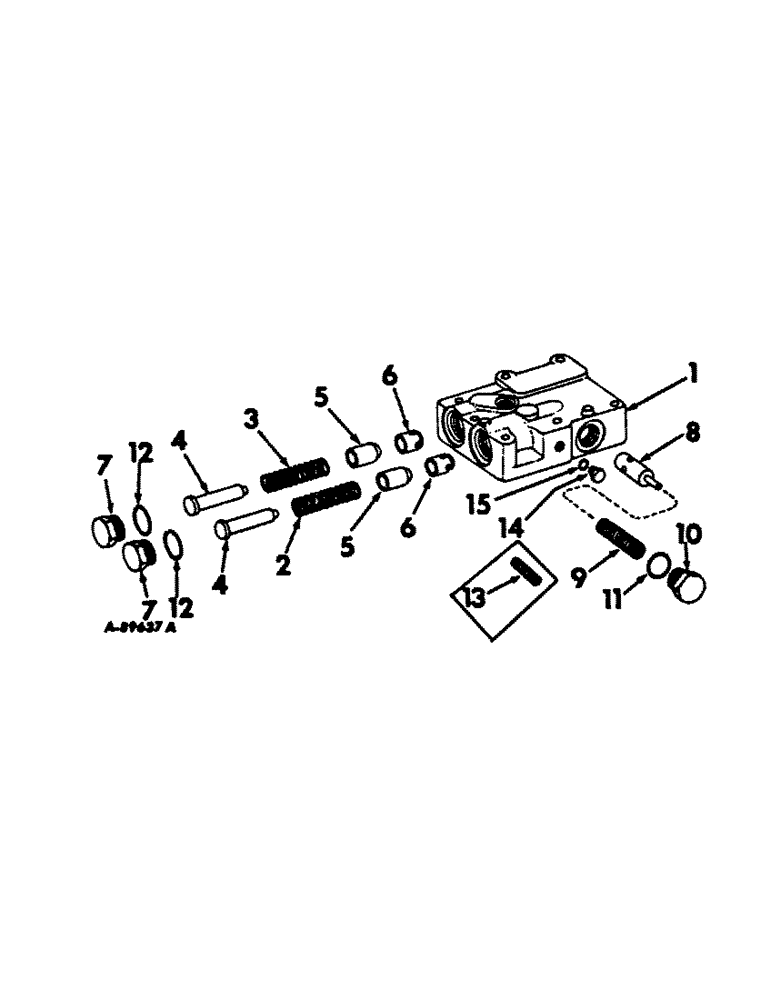

Схема запчастей Case IH 656 - (B-09) - POWER TRAIN, MULTIPLE VALVE BODY, TRACTORS WITH HYDROSTATIC DRIVE (03) - POWER TRAIN
6
14
8
12
6
10
4
15
5
7
7
11
13
1
12
3
9
4
5
2

Артикул

Название

Примечание

Количество

1

396127R1

BODY

multiple valve

1шт.

2

396128R1

SPRING

poppet valve heavy

1шт.

3

396129R1

SPRING

poppet valve light

1шт.

4

396130R1

NO LONGER SERVICED

PIN, poppet valve piston

2шт.

5

396131R1

NO LONGER SERVICED

VALVE, poppet

2шт.

6

396132R1

BUSHING

poppet valve

2шт.

7

396133R1

PLUG

valve retaining

2шт.

8

529318R1

VALVE

cooler by-pass, for service repalcement of by-pass valve, 396134R1 in multiple valve bodies w/inner and outer springs, also order spring 529319R1

1шт.

9

529319R1

SPRING

valve cooler by-pass, for service replacement of outer spring, 396135R1 in multiple valve bodies w/inner and outer springs, also order valve, 529318R1

1шт.

10

396136R1

PLUG

cooler by-pass valve

1шт.

11

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube, cooler by-pass valve plug

1шт.

12

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube, valve retaining plug

2шт.

13

396137R1

SPRING

SRING, cooler by-pass inner, order spring, 529319R1 and valve, 529318R1

1шт.

14

9410356

PLUG

7/16-20 C-Z str thd-o-ring boss, charge pressure check plug

1шт.

15

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Charge pressure check plug

1шт.

Выбрано товаров: 15
