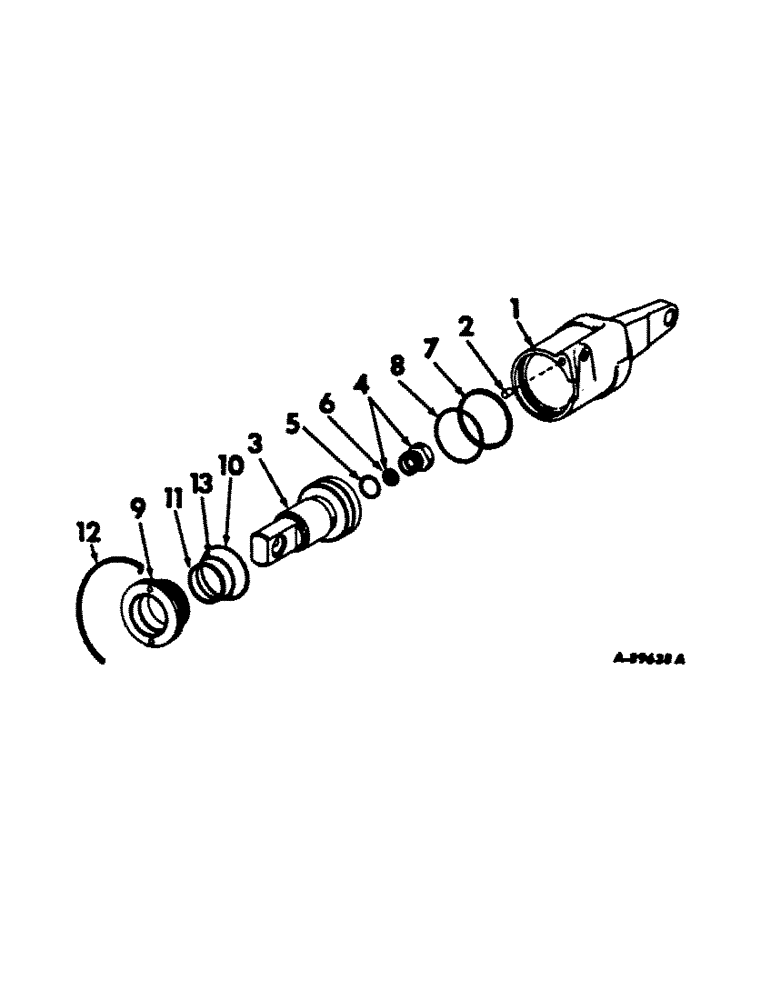

Запчасти Case IH 656 (B-08) - POWER TRAIN, MOTOR SERVO CYLINDER, TRACTORS WITH HYDROSTATIC DRIVE (03) - POWER TRAIN

1

396111R11

BODY

ASSY, motor control cylinder

1шт.

2

PLUG, press fit, not serviced separately, order body assy, 396111R11

1шт.

3

396112R1

PISTON

motor control

1шт.

4

531285R91

PLUG

ASSY, fixed orifice, replaces 396113R11

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, fixed orifice

1шт.

6

529376R1

STRAINER ELEMENT

STRAINER, orifice, replaces 397261R1

1шт.

7

379959R1

RING,Square, 3.17mm Thk x 58mm ID

piston sealing

1шт.

8

364145R1

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

2-1/8 x 2-15/16 x 3/32, piston sealing

1шт.

9

396114R1

GUIDE

motor piston

1шт.

10

382782R1

O-RING,0.103" Thk x 2.3" ID, -141, Cl 5, 75 Duro

2-5/16 x 2-1/2 x 3/32, motor piston guide

1шт.

11

406461R1

RING

guide sealing inner, will work for 396115R1

1шт.

12

396116R1

ELECTRICAL WIRE

RING, retaining

1шт.

13

3045524R1

O-RING,0.103" Thk x 1.862" ID, -134, Cl 5, 75 Duro

1-7/8 x 2-1/16 x 3/32, motor piston guide inner

1шт.

401292R92

SEALING RING

PACKAGE, motor servo seal ring, consist of ref nos. 5, 7, 8, 10, 11, 13 and ring, 396109R1

1шт.
