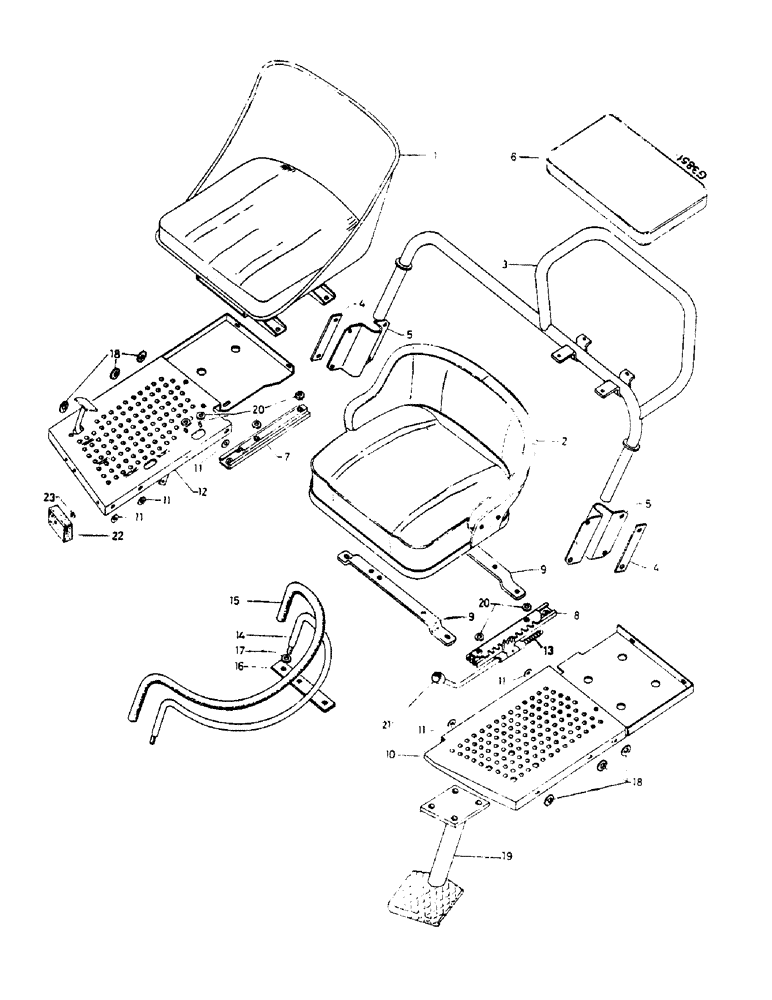

Запчасти Case IH 654 (246) - SEAT, PASSENGER SEAT, PLATFORM (09) - CHASSIS

1

REF

INSTRUCTION

SEAT "Sable" see Figure: 250

1шт.

1

REF

INSTRUCTION

SEAT "Grammer" see Figure: 253

1шт.

2

3058215R91

SEAT, standard version 257

1шт.

2

3057323R92

SEAT

standard version 257

1шт.

3134535R1

CUSHION, SEAT

"Sable"

1шт.

3134536R1

SEAT

REST back "Sable"

1шт.

3

3057851R11

SPARE PART FRAME passenger

1шт.

4

3057856R1

BRACE

STRUT reinforcement

4шт.

5

3057855R1

HOLDER

seat frame

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

103321

LOCK WASHER,3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

6

3057854R91

CUSHION ASSY.

seat

1шт.

103320

LOCK WASHER,5/16"

4шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

7

3057325R91

SLIDE

GUIDE seat, RH "Sable"

1шт.

103320

LOCK WASHER,5/16"

4шт.

43362

NUT,M8 x 1.25, Cl 10

4шт.

7

3058234R91

PILOT VALVE

GUIDE sliding seat, RH "Grammer"

1шт.

931167R1

SCREW

SPARE PART slotted 8 x 20 mm

2шт.

931088R1

BOLT,M8 x 20mm

S M8 x 20 mm

2шт.

103320

LOCK WASHER,5/16"

4шт.

43362

NUT,M8 x 1.25, Cl 10

2шт.

8

3057324R91

PILOT VALVE

GUIDE sliding seat, LH, with: 13, 21 "Sable"

1шт.

103320

LOCK WASHER,5/16"

4шт.

43362

NUT,M8 x 1.25, Cl 10

4шт.

8

3058233R91

PILOT VALVE

GUIDE sliding seat, LH, with: 13, 21 "Grammer"

1шт.

931167R1

SCREW

SPARE PART slotted 8 x 20 mm

2шт.

931088R1

BOLT,M8 x 20mm

S M8 x 20

2шт.

80681

LOCK WASHER,5/16"

4шт.

43362

NUT,M8 x 1.25, Cl 10

2шт.

9

3057326R1

SUPPORT

SPARE PART seat

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

103321

LOCK WASHER,3/8"

1шт.

10

3057327R3

FOOTREST

PLATFORM, LH

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

11

3058249R1

WASHER

5шт.

12

3131076R21

PEDAL

PLATFORM, RH, with accelerator pedal

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

13

3131354R1

SPRING

SPRING "Grammer"

1шт.

13

3136573R1

SPRING

"Sable"

1шт.

14

716537R1

FRAME

seat for crown type fenders

1шт.

102637

NUT,1/2"-13, G5

2шт.

15

716539R1

HOSE

PIPE rubber

1шт.

16

716538R1

PLATE

reinforcement

2шт.

15001R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 7/8", Gr 2

1шт.

103320

LOCK WASHER,5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

17

23554R1

WASHER

2шт.

18

3058302R1

RUBBER WASHER

rubber

6шт.

19

3058203R11

FOOT BOARD

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

103321

LOCK WASHER,3/8"

4шт.

102635

NUT,3/8"-16, G5

4шт.

20

3058250R1

WASHER

6шт.

21

3131742R1

KNOB

"Grammer"

1шт.

21

3136572R1

KNOB

"Sable"

1шт.

22

3131162R1

RUBBER

SPARE PART STOP

1шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

1шт.

231-1435

LOCK NUT,5/16"-18, GB

1шт.

23

Q398

WASHER

1шт.
