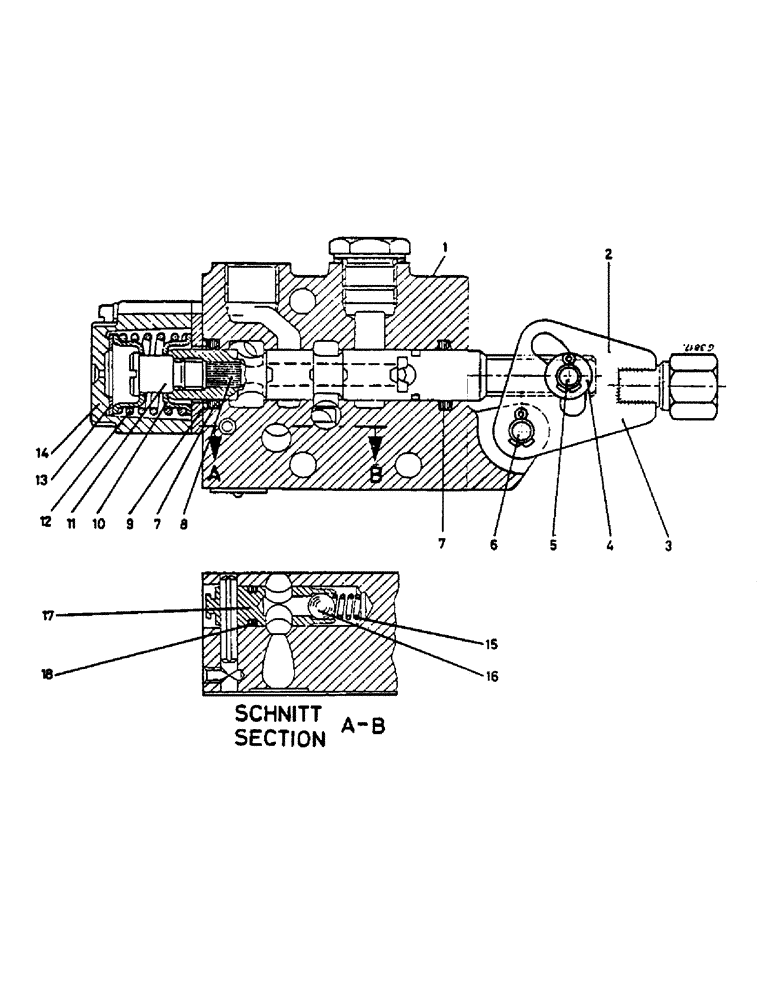

Запчасти Case IH 654 (303) - ADDITIONAL CONTROL VALVE, DOUBLE ACTING (08) - HYDRAULICS

3059907R91

VALVE

control, for double acting power cylinders

1шт.

1

3078446R91

VALVE

control, with: 7-18

1шт.

2

3078447R91

LEVER

shifter cpt

1шт.

3

3078448R1

LEVER

1шт.

4

934058R1

WASHER,8.4mm ID x 15mm OD x 1.6mm Thk

2шт.

5

3078449R1

PIN

1шт.

934059R1

PIN, SPLIT (COTTER)

SPARE PART 2 x 15 mm

2шт.

6

3078450R1

PIN

1шт.

934059R1

PIN, SPLIT (COTTER)

SPARE PART 2 x 15 mm

2шт.

7

3139085R1

SEAL

2шт.

8

3078430R1

PLUG

1шт.

9

3078429R1

WASHER

1шт.

10

3078433R1

BOLT

CAP spring

2шт.

11

3078431R1

BOLT

special

1шт.

12

3078435R1

SPRING

1шт.

13

3078434R1

WASHER

1шт.

14

3078436R1

WASHER

COVER

1шт.

931395R1

BOLT

S M6x35 mm

2шт.

933987R1

LOCK WASHER,M6

2шт.

15

3078439R1

SPRING

1шт.

16

934056R1

BALL,9mm Dia

steel

1шт.

17

3078437R1

PISTON

1шт.

932148R1

LOCK PIN,M5 x 28, Slotted

1шт.

18

3078438R1

O-RING

SEAL

1шт.
