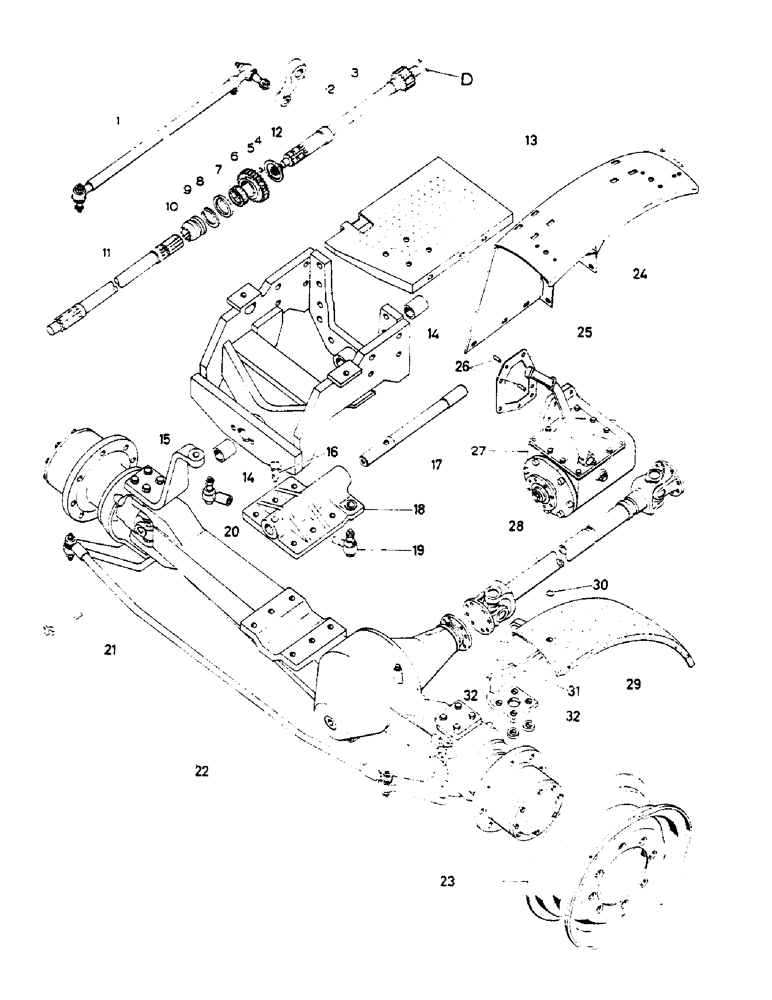

Запчасти Case IH 654 (198) - FOUR WHEEL DRIVE (06) - POWER TRAIN

1

NSS

NOT SOLD SEPARAT

DRAG LINK, see Figure: 202

1шт.

For mechanical steering

1шт.

2

787856R1

ARM, drop

1шт.

For mechanical steering

1шт.

3

3134196R1

SHAFT

PTO, rear, 553/654, D = 30 mm dia.

1шт.

3

3142402R1

SHAFT

PTO, rear, D = 40 mm dia.

1шт.

4

3134194R1

WASHER,40mm ID x 60mm OD x 1mm Thk

thrust

1шт.

5

16006R1

BALL

steel

1шт.

6

3134198R1

GEAR

idler

1шт.

7

3134195R1

NEEDLE BEARING CAGE,40mm ID x 45mm OD x 26.8mm W

needle

1шт.

8

3134189R1

THRUST WASHER

5.5 mm (.217")

1шт.

8

3134190R1

THRUST WASHER

6.1 mm (.240")

1шт.

8

3134191R1

THRUST WASHER

6.8 mm (.268")

1шт.

8

3134192R1

THRUST WASHER

7.5 mm (.295")

1шт.

8

3134193R1

THRUST WASHER

8.1 mm (.319")

1шт.

9

933075R1

SNAP RING,M40, Ext

CIRCLIP

3шт.

10

3057025R2

COUPLING

PTO

1шт.

11

3134428R2

SHAFT

PTO, front

1шт.

12

3057317R91

NEEDLE BEARING CAGE

1шт.

13

787855R2

PLATFORM

LH

1шт.

14

3057064R1

BUSHING

2шт.

15

3131833R93

SUPPORT

front axle, with: 14

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

2шт.

16

3059875R3

BOLT

1шт.

114507

JAM NUT,Jam, 5/8"-11, G5

1шт.

17

3142569R1

SHAFT

PIVOT, front axle

1шт.

18

3142568R1

SUPPORT

BEARING, pivot front axle

1шт.

716786R1

NO LONGER SERVICED

S M20 x 50 mm

4шт.

3142216R1

BOLT,Hex, M20 x 2.5 x 65mm, Cl 8.8

S M20 x 60 mm

2шт.

933714R1

WASHER

F 20 mm

6шт.

3142217R1

NUT

M M20

2шт.

19

3141529R91

BALL JOINT

1шт.

For power steering

1шт.

934072R1

LOCK WASHER,Serr, M31

tooth 30 mm

1шт.

934070R1

THIN NUT,Thin, M30 x 1.5

M M30

1шт.

20

3141531R91

JOINT

ball

1шт.

For power steering

1шт.

21

3142336R91

ROD

PTO shifting, see Figure: 164 and 170

1шт.

22

NSS

NOT SOLD SEPARAT

AXLE, front, see Figure: 210

1шт.

23

3134970R1

WHEEL

RIM front, for tires 9-24 AS

2шт.

23

3134971R1

WHEEL

RIM front, for tires 9-24 AS, 10-24 AS

2шт.

23

3141618R91

WHEEL

RIM front, for tires 10-24 AS, 11-24 AS, 12-24 AS

2шт.

24

3139470R11

FENDER

rear, LH, crown type 553/654/724

1шт.

Version with safety frame

1шт.

11-36AS, 11-38AS, 12-36AS, 12-38AS, 14-30AS, 14-34AS

1шт.

24

3142140R91

FENDER

rear, LH, crown type, 824

1шт.

Version with safety frame

1шт.

12-38AS, 14-30AS, 14-34AS, 15-30AS

1шт.

24

3142200R91

FENDER, rear, LH, crown type

1шт.

For France only

1шт.

Version without safety frame

1шт.

11-36AS, 11-38AS, 12-36AS, 12-38AS, 14-30AS, 14-34AS

1шт.

24

3142203R91

FENDER

rear, LH, crown type, 553/654/724

1шт.

Version without safety frame

1шт.

11-36AS, 11-38AS, 12-36AS, 12-38AS, 14-30AS, 14-34AS

1шт.

24

3142206R91

FENDER

rear, LH, crown type, 824

1шт.

Version without safety frame

1шт.

12-38AS, 14-30AS, 14-34AS, 15-30AS

1шт.

24

787875R93

FENDER

rear, LH, elefant ear type, 553/654/724

1шт.

11-36AS, 11-38AS, 12-36AS, 12-38AS, 14-30AS, 14-34AS

1шт.

25

787869R1

SHIM

SPARE PART 0.1 mm (.004")

1шт.

25

787870R1

SHIM

0.2 mm (.008")

1шт.

25

787871R1

BLOCK

SHIM, 0.5 mm (.020")

1шт.

25

787872R1

SHIM

SHIM, 1.0 mm (.040")

1шт.

26

37-2614

DOWEL,3/8" x 7/8"

2шт.

27

NSS

NOT SOLD SEPARAT

TRANSMISSION, front axle drive, see Figure: 204

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

6шт.

28

NSS

NOT SOLD SEPARAT

SHAFT propeller, see Figure: 202

1шт.

29

3136568R1

SHIELD

front wheel, without support (rubber)

2шт.

29

3136562R91

SHIELD

front wheel, LH, support screwed

1шт.

29

3136563R91

SHIELD

front wheel, RH

1шт.

29

3131637R11

SHEET

SHIELD, front wheel, LH, support screwed

1шт.

29

3131638R11

SPLASH SHIELD

front wheel, RH

1шт.

933110R1

SNAP RING,M32, Int

S M14 x 60 mm

8шт.

933712R1

WASHER

SPARE PART F 14 mm

8шт.

30

120385

WASHER,3/16"

6шт.

31

3136564R11

SUPPORT

LH

1шт.

31

3136565R11

SUPPORT

RH

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

6шт.

32

3131645R1

SPACER

RING distance

4шт.

For power steering

1шт.

3131645R1

SPACER

RING distance

6шт.

For mechanical steering

1шт.
