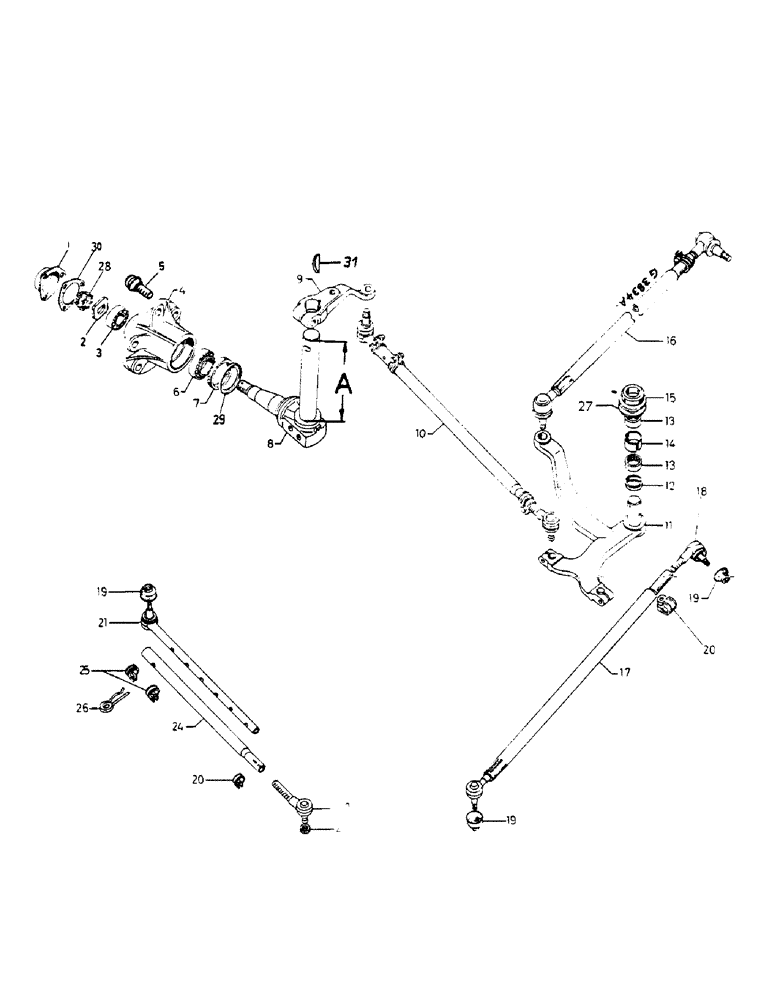

Запчасти Case IH 654 (188) - STEERING KNUCKLES AND LINKAGE (06) - POWER TRAIN

1

713238R1

CAP

closing

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

6шт.

2

3057062R1

WASHER

2шт.

3

652075R91

TAPERED BEARING

front wheel outer

2шт.

4

3131012R31

HUB

front wheel, with 5

2шт.

5

3137538R1

BOLT

ball flange

10шт.

6

671074R91

CRANKSHAFT BEARING

front wheel inner

2шт.

7

3131013R1

SEALING RING,69.5mm ID x 85mm OD x 7mm Thk

2шт.

8

3131010R11

STEERING KNUCKLE

LH, for 17 + 18", A=247 mm

1шт.

8

3131383R91

STEERING KNUCKLE

LH, for 20", A = 297 mm

1шт.

8

3134183R91

X

KNUCKLE steering, LH, for 24", A = 377 mm

1шт.

8

3131011R11

STEERING KNUCKLE

RH, for 17 + 18", A = 247 mm

1шт.

8

3131384R91

STEERING KNUCKLE

LH, for 20", A = 297 mm

1шт.

8

3134184R91

STEERING KNUCKLE

LH, for 24", A = 377 mm

1шт.

425-1514

JAM NUT,Jam, 7/8"-14, G5

2шт.

108637

COTTER PIN,5/32" x 1 1/8"

2шт.

716494R1

PLUG

2шт.

9

3057059R3

ARM

steering rod

2шт.

179892

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

2шт.

103323

LOCK WASHER,1/2"

2шт.

114505

JAM NUT,Jam, 1/2"-13, G5

2шт.

126-122

WOODRUFF KEY,#13, 3/16" x 1", HT

2шт.

10

3057166R91

TIE-ROD

with: 19 - 26

2шт.

11

3136954R91

LEVER ASSY.

steering, with: 13

1шт.

930051R1

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

933335R1

LOCK WASHER,M10

2шт.

933065R1

NUT,M10, Cl 5

2шт.

739159R91

LUBE NIPPLE

LUBRICATOR

1шт.

12

3057170R1

RING

distance

1шт.

13

3134118R1

NEEDLE BEARING

needle

2шт.

14

3137669R1

SPACER

distance

1шт.

15

3057171R2

RING

stop

1шт.

932292R1

LOCK PIN,M6 x 50, Slotted

1шт.

16

3057165R91

TIE-ROD

TIE ROD DRAG LINK, with: 17 - 20, 553

1шт.

16

3057164R91

TIE-ROD

TIE ROD DRAG LINK, with: 17 - 20, 654/724/824

1шт.

17

3058210R91

TIE-ROD

TIE ROD JOINT ball with steel pipe, 553

1шт.

17

3058208R91

TIE-ROD

JOINT ball with steel pipe, 654/724/824

1шт.

933169R1

NUT,M12 x 1.5

1шт.

103385

COTTER PIN,1/8" x 1"

1шт.

18

3058207R91

JOINT

ball

1шт.

933169R1

NUT,M12 x 1.5

1шт.

103385

COTTER PIN,1/8" x 1"

1шт.

19

3058209R1

SPARE PART dust

4шт.

20

716207R1

CLAMP

3шт.

716208R1

BOLT,Hex, M8 x 1 x 35, 8.8, Full Thd

3шт.

103320

LOCK WASHER,5/16"

3шт.

716196R1

NUT,M8, Cl 6

3шт.

21

3058213R91

BALL JOINT

2шт.

933169R1

NUT,M12 x 1.5

2шт.

103385

COTTER PIN,1/8" x 1"

2шт.

22

3058214R91

BALL JOINT

ball

2шт.

23

3058212R1

DISK HARROW

sealing

2шт.

24

3058211R1

TUBE

PIPE, steel

2шт.

25

712987R1

CLAMP

4шт.

716206R1

BOLT,Hex, M8 x 1 x 40mm, Cl 8.8

4шт.

103320

LOCK WASHER,5/16"

4шт.

716196R1

NUT,M8, Cl 6

4шт.

26

716198R1

SPLIT PIN/SAFETY PIN

SPRING

2шт.

27

3137188R1

SHIM,30mm ID x 56mm OD x 0.41mm Thk

1шт.

28

3059772R1

THRUST WASHER

CAP, locking

2шт.

29

3131014R1

RING,74mm ID x 85mm OD x 1mm Thk

clamping

2шт.

30

49116D

GASKET,0.79mm Thk

2шт.

31

126-122

WOODRUFF KEY,#13, 3/16" x 1", HT

2шт.
