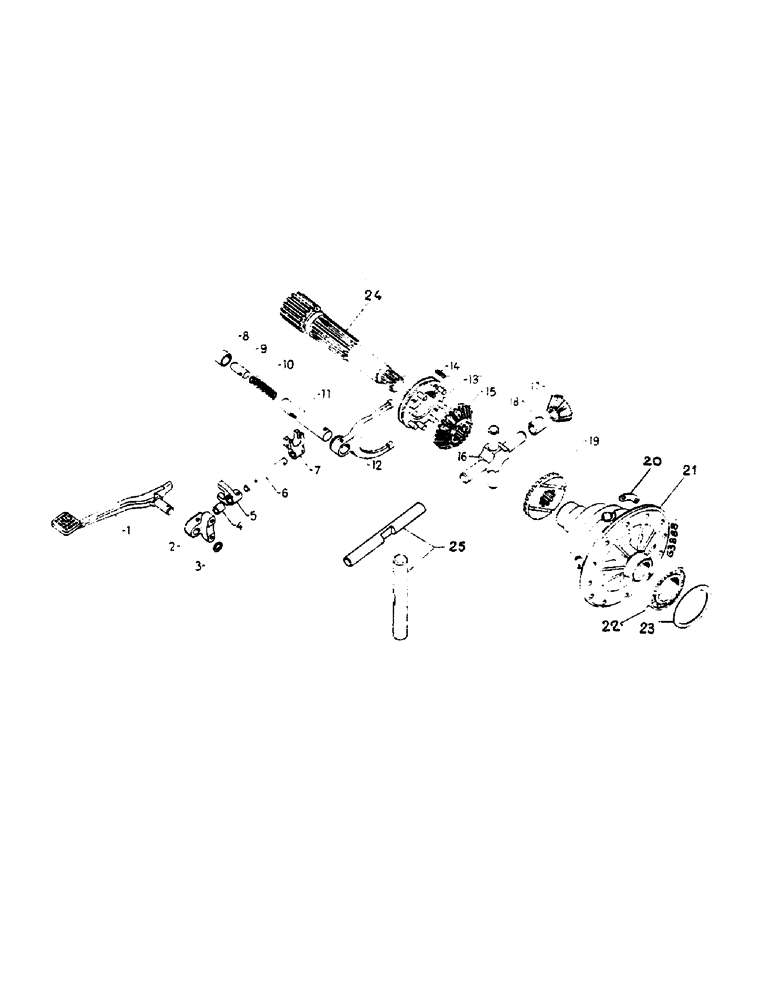

Запчасти Case IH 654 (157) - DIFFERENTIAL, DIFFERENTIAL LOCK (06) - POWER TRAIN

1

3057230R11

PEDAL

foot, differential lock

1шт.

713829R1

SET SCREW

S 3/8" x 57 mm

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

932228R1

LOCK PIN,M6 x 24, Slotted

roll 6 x 25 mm

1шт.

933133R1

WASHER,M10.5 ID x 20 OD x 2 Thk

1шт.

2

3057229R2

BRACKET

HOLDER, foot pedal

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

933190R91

LUBE NIPPLE,1/8"-28 BSP x 20mm lg

1шт.

3

578274R1

WASHER

1шт.

4

3057213R1

BUSHING

1шт.

5

3057228R1

CRADLE

LEVER, differential lock

1шт.

932228R1

LOCK PIN,M6 x 24, Slotted

roll 6 x 25 mm

1шт.

6

3057227R1

SHAFT

shifter

1шт.

7

3057226R1

NO LONGER SERVICED

FORK, for differential lock

1шт.

932228R1

LOCK PIN,M6 x 24, Slotted

roll, 6 x 25 mm

1шт.

8

3057214R1

BUSHING

1шт.

9

3057225R2

PIN

BOLT

1шт.

932234R1

LOCK PIN,M6 x 40, Slotted

1шт.

10

3057224R1

SPRING

pressure

1шт.

11

3057072R21

SHAFT

shifter

1шт.

12

3057223R2

FORK

shifter

1шт.

932323R1

LOCK PIN,M6 x 45, Slotted

1шт.

13

3137118R11

COUPLING

shifter

1шт.

14

3057219R1

SPRING

pressure

4шт.

15

3057068R1

PINION

GEAR differential bevel 24 teeth

1шт.

16

3131648R1

PINION

SPIDER, differential, 553/654

2шт.

17

3137206R91

SET

PINION, differential bevel, set of

1шт.

18

NSS

NOT SOLD SEPARAT

Order: 3137206R91

1шт.

19

3057069R1

PINION

GEAR, differential bevel 24 teeth

1шт.

20

713642R1

PLATE, LOCKING

bolt

4шт.

21

3137116R11

HOUSING

differential

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

8шт.

3137233R1

BOLT

S 1/2" x 26 mm

12шт.

22

85661H

BEARING, BALL

553/654

2шт.

22

787706R91

TAPERED BEARING,70mm ID x 125mm OD x 26.25mm W

724/824

2шт.

23

3134980R1

SHIM

0.10 mm, 724/824

1шт.

23

3134981R1

SHIM

0.12 mm, 724/824

1шт.

23

3134982R1

SHIM

0.14 mm, 724/824

1шт.

23

3134983R1

SHIM

0.16 mm, 724/824

1шт.

23

3134984R1

SHIM

0.18 mm, 724/824

1шт.

23

3057220R1

DISC

SHIM 0.20 mm, 553/654

1шт.

23

3134985R1

SHIM

0.20 mm, 724/824

1шт.

23

3057221R1

SHIM

0.30 mm, 553/654

1шт.

23

3057222R1

SHIM

0.50 mm, 553/654

1шт.

23

3134986R1

SHIM

0.50 mm, 724/824

1шт.

23

3134987R1

SHIM

0.70 mm, 724/824

1шт.

23

3134988R1

SHIM

1.00 mm, 724/824

1шт.

24

3057002R1

SHAFT

differential, 553/654

2шт.

24

3137113R11

SHAFT

differential, 724/824

2шт.

25

3057218R1

DIFF. SPIDER

724/824

1шт.
