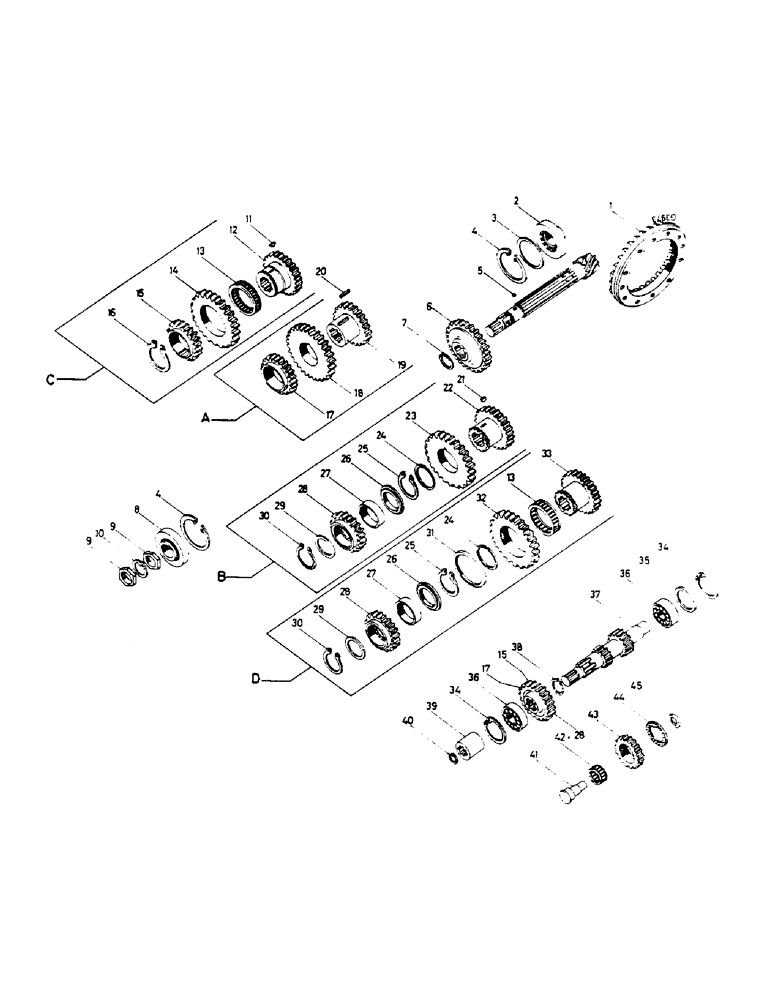

Запчасти Case IH 654 (152) - RANGE TRANSMISSION (06) - POWER TRAIN

1

3142443R91

GEAR-SET

SHAFT, spline with drive bevel gear, 10:43 teeth, 553/654

1шт.

1

3142459R91

SHAFT

spline with drive bevel gear, 12:51 teeth, 553/654

1шт.

2

3057266R92

TAPERED BEARING

1шт.

3

3137095R1

SHIM

2.0 mm (.079")

1шт.

3

3137096R1

SHIM

2.1 mm (.083")

1шт.

3

3137097R1

SHIM

2.2 mm (.087")

1шт.

3

3137098R1

SHIM

2.3 mm (.091")

1шт.

3

3137099R1

SHIM

2.4 mm (.094")

1шт.

3

3137100R1

SHIM

2.5 mm (.098")

1шт.

3

3137101R1

SHIM

2.6 mm (.102")

1шт.

3

3137102R1

SHIM

2.7 mm (.106")

1шт.

3

3137103R1

SHIM

2.8 mm (.110")

1шт.

3

3137104R1

SHIM

2.9 mm (.114")

1шт.

4

3137156R1

CIRCLIP

2шт.

5

16006R1

BALL

steel, 724/824

1шт.

6

3057799R4

GEAR

ground speed, PTO, 54 teeth

1шт.

7

3058041R1

RING, SNAP

RING SNAP CIRCLIP

1шт.

8

3057277R93

ROLLER BEARING

1шт.

9

3057278R2

RING NUT

ring

2шт.

10

3139218R1

WASHER

WASHER

1шт.

11

218211

DRIVING SPROCKET

553/654

1шт.

12

3134526R1

GEAR

sliding, reverse 37 teeth, 553/654

1шт.

13

3057771R92

BEARING, NEEDLE

WHEEL, free

1шт.

14

3137191R1

GEAR

spur, field range, 45 teeth, 553/654

1шт.

15

3142169R91

SET

GEARS, set of road range 35/40 teeth, 553/654

1шт.

25 km/h = 15.5 mph

1шт.

15

3142170R91

GEAR-SET

of road range 38/37 teeth, 553/654

1шт.

30 km/h - 18.6 mph

1шт.

16

933847R1

SNAP RING,M80, Ext

553/654

1шт.

17

3142074R91

GEAR-SET

SPARE PART of road range, 40/35 teeth, 553/654

1шт.

25 km/h = 15.5 mph

1шт.

17

3142075R91

GEAR-SET

of road range, 38/37 teeth, 553/654

1шт.

30 km/h - 18.6 mph

1шт.

18

3137477R1

PINION

GEAR, field range 54 teeth, 553/654

1шт.

19

3057077R2

GEAR

sliding, reverse 37 teeth, 553/654

1шт.

932470R1

LOCK PIN,M6 x 20, Slotted

1шт.

932620R1

LOCK PIN,M3.5 x 20, Slotted

1шт.

20

932584R1

KEY,M14 x 9 x 50, Par

KEY, 553/654

1шт.

21

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

724/824

1шт.

22

3142462R1

GEAR

sliding, reverse 37 teeth, 724/824

1шт.

23

3142463R1

GEAR

field range 54 teeth, 724/824

1шт.

24

3142473R1

DISC

SPARE PART WASHER, two-piece, 724/824

2шт.

25

3142474R1

CIRCLIP

724/824

1шт.

26

3142475R1

WASHER

RING, distance, 724/824

1шт.

27

3142466R1

BUSHING

724/824

1шт.

28

3142472R91

GEAR SET

of rod range, 37/32 teeth, 724/824

1шт.

25 km/h = 15.5 mph

1шт.

28

3142468R91

GEAR SET

of rod range 35/34 teeth, 724/824

1шт.

30 km/h - 18.6 mph

1шт.

29

3142629R1

WASHER

thrust, 724/824

1шт.

30

933946R1

RING, SNAP

RING SNAP CIRCLIP, 724/824

1шт.

31

3142478R1

THRUST WASHER

thrust, 724/824

1шт.

32

3142477R1

GEAR

spur, field range 54 teeth, 724/824

1шт.

33

3142476R1

GEAR

sliding, reverse 37 teeth, 724/824

1шт.

34

933077R1

SNAP RING,M90, Int

CIRCLIP

2шт.

35

3142493R1

SHIM

0.1 mm (.004"), 724/824

1шт.

35

3142492R1

BLOCK

SHIM 0.2 mm (.008"), 724/824

1шт.

35

3142491R1

SHIM

0.5 mm (.020"), 724/824

1шт.

35

3142490R1

SHIM

1.0 mm (.040"), 724/824

1шт.

36

700516R91

BALL BEARING,30 mm ID x 72 mm OD x 19 mm

553/654

2шт.

36

3003911R1

TAPERED BEARING

724/824

2шт.

37

3142453R1

SHAFT

SPARE PART COUNTER, 553/654

1шт.

37

3142461R1

COUNTERSHAFT

724/824

1шт.

38

933088R1

SNAP RING,M50, Ext

1шт.

39

3057014R2

COUPLING, BREAK AWAY

SLEEVE, shaft coupling

1шт.

40

933327R1

SNAP RING,M36, Int

CIRCLIP

1шт.

41

3142448R1

SHAFT

reverse idler

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

103321

LOCK WASHER,3/8"

1шт.

42

3142450R91

ROLLER BEARING,47 mm ID x 62.5 mm OD x 26 mm

roller

1шт.

43

3142451R1

GEAR

idler, reverse

1шт.

44

3142449R1

WASHER

1шт.

45

3142452R1

WASHER

1шт.
