Запчасти Case IH 654 (144) - POWER-SHIFT MECHANISM (06) - POWER TRAIN

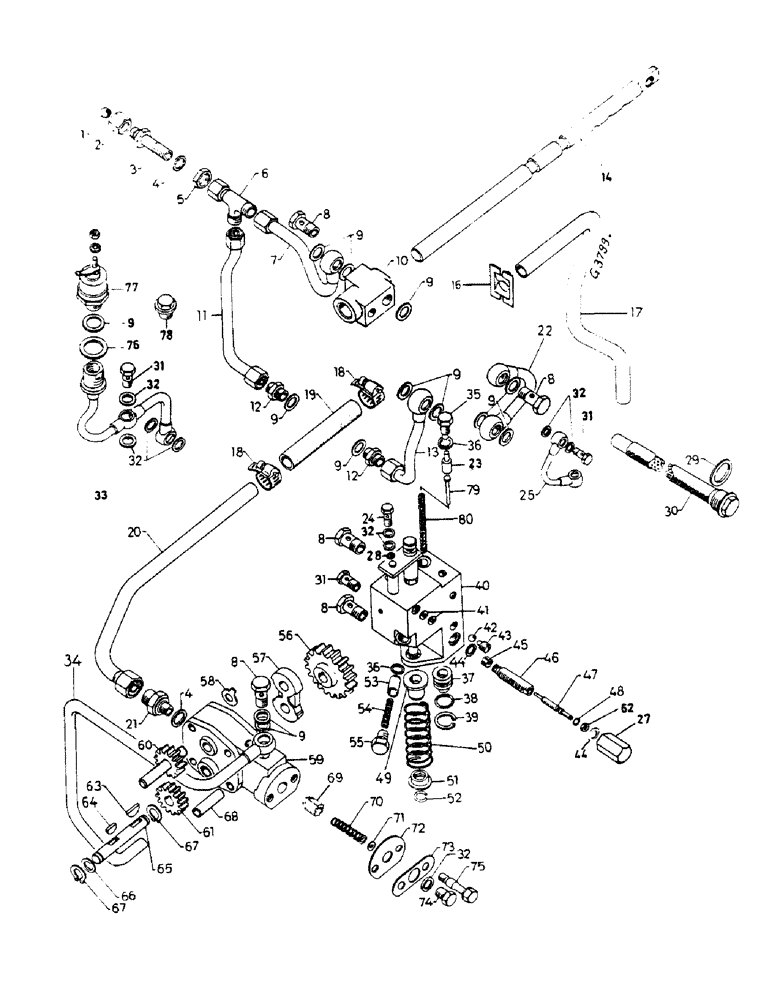

Схема запчастей Case IH 654 - (144) - POWER-SHIFT MECHANISM (06) - POWER TRAIN
31
68
32
37
25
67
36
12
75
73
9
31
49
72
8
9
80
19
4
9
44
17
63
31
79
4
47
18
9
52
2
66
3
8
18
56
65
20
74
8
32
12
78
55
71
46
34
41
9
30
45
32
7
62
24
13
44
35
48
59
57
22
77
21
54
36
33
51
60
40
9
14
5
70
9
23
76
50
6
32
64
11
10
61
9
39
38
8
8
29
16
58
28
1
67
69
53
27
42
32
43

Артикул

Название

Примечание

Количество

1

16016R1

BALL

steel

1шт.

2

3058452R1

TUBE NUT,Coupling, M16 x 1.5

union

1шт.

3

3058451R1

UNION

adapter

1шт.

103325

LOCK WASHER,5/8"

1шт.

4

933155R1

SEALING RING,M16 x 20 x 1.5

2шт.

5

717877R1

NO LONGER SERVICED

1шт.

6

3058078R91

TEE

UNION

1шт.

7

3058073R91

PIPE

pressure

1шт.

8

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

hollow

5шт.

9

710097R2

SEALING RING,14mm ID x 18mm OD x 1.5mm Thk

Packing

13шт.

10

3136523R1

JUNCTION

BLOCK

1шт.

11

3058074R92

PIPE

pressure

1шт.

12

3058450R1

HYD CONNECTOR,M14 x 1.5 x M16 x 1.5

adapter

2шт.

13

3058072R93

PIPE

pressure

1шт.

14

3137966R1

ROD

553/654

1шт.

14

3142480R1

ROD

724/824

1шт.

15

3134778R1

SPRING

pressure

1шт.

16

3059297R1

PLATE, LOCKING

CLIP, suction pipe

2шт.

17

3131744R1

PIPE

suction

1шт.

18

897623H1

CLAMP

hose

2шт.

19

3058198R1

HOSE,16.40 mm ID x 2032.00 mm

SUCTION

1шт.

20

3058048R92

PIPE

suction

1шт.

21

3058449R1

HYD CONNECTOR,M16 x 1.5 x M18 x 1.5

adapter

1шт.

22

3058071R91

PIPE FITTING

pressure

1шт.

23

NSS

NOT SOLD SEPARAT

Order: 3136517R92

1шт.

24

3136521R11

PIPE FITTING

SCREW, hollow

1шт.

25

3136522R1

PIPE FITTING

pressure

1шт.

26

3134770R1

PIN

GUIDE, spring

1шт.

27

3058422R1

NUT

CAP, screw

1шт.

28

16009R1

BALL

steel

1шт.

29

93360R1

RING, packing

1шт.

30

3057892R2

FILTER

1шт.

31

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

hollow

3шт.

32

713710R2

SEALING RING,M12 x 15.5 x 1.5

9шт.

33

3058584R91

PIPE

pressure

1шт.

219754

BACK-UP RING

1шт.

34

3058049R91

TUBE

PIPE, cooling

1шт.

35

3057882R1

BOLT

1шт.

36

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

2шт.

37

3134769R1

PLUG

1шт.

38

3058131R1

O-RING

1шт.

39

3058007R1

RING

CIRCLIP

1шт.

40

3136517R92

CONTROL VALVE

with: 15, 23, 26, 27, 35, 40, 42-55, 62

1шт.

40

3136518R92

BODY

VALVE, control, with piston and spool, 15, 23, 26, 27, 35, 40, 42-55, 62

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

1шт.

41

710673R2

SEALING WASHER,8mm ID x 11.5mm OD x 1mm Thk

RING, packing

2шт.

42

16008R1

BALL,1/4" Dia, Steel

1шт.

43

3057891R1

SET SCREW

1шт.

44

710097R2

SEALING RING,14mm ID x 18mm OD x 1.5mm Thk

Packing

2шт.

45

3058420R1

FILTER SCREEN

oil

1шт.

46

3058418R91

VALVE

throttle, with: 45, 47, 48, 62

1шт.

47

NSS

NOT SOLD SEPARAT

Order: 3058418R91

1шт.

48

3058130R1

O-RING

1шт.

49

3057875R1

CUP

spring retainer, upper

1шт.

50

3057877R2

SPRING

pressure

1шт.

51

3057876R1

CUP

spring retainer, lower

1шт.

52

3058189R1

RING

snap

1шт.

53

3057878R2

STOP

BOLT

1шт.

54

3058187R1

SPRING

pressure

1шт.

55

3058188R1

PLUG

1шт.

56

3057867R3

GEAR

driving, 17 teeth

1шт.

57

NSS

NOT SOLD SEPARAT

Order: 3057857R98

1шт.

58

933119R1

WASHER,Tab, M8.4 ID x 22 OD x .75 Thk

SHEET

8шт.

59

3057857R98

PUMP

hydraulic, with: 56 - 58, 60 - 61, 63 - 68

1шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

4шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

60

3057871R11

GEAR WHEEL

SHAFT, with idler gear, 13 teeth

1шт.

61

NSS

NOT SOLD SEPARAT

Order: 3057857R98

1шт.

62

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

63

3059296R1

SPLINE

KEY

1шт.

64

NLS

NO LONGER SERVICED

1шт.

65

NSS

NOT SOLD SEPARAT

Order: 3057857R98

1шт.

66

446220

WASHER

1шт.

67

933083R1

RING

CIRCLIP

2шт.

68

3059248R1

SPARE PART

2шт.

69

3134137R2

PLUG

VALVE, safety (plastic)

1шт.

70

3058098R2

SPRING

1шт.

If you need a smaller spring , order 3229566R1 spring , see parts book, 744 used with 3225275R91 pump

1шт.

71

3059140R1

WASHER

adjusting

1шт.

72

3058179R1

SHIM

0.3 mm

1шт.

72

3058180R1

SHIM

0.6 mm

1шт.

73

3058195R1

PLATE, LOCKING

SHEET

1шт.

74

933321R1

PLUG,M10 x 1 NPT

1шт.

75

3057870R2

SCREW

2шт.

76

3058431R1

COPPER WASHER

RING, packing

1шт.

77

3058432R1

PRESSURE SWITCH

oil pressure

1шт.

78

712616R1

PLUG,Hex, M14 x 1.5

1шт.

Выбрано товаров: 87
