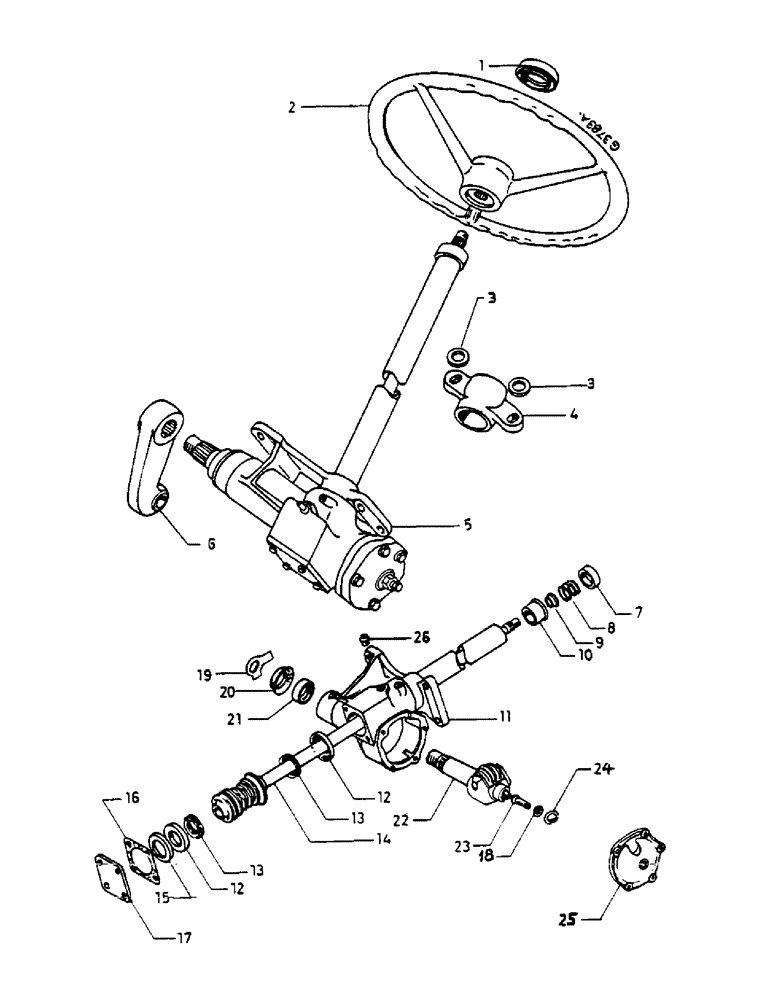

Запчасти Case IH 654 (260) - STEERING (05) - STEERING

1

790680R1

BUTTON

CAP, steering wheel

1шт.

2

3057154R91

WHEEL (STEERING)

1шт.

3

50793H

WASHER

2шт.

4

3059783R1

BEARING CARRIER

steering column

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

5

3057159R92

STEERING ASSY

"ZF" with: 7 - 26

1шт.

553/654, standard version A

1шт.

5

3137710R91

BLOCK ASSY.

STEERING "ZF" with: 7 - 26

1шт.

724/824, version with four wheel

1шт.

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

4шт.

103322

LOCK WASHER,7/16"

4шт.

3057161R1

SPLIT PIN/SAFETY PIN

roll, 14 x 20 mm

2шт.

6

3057160R1

LEVER

ARM drop, 553/654

1шт.

6

3137709R1

ARM

drop, 724/824

1шт.

7

3058219R1

SEALING RING

oil

1шт.

8

3131820R2

COIL SPRING

1шт.

9

715872R1

RING

centering

1шт.

10

715871R91

BUSHING

1шт.

11

3058232R92

CASE

HOUSING gear, with column jacket

1шт.

553/654, standard version A

1шт.

12

3058221R1

BEARING, CUP

RACE

2шт.

13

3058220R91

ROLLER BEARING

CONE

2шт.

14

3058222R92

STEERING COLUMN

WORM

1шт.

553/654, standard version A

1шт.

14

3142830R1

SPINDLE

WORM steering

1шт.

724/824, version with four wheel

1шт.

933751R1

WASHER

spring, 16 mm

1шт.

553/654, standard version A

1шт.

3142834R1

LOCK WASHER

lock, 16 mm

1шт.

724/824, version with four wheel

1шт.

717877R1

NO LONGER SERVICED

M M16

1шт.

553/654, standard version A

1шт.

934021R1

JAM NUT,Thin, M16 x 1.5, Cl 05

1шт.

724/824, version with four wheel

1шт.

15

3058224R2

WASHER

1шт.

16

3058225R91

SHIM

set of

1шт.

17

3058226R2

CONNECTOR, ELEC

CONNECTOR FLANGE, adjusting

1шт.

3131708R1

S M8 x 20 mm

4шт.

553/654, standard version A

1шт.

3131707R1

S M8 x 25 mm

4шт.

724/824, version with four wheel

1шт.

103320

LOCK WASHER,5/16"

4шт.

18

715848R91

WASHER

guide, set of

1шт.

19

933622R1

WASHER,Tab, M28

1шт.

20

3058231R1

SEALING RING

dust

1шт.

553/654, standard version A

1шт.

20

3142833R1

SEAL

dust

1шт.

724/824, version with four wheel

1шт.

21

715860R91

SEAL

oil

1шт.

553/654, standard version A

1шт.

21

3131687R1

OIL SEAL

1шт.

724/824, version with four wheel

1шт.

22

3058229R92

SHORT SHAFT

ROCK, with: 18, 23, 24

1шт.

553/654, standard version A

1шт.

22

3142832R1

SHAFT

ROCK, with: 18, 23, 24

1шт.

724/824, version with four wheel

1шт.

933623R1

NUT

M M26

1шт.

553/654, standard version A

1шт.

3078405R1

HARDWARE

M M30

1шт.

724/824, version with four wheel

1шт.

23

3058230R1

ADJUSTMENT SCREW

adjusting

1шт.

716607R1

NUT

M M14

1шт.

553/654, standard version A

1шт.

934199R1

SPARE PART M M14

1шт.

724/824, version with four wheel

1шт.

24

715849R1

CLIP

CIRCLIP

1шт.

25

3058228R2

COVER

gear housing

1шт.

3131707R1

S M8 x 25 mm

5шт.

103320

LOCK WASHER,5/16"

5шт.

26

3058223R1

PLUG

oil

1шт.
