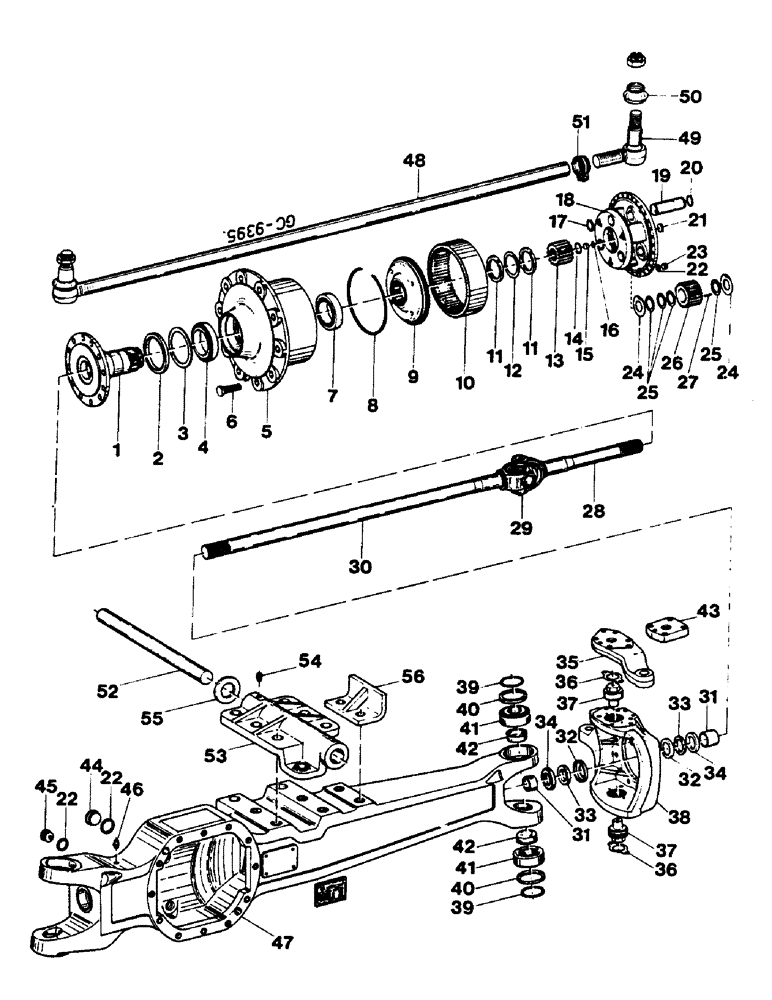

Запчасти Case IH 644 (2B06) - FRONT AXLE APL-1351 (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
3232082R91
HUB CARRIER
2шт.
628-12025
BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd
24шт.
2
3216594R1
OIL SEAL
2шт.
3
3216593R1
WASHER
WASHER
2шт.
4
3230271R91
TAPERED BEARING
tapered
2шт.
5
3230280R1
HUB
wheel
2шт.
6
3230876R1
BOLT,Wheel, Serr, M18 x 1.5 x 61 mm
SCREW
16шт.
905667R1
WHEEL NUT,Wheel, Flg, M18 x 1.5
M18
16шт.
3230348R3
WASHER,18.75mm ID x 30.8mm OD x 7.75mm W
ball flange
16шт.
7
533726R91
BEARING
inner ring
2шт.
7
533727R1
BEARING, CUP
outer race
2шт.
8
3146675R1
RING, SNAP
RING SNAP
2шт.
9
3230266R1
RING CARRIER
gear
2шт.
10
3230267R1
GEAR, RING
RING, GEAR
2шт.
11
3230269R1
NUT
adjusting
4шт.
12
3230270R1
DISC
RING, lock
2шт.
13
3230265R1
GEAR
sun
2шт.
14
933074R1
SNAP RING,M28, Ext
CIRCLIP
2шт.
15
3230263R1
PLUG
KNOB Thrust
2шт.
16
3147212R1
WASHER
SHIM 0.3 mm
1шт.
16
3147211R1
WASHER
SHIM 0.5 mm
1шт.
16
3147210R1
SHIM
1.0 mm
1шт.
17
800-1124
SNAP RING,M22, Ext
CIRCLIP
6шт.
18
3230259R1
PINION CARRIER
GEAR CARRIER pinion
2шт.
934721R1
BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd
54шт.
932840R1
LOCK PIN,M8 x 26, Slotted
8шт.
932742R1
LOCK PIN,M5 x 26, Slotted
6 x 26 mm
8шт.
19
3230260R1
SHAFT
2шт.
20
933255R1
CIRCLIP,Ext, M20.2
6шт.
21
933565R1
PLUG,M14, Conical
expansion
2шт.
22
3051337R1
SEALING RING,M18 x 24mm OD x 1.5mm Thk
2шт.
22
933709R1
PACKING RING
24 mm
2шт.
23
934651R1
PLUG,Hex Soc, M18 x 1.5
2шт.
23
3084191M1
PLUG
M24
2шт.
24
1295 420023
WASHER, THRUST
12шт.
25
1295 420024
WASHER
12шт.
26
3230261R1
GEAR
PINION
6шт.
27
3230262R1
NEEDLE BEARING
1шт.
28
3216599R91
SHAFT
2шт.
29
3230277R1
SPIDER ASSY.
2шт.
3223197R1
RING, SNAP
RING SNAP CIRCLIP
8шт.
30
3230276R1
SHAFT
LH
1шт.
30
3230278R1
SHAFT
RH
1шт.
31
3216585R1
BUSHING,28mm ID x 32mm OD x 30mm L
2шт.
32
3226008R1
HOLDER
SHEET protection
4шт.
33
3226009R1
SEALING RING
felt
4шт.
34
3405555R2
GASKET KIT
SEAL oil
4шт.
35
3230279R1
LEVER
1шт.
3404789R1
SCREW
BOLT
6шт.
36
3216589R1
PLATE, LOCKING
SHEET
4шт.
930107R1
BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd
8шт.
37
3216588R1
LARGE PIN
PIN, LARGE
4шт.
712992R91
LUBE NIPPLE
4шт.
38
3230955R1
HOUSING
ball joint, RH
1шт.
38
3230954R1
HOUSING
ball joint, LH
1шт.
3134225R1
BOLT
BOLT, M12 x 40 mm
4шт.
934652R1
THIN NUT,Thin, M12 x 1.5, Cl 05
4шт.
39
3147244R1
O-RING
4шт.
40
3147243R1
CUP WASHER
CAP seal
4шт.
41
3147242R91
ROLLER BEARING
inner ring
4шт.
41
3147241R1
BEARING, CUP
Outer race
4шт.
42
3147245R1
PLUG
4шт.
43
3230953R1
COVER
1шт.
931656R1
BOLT,Hex, M14 x 2 x 50mm, Cl 8.8
4шт.
44
933799R1
PLUG,Hex Soc, M24 x 1.5
1шт.
45
3216584R1
PLUG
M18
1шт.
46
1966149C2
BREATHER
1шт.
46
3222497R1
PLUG
M10
1шт.
47
3230274R1
HOUSING
AXLE front
1шт.
47
3230163R92
4WD AXLE ASSY
front, with differential and planetary drive
1шт.
47
3230165R92
4WD AXLE ASSY
front, with self locking differential and planetary drive
1шт.
932601R1
RIVET
PIN roll, 10 x 30 mm
2шт.
48
NSS
NOT SOLD SEPARAT
ROD tie
1шт.
48
82185C1
TIE-ROD
TIE ROD with ball joints
1шт.
934683R1
NUT,M18 x 1.5
2шт.
932956R1
COTTER PIN,M4 x 40
cotter, 4 x 40 mm
2шт.
49
3217279R1
BALL JOINT
1шт.
50
3217437R1
BELLOWS
BOOT dust
1шт.
51
3230366R1
CLAMP
1шт.
52
3140082R1
PIVOT
PIVOT front, axle
1шт.
53
3141007R3
FLANGE
BEARING pivot, front axle
1шт.
931605R1
BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd
4шт.
3142216R1
BOLT,Hex, M20 x 2.5 x 65mm, Cl 8.8
BOLT, M20 x 60 mm
2шт.
933714R1
WASHER
lock, 20 mm
6шт.
3142217R1
NUT
M20
2шт.
54
3059875R6
SCREW,5/8" - 11 x 40mm
1шт.
329-1410
JAM NUT,Jam, 5/8"-11, G8
1шт.
55
3057042R1
SHIM,40.05mm ID x 59.94mm OD x 0.55mm Thk
0.5 mm
1шт.
55
3059771R1
SHIM
0.2 mm
1шт.
56
1287680C1
STOP
SUPPORT angle
1шт.
931145R1
BOLT,Hex, M20 x 2.5 x 40mm, Cl 8.8, Full Thd
2шт.
892-11020
LOCK WASHER,M20
2шт.
Выбрано товаров: 92
