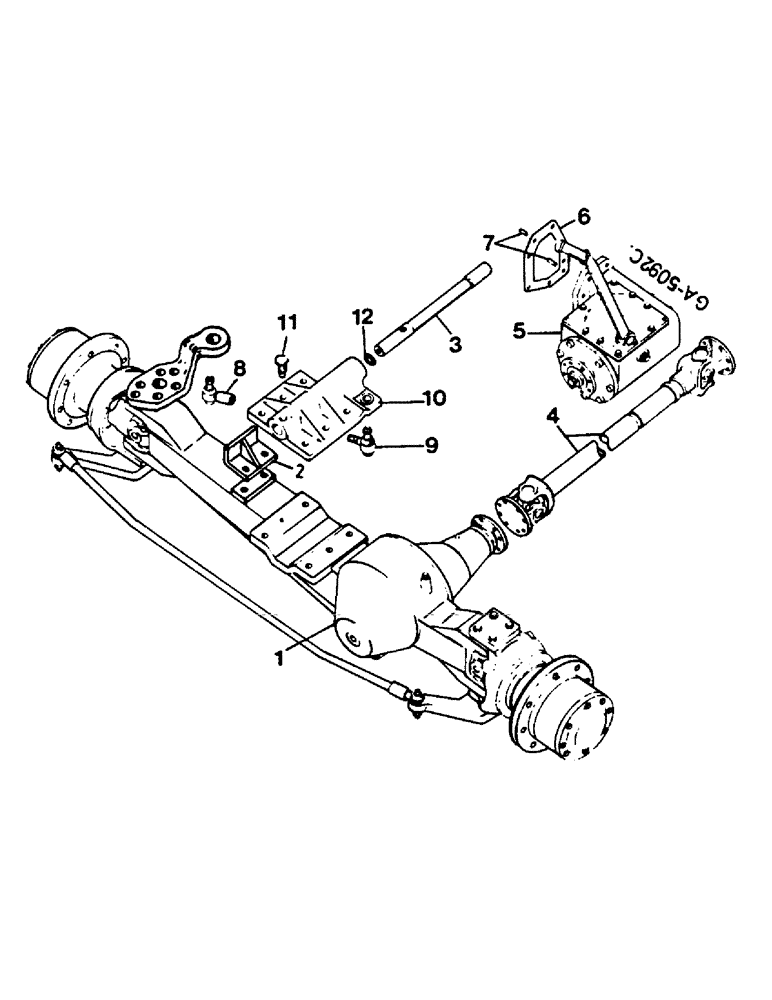

Запчасти Case IH 644 (1J18) - FOUR WHEEL DRIVE (04) - Drive Train

1

NSS

NOT SOLD SEPARAT

AXLE front, see Figure: 2B15

1шт.

2

1287680C1

STOP

SUPPORT angle

1шт.

931145R1

BOLT,Hex, M20 x 2.5 x 40mm, Cl 8.8, Full Thd

2шт.

892-11020

LOCK WASHER,M20

2шт.

3

3140082R1

PIVOT

PIVOT front, axle

1шт.

4

NSS

NOT SOLD SEPARAT

SHAFT propeller, for front axle, see Figure: 1J20

1шт.

5

NSS

NOT SOLD SEPARAT

TRANSMISSION front axle drive, see Figure: 2B1

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

6шт.

6

787869R1

SHIM

SPARE PART 0.1 mm (.004")

1шт.

6

787870R1

SHIM

0.2 mm (.008")

1шт.

6

787871R1

BLOCK

SHIM, 0.5 mm (.020")

1шт.

6

787871R1

BLOCK

SHIM, 1.0 mm (.040")

1шт.

7

37-2614

DOWEL,3/8" x 7/8"

2шт.

8

3146035R91

BALL JOINT

1шт.

9

3141529R93

BALL JOINT

1шт.

934072R1

LOCK WASHER,Serr, M31

tooth, 30 mm

1шт.

934070R1

THIN NUT,Thin, M30 x 1.5

M30

1шт.

190003872359

NUT

M20

1шт.

932956R1

COTTER PIN,M4 x 40

cotter, 4 x 20 mm

1шт.

10

3141007R3

FLANGE

BEARING pivot, front axle

1шт.

931605R1

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

4шт.

3142216R1

BOLT,Hex, M20 x 2.5 x 65mm, Cl 8.8

BOLT, M20 x 60 mm

2шт.

933714R1

WASHER

20 mm

6шт.

3142217R1

NUT

M20

2шт.

11

3059875R6

SCREW,5/8" - 11 x 40mm

1шт.

329-1410

JAM NUT,Jam, 5/8"-11, G8

1шт.

12

3057042R1

SHIM,40.05mm ID x 59.94mm OD x 0.55mm Thk

0.5 mm

1шт.

12

3059771R1

SHIM

0.2 mm

1шт.
