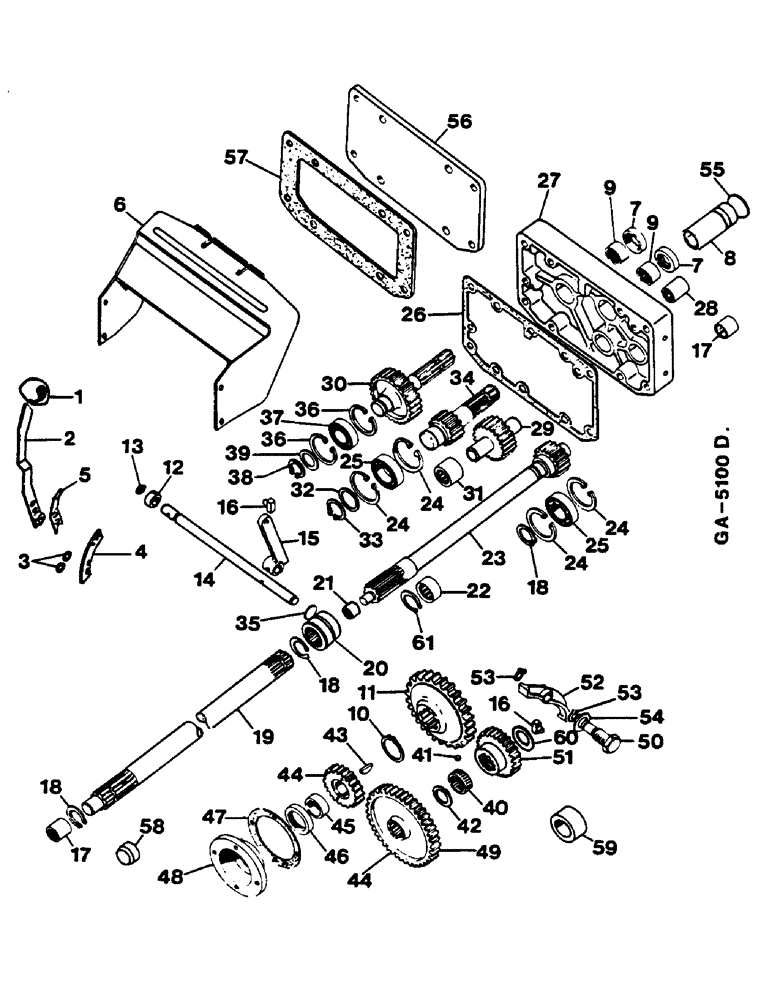

Запчасти Case IH 644 (1I06) - ENGINE PTO, GROUND SPEED PTO 644 (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
3137539R2
KNOB
BALL shifter, lever
1шт.
2
3145866R94
LEVER
shifting, with: 5
1шт.
2
3229545R91
LEVER
shifting, with: 5, for version with cab 2000
1шт.
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
2шт.
932671R1
LOCK PIN,M6 x 30, Slotted
1шт.
932738R1
LOCK PIN,3.5mm OD x 30mm L, Slotted
1шт.
3
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(Flat, 13/32 x 13/16 x 1/16")
2шт.
4
3145864R2
SECTOR
SEGMENT
1шт.
5
3145868R1
PLATE
SPRING lock
1шт.
102684
RIVET,But Hd, 5/16" x 11/16"
2шт.
6
3230787R1
SHIELD
master
1шт.
6
1328017C1
SHIELD
master, version for Finland
1шт.
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
3шт.
492-11038
LOCK WASHER,3/8"
3шт.
7
3142022R91
SEAL,40mm ID x 52mm OD x 8.5mm Thk
oil, Order: 3142023R91
1шт.
8
3054841R2
TUBE
CAP pto guard, for splined shaft
1шт.
8
3054841R2
TUBE
CAP pto guard, for serrated shaft
1шт.
9
3142305R91
NEEDLE BEARING
needle
1шт.
10
J636303
RING, SNAP
RING SNAP CIRCLIP
1шт.
11
3057799R4
GEAR
ground speed pto, 54 teeth
1шт.
11
3147666R1
GEAR
ground speed pto, 54 teeth
1шт.
Version with speed reducer
1шт.
12
3145862R91
COLLAR
RING lock, with screw
1шт.
485-1258
SET SCREW,Sq Hd, 1/4"-20 x 1/2"
1шт.
13
355966R1
O-RING,0.424" ID x 0.103" Width
1шт.
14
3145865R1
SHAFT
shifter pto
1шт.
15
3145023R91
LEVER
shifter
1шт.
932671R1
LOCK PIN,M6 x 30, Slotted
1шт.
932738R1
LOCK PIN,3.5mm OD x 30mm L, Slotted
1шт.
16
3057313R1
SLIDE
BLOCK
2шт.
17
3057316R91
CAGE
BEARING needle
2шт.
18
933075R1
SNAP RING,M40, Ext
CIRCLIP
3шт.
19
3145022R2
SHAFT
pto front, (A4430-B6350) G
1шт.
19
3223007R1
SHAFT
pto front, (B6351-) G
1шт.
19
3224953R91
PACKAGE
SPARE PART KIT repair, with: 3145013R2, 3145022R2, 3145028R3, (-A4429) G
1шт.
19
3223004R91
X
KIT repair, with: 3145022R2, 3145019R3 3145013R2, 3145016R2 and 42, (-A4429) G
1шт.
For four-wheel drive
1шт.
19
3217572R2
SHAFT
pto front for mower drive
1шт.
20
3145028R3
COUPLING
SHAFT, pto, (A4430-B6350) G
1шт.
20
3223006R1
COUPLING, BREAK AWAY
SHAFT, pto, (B6351-) G
1шт.
20
3224953R91
PACKAGE
SPARE PART KIT repair, with: 3145013R2, 3145022R2 3145028R3, (-A4429) G
1шт.
20
3145019R3
COUPLING, BREAK AWAY
SHAFT, pto, (A4430-B6350) G
1шт.
For four-wheel drive
1шт.
20
3221042R1
COUPLING
SHAFT, pto, (B6351-) G
1шт.
For four-wheel drive
1шт.
20
3223004R91
X
KIT repair, with: 3145022R2, 3145019R3 und 42 3145013R2, 3145016R2 and et, (-A4429) G
1шт.
For four-wheel drive
1шт.
21
3057317R92
BEARING, NEEDLE,16mm ID x 20mm OD x 17mm W
1шт.
22
3057318R91
BEARING, NEEDLE,Needle, 39.99mm ID x 46.98mm OD x 19.9mm W
1шт.
23
3145013R2
SHAFT
pto, rear, (A4430-B6350) G
1шт.
23
3224442R1
SHAFT
pto, rear, (B6351-) G
1шт.
23
3224953R91
PACKAGE
SPARE PART KIT repair, with: 3145013R2, 3145022R2, 3145028R3, (-A4429) G
1шт.
23
3223004R91
X
KIT repair, with: 3145022R2, 3145019R3 3145013R2, 3145016R2 and 42, (-A4429) G
1шт.
For four-wheel drive
1шт.
24
933154R1
SNAP RING,M80, Int
CIRCLIP
1шт.
25
3134661R91
BALL BEARING
ball
1шт.
26
3057302R1
GASKET
1шт.
27
3142021R1
HOUSING
pto (-B12387) G
1шт.
27
3225799R1
HOUSING
SPARE PART pto (B12388-) G
1шт.
13-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
4шт.
413-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
4шт.
80679
LOCK WASHER,1/20.507 CST ZND
4шт.
92-11062
LOCK WASHER,5/8"
4шт.
28
3232190R91
ROLLER BEARING,38.1 mm ID x 47.58 mm OD x 31.75 mm
1шт.
29
3142026R1
GEAR
intermediate, 38.10 mm "0" (-B12387) G
1шт.
29
3225801R1
GEAR
intermediate, 38.05 mm "0" (B12388-) G
1шт.
30
3142028R1
SHAFT
pto, 540 rpm
1шт.
31
56095R91
NEEDLE BEARING,Needle, 38.07mm ID x 47.64mm OD x 31.75mm W
needle
1шт.
32
3057322R1
WASHER
1шт.
33
800-5140
SNAP RING,M40, Ext, Hvy
1шт.
34
3142024R1
SHAFT
pto, 1000 rpm, serrated
1шт.
34
3142331R91
SHAFT, pto, 1000 rpm, serrated with: 7 - 9, 24, 25 and 32-34
1шт.
34
3142032R2
SHAFT
pto, 1000 rpm, splined
1шт.
34
3142502R91
X
SHAFT pto, 1000 rpm, serrated with: 7 - 9, 24, 25 and 32-34
1шт.
35
41-13
GUARD,Exp, 13/16"
expansion
1шт.
36
933076R1
SNAP RING,M72, Int
CIRCLIP
2шт.
37
A29183
BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W
1шт.
38
933113R1
SNAP RING,M35, Ext, Hvy
1шт.
39
716590R1
WASHER
1шт.
40
3134195R1
NEEDLE BEARING CAGE,40mm ID x 45mm OD x 26.8mm W
needle, (-B6350) G
1шт.
40
3221289R91
BEARING, NEEDLE
(B6351-) G
1шт.
41
211-1006
BALL,3/16" Dia
1шт.
42
3217217R2
RING
RING spacer, 5.00 mm
1шт.
42
3146058R2
WASHER
RING spacer, 5.60 mm
1шт.
42
3145020R1
WASHER
RING spacer, 6.10 mm, (A4430-B6350) G
1шт.
42
3146059R1
WASHER
RING spacer, 6.80 mm, (A4430-B6350) G
1шт.
42
3146060R1
WASHER
RING spacer, 7.50 mm, (A4430-B6350) G
1шт.
42
3223000R1
WASHER
RING spacer, 6.20 mm, (-A4429) G
1шт.
42
3223001R1
WASHER
RING spacer, 6.80 mm, (-A4429) G
1шт.
42
3223002R1
WASHER
RING spacer, 7.40 mm, (-A4429) G
1шт.
42
3223003R1
WASHER
RING spacer, 7.62 mm, (-A4429) G
1шт.
42
3224443R1
SPACER
RING, 5.85 mm, (B6351-) G
1шт.
42
3221043R1
SPACER
RING, 6.50 mm, (B6351-) G
1шт.
42
3221044R1
SPACER
RING, 7.10 mm, (B6351-) G
1шт.
42
3221045R1
SPACER
RING, 7.70 mm, (B6351-) G
1шт.
42
3221046R1
SPACER
RING, 8.30 mm, (B6351-) G
1шт.
43
126-117
WOODRUFF KEY,#91, 1/4" x 3/4", HT
2шт.
44
3134541R91
GEAR-SET
of pto drive, 28/56 teeth (single clutch)
1шт.
45
3057315R1
SPACER
RING
1шт.
46
3131160R92
OIL SEAL
Order: 3145778R1
1шт.
47
3134518R1
GASKET,0.5mm Thk
1шт.
48
3057187R3
RETAINER
1шт.
413-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
4шт.
49
3134542R92
GEAR-SET
drive, with hollow shaft, 56/28 teeth (double cl.)
1шт.
50
3057801R1
SCREW
lock
1шт.
51
3145016R2
PINION
GEAR shifter, ground speed pto, 30 teeth, (A4430-B6350) G
1шт.
51
3221041R1
PINION
GEAR shifter, ground speed pto, 30 teeth, (B6351-) G
1шт.
51
3223004R91
X
KIT repair, with: 3145022R2, 3145019R3 3145013R2, 3145016R2 and 42, (-A4429) G
1шт.
For four-wheel drive
1шт.
52
3145021R2
LEVER
locking, see Figure: 1F7
1шт.
53
933120R1
SNAP RING,M15, Ext
CIRCLIP
2шт.
54
95-81056
WASHER,0.78" ID x 1.25" OD x 0.06" Thk
1шт.
55
3142063R1
PLUG
expansion, version without PTO
1шт.
56
3133249R1
COVER
SPARE PART
1шт.
179883
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
4шт.
413-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5
4шт.
80679
LOCK WASHER,1/20.507 CST ZND
4шт.
92-11062
LOCK WASHER,5/8"
4шт.
57
3133250R1
GASKET
1шт.
58
3133251R1
PLUG
1шт.
59
3133252R1
SPACER
BUSHING, (in place of) 44
1шт.
3058102R1
PLUG
2шт.
60
3134194R1
WASHER,40mm ID x 60mm OD x 1mm Thk
Order: 3146247R1, (-B6350) G
1шт.
60
3221295R1
WASHER,40mm ID x 64mm OD x 1mm Thk
(B6351-) G
1шт.
61
3221294R1
RING, SNAP
RING SNAP CIRCLIP, (B6351-) G
1шт.
61
933075R1
SNAP RING,M40, Ext
CIRCLIP, (-B6350) G
1шт.
Выбрано товаров: 127
