Запчасти Case IH 644 (1H13) - SPECIAL PARTS FOR SYNCHRONIZED TYPE SPEED REDUCER (SEE ASLO FIGURE 1G2) (04) - Drive Train

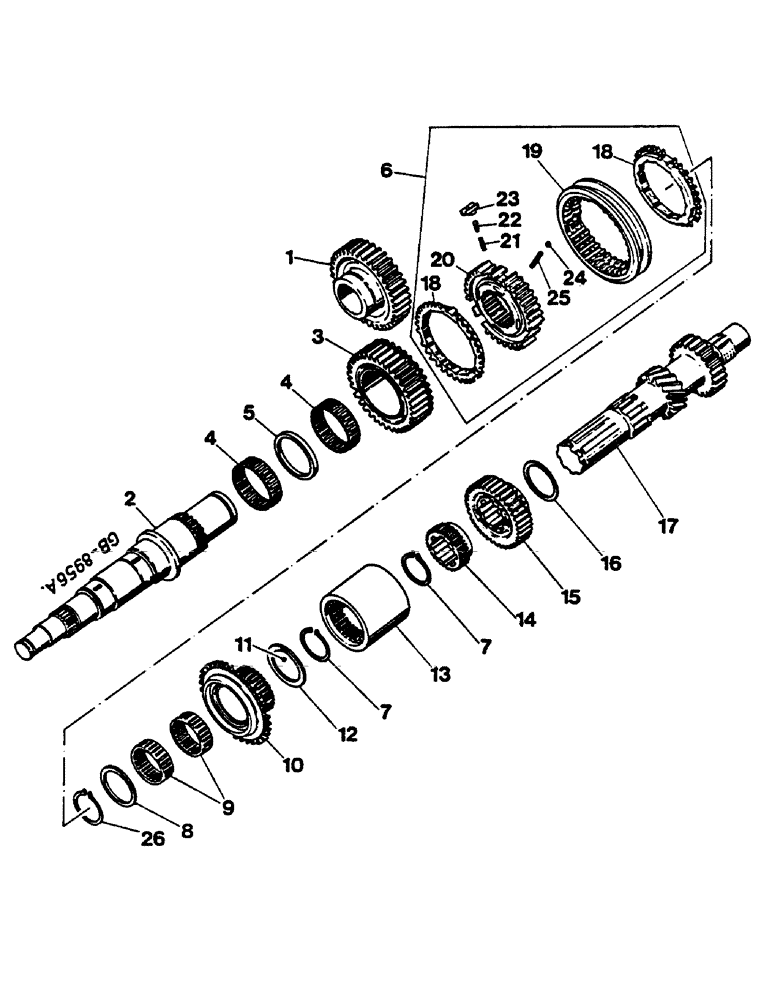

Схема запчастей Case IH 644 - (1H13) - SPECIAL PARTS FOR SYNCHRONIZED TYPE SPEED REDUCER (SEE ASLO FIGURE 1G2) (04) - Drive Train
2
17
14
22
20
21
10
13
26
11
12
25
15
4
18
5
8
19
18
6
23
16
7
3
4
24
9
1
7

Артикул

Название

Примечание

Количество

1

3147636R1

GEAR

35 teeth (Reduction 20%)

1шт.

2

3226411R1

COUNTERSHAFT

front (Reduction 20%)

1шт.

3

3226402R1

PINION

GEAR, 34 teeth (Reduction 20%)

1шт.

4

3226997R91

NEEDLE BEARING CAGE

needle

2шт.

5

3226396R1

SPACER

RING

1шт.

6

3226391R91

SYNCHRONIZER

1шт.

7

933088R1

SNAP RING,M50, Ext

2шт.

8

3226394R2

SPACER

RING

1шт.

9

3226994R91

NEEDLE BEARING CAGE,50mm ID x 58mm OD x 19.8mm W

2шт.

10

3226397R1

PINION

GEAR coupling

1шт.

11

211-1006

BALL,3/16" Dia

1шт.

12

3226395R2

WASHER

thrust

1шт.

13

3226399R1

SPLINED COUPLING

1шт.

14

3226400R1

PINION

GEAR coupling

1шт.

15

3226393R1

PINION

GEAR, 38 teeth

1шт.

16

3226401R1

SPACER

RING spacer, 744/844/844S

1шт.

17

3226410R1

SHAFT

COUNTER rear, 644

1шт.

17

3226409R1

COUNTERSHAFT

rear, 744/844/844S

1шт.

18

3146645R1

SYNCHRO RING

2шт.

19

3135831R1

COLLAR

shifter

1шт.

20

3226392R1

SYNCHRO BODY

1шт.

21

3135836R1

SPRING

3шт.

22

3135835R1

BALL STUD

BALL PIN BOLT

3шт.

23

189200220839

WEAR PAD

LATCH

3шт.

24

511-1060

BALL,6mm Dia

3шт.

25

3057503R1

SPRING

3шт.

26

3232850R1

RING, SNAP

RING SNAP CIRCLIP

1шт.

Выбрано товаров: 27
