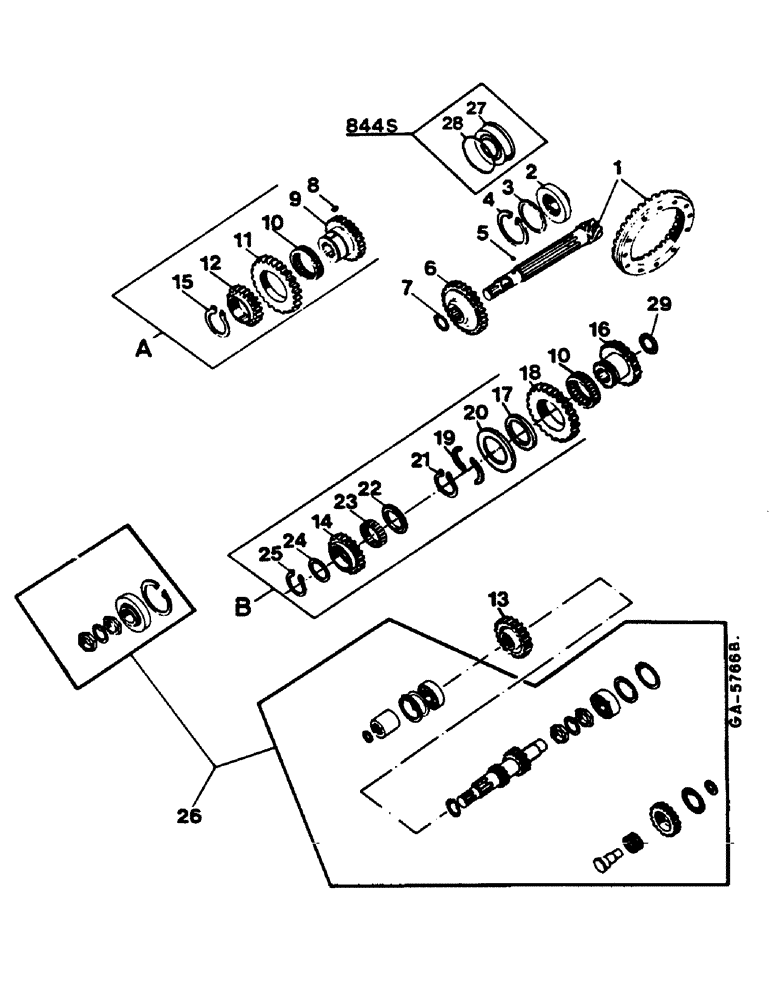

Запчасти Case IH 644 (1G12) - RANGE TRANSMISSION (04) - Drive Train

1

3142443R91

GEAR-SET

SHAFT spline, with drive bevel gear 10/43 teeth, 644

1шт.

1

3142459R92

GEAR, BEVEL

BEVEL GEAR SHAFT spline, with drive bevel gear 12/51 teeth, 744/844

1шт.

Not for 844S

1шт.

1

3217336R94

GEAR-SET

SHAFT spline, with drive bevel gear 12/51 teeth

1шт.

Only for 844S

1шт.

2

1963860C2

BEARING, ROLLER,55mm ID x 120mm OD x 31.5mm W

1шт.

3

3137095R1

SHIM

2.0 mm (.079")

1шт.

3

3137096R1

SHIM

2.1 mm (.083")

1шт.

3

3137097R1

SHIM

2.2 mm (.087")

1шт.

3

3137098R1

SHIM

2.3 mm (.091")

1шт.

3

3137099R1

SHIM

2.4 mm (.094")

1шт.

3

3137100R1

SHIM

2.5 mm (.098")

1шт.

3

3137101R1

SHIM

2.6 mm (.102")

1шт.

3

3137102R1

SHIM

2.7 mm (.106")

1шт.

3

3137103R1

SHIM

2.8 mm (.110"

1шт.

3

3137104R1

SHIM

2.9 mm (.114")

1шт.

4

3137136R1

TYRE/TIRE

CIRCLIP

2шт.

5

211-1006

BALL,3/16" Dia

744/844/844S

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR, ground speed pto, see Figure: 1i6 and 1i15

1шт.

7

J636303

RING, SNAP

RING SNAP CIRCLIP

1шт.

8

218211

DRIVING SPROCKET

644

1шт.

9

3134526R1

GEAR

sliding, reverse 37 teeth, 644

1шт.

10

3057771R92

BEARING, NEEDLE

WHEEL free

1шт.

11

3137191R1

GEAR

spur, field range 54 teeth, 644

1шт.

12

3145372R91

GEAR-SET

of, road range 35/40 teeth, 25 km, 644, Includes: Ref. 13

1шт.

12

3145373R91

GEAR-SET

of, road range 38/37 teeth, 30 km, 644, Includes: Ref. 13

1шт.

13

3142472R96

GEAR-SET

of, road range with 22c, 23c, 24 37/32 teeth, 25 km, (Y9543-) G, 744/844/844S, Includes: Ref. 14

1шт.

13

3147452R97

GEAR-SET

PACKAGE service 25 km, (-Y9542) G, 744/844/844S, Includes: Ref. 14

1шт.

13

3142468R96

GEAR-SET

of, road range, with 22c, 23c, 24 35/34 teeth, (Y9543-) G, 744/844/844S, Includes: Ref. 14

1шт.

14

3147453R97

GEAR-SET

PACKAGE service, 30 km, (-Y9542) G, 744/844/844S

1шт.

15

933847R1

SNAP RING,M80, Ext

644

1шт.

16

3217335R3

GEAR

sliding reverse, 37 teeth, 25/30 km, (Y9543-) G, 744/844/844S

1шт.

16

3147452R97

GEAR-SET

PACKAGE service, 25 km, (-Y9542) G, 744/844/844S

1шт.

16

3147453R97

GEAR-SET

PACKAGE service, 30 km, (-Y9542) G, 744/844/844S

1шт.

17

3147350R1

WASHER

744/844/844S

1шт.

18

3142477R3

GEAR

spur, field range 54 teeth, 25/30 km, (Y9543-) G, 744/844/844S

1шт.

18

3147452R97

GEAR-SET

PACKAGE service, 25 km, (-Y9542) G, 744/844/844S

1шт.

18

3147453R97

GEAR-SET

PACKAGE service, 30 km, (-Y9542) G, 744/844/844S

1шт.

19

3147459R1

WASHER

two-piece, 744/844/844S

2шт.

20

3142478R1

THRUST WASHER

thrust, 744/844/844S

1шт.

21

934432R1

SNAP RING,M88, Ext

744/844/844S

1шт.

22

3216409R1

SPACER

RING, 7.7 mm, (Y9543-) G, 744/844/844S

1шт.

22

3142475R4

THRUST WASHER

RING spacer, 6.7 mm, (-Y9542) G, 744/844/844S

1шт.

23

3147941R91

BEARING, NEEDLE

(Y9543-) G, 744/844/844S

1шт.

23

3142466R2

BUSHING

(-Y9542) G, 744/844/844S

1шт.

24

3147184R3

THRUST WASHER

thrust, 3.0 mm (.118"), 744/844/844S

1шт.

24

3147298R3

THRUST WASHER

thrust, 3.2 mm (.126"), 744/844/844S

1шт.

24

3147299R3

THRUST WASHER

thrust, 3.4 mm (.134"), 744/844/844S

1шт.

24

3147300R3

THRUST WASHER

thrust, 3.6 mm (.142"), 744/844/844S

1шт.

24

3147301R3

THRUST WASHER

thrust, 3.8 mm (.150"), 744/844/844S

1шт.

25

933946R1

RING, SNAP

RING SNAP CIRCLIP, 744/844/844S

1шт.

26

NSS

NOT SOLD SEPARAT

see page 1G7

1шт.

27

3147786R91

ROLLER BEARING,55 mm ID x 127 mm OD x 45.5 mm

tapered roller

1шт.

Only for 844S

1шт.

28

3147646R1

SHIM

0.1 mm

1шт.

Only for 844S

1шт.

28

3147647R1

SHIM

0.3 mm

1шт.

Only for 844S

1шт.

28

3147648R1

SHIM

0.5 mm

1шт.

Only for 844S

1шт.

28

3147649R1

SHIM

1.0 mm

1шт.

Only for 844S

1шт.

29

3220024R92

SPRING

(Z5803-xxx), 744/844/844S

1шт.
