Запчасти Case IH 644 (1G02) - RANGE TRANSMISSION 744/844/844S (04) - Drive Train

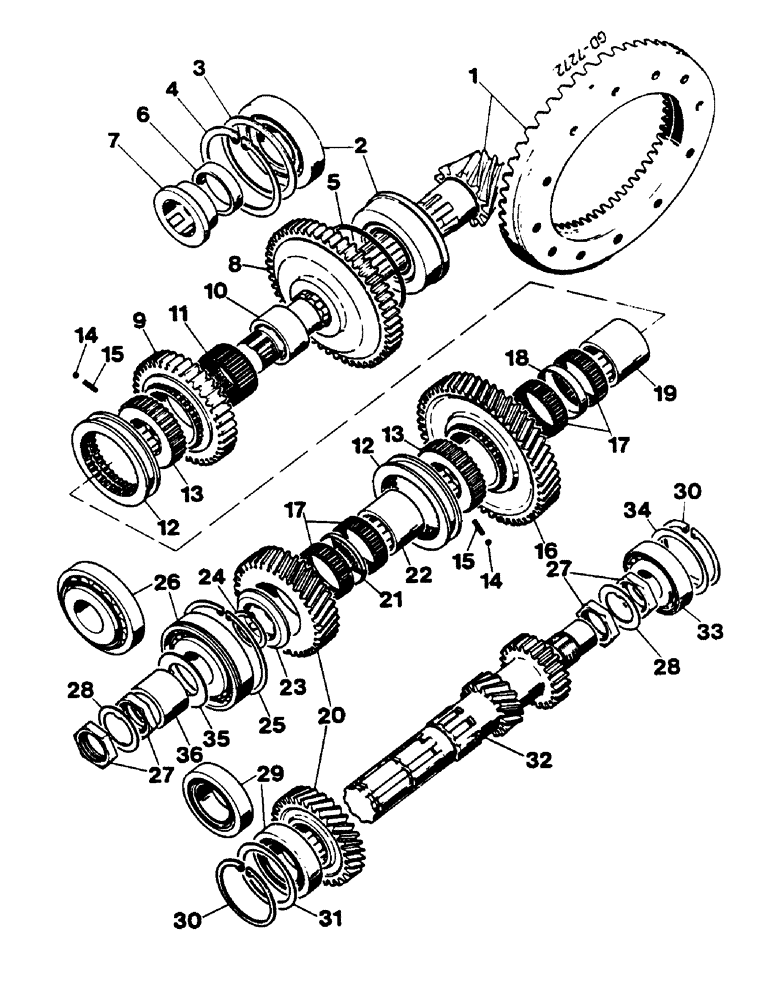

Схема запчастей Case IH 644 - (1G02) - RANGE TRANSMISSION 744/844/844S (04) - Drive Train
13
2
9
4
17
8
28
33
31
16
24
28
12
10
11
12
22
25
35
29
14
34
13
1
15
18
23
17
5
21
7
30
20
27
6
26
27
19
15
32
14
30
3
36

Артикул

Название

Примечание

Количество

1

3220020R94

GEAR, BEVEL

BEVEL GEAR SHAFT spline, with drive bevel gear, 12/51 teeth

1шт.

1

3221421R93

GEAR, BEVEL

BEVEL GEAR SHAFT spline, with drive bevel gear, 12/51 teeth

1шт.

Version with speed reducer

1шт.

2

1963860C2

BEARING, ROLLER,55mm ID x 120mm OD x 31.5mm W

744/844

1шт.

2

3147787R91

ROLLER BEARING,55 mm ID x 127 mm OD x 45.5 mm

844S

1шт.

2

3147787R91

ROLLER BEARING,55 mm ID x 127 mm OD x 45.5 mm

744/844/844S

1шт.

Version with speed reducer

1шт.

3

3137095R1

SHIM

2.0 mm (.079") 744/844

1шт.

3

3137096R1

SHIM

2.1 mm (.083") 744/844

1шт.

3

3137097R1

SHIM

2.2 mm (.087") 744/844

1шт.

3

3137098R1

SHIM

2.3 mm (.091") 744/844

1шт.

3

3137099R1

SHIM

2.4 mm (.094") 744/844

1шт.

3

3137100R1

SHIM

2.5 mm (.098") 744/844

1шт.

3

3137101R1

SHIM

2.6 mm (.102") 744/844

1шт.

3

3137102R1

SHIM

2.7 mm (.106") 744/844

1шт.

3

3137103R1

SHIM

2.8 mm (.110") 744/844

1шт.

3

3137104R1

SHIM

2.9 mm (.114") 744/844

1шт.

4

3137156R1

CIRCLIP

744/844

1шт.

5

3147646R1

SHIM

0.1 mm 844S

1шт.

5

3147647R1

SHIM

0.3 mm 844S

1шт.

5

3147648R1

SHIM

0.5 mm 844S

1шт.

5

3147649R1

SHIM

1.0 mm 844S

1шт.

5

3147646R1

SHIM

0.1 mm 744/844/844S

1шт.

Version with speed reducer

1шт.

5

3147647R1

SHIM

0.3 mm 744/844/844S

1шт.

Version with speed reducer

1шт.

5

3147648R1

SHIM

0.5 mm 744/844/844S

1шт.

Version with speed reducer

1шт.

5

3147649R1

SHIM

1.0 mm 744/844/844S

1шт.

Version with speed reducer

1шт.

6

3221691R1

BUSHING

RING spacer, 744/844

1шт.

7

3221420R2

BUSHING

RING spacer, 744/844

1шт.

Version w/o ground speed PTO

1шт.

8

3221291R3

PINION

54 teeth

1шт.

9

3220016R3

PINION

GEAR reverse range, 37 teeth

1шт.

10

3221419R1

SPLINED COUPLING

BUSHING bearing

1шт.

11

3223127R91

BEARING, NEEDLE,65mm ID x 70mm OD x 29.8mm W

1шт.

12

3221690R2

COLLAR

shifter

2шт.

13

3221689R2

PINION

RING coupling

2шт.

14

934965R1

BALL,7.5mm OD, Gr 28

6шт.

15

3221840R2

SPRING

6шт.

16

3221682R1

GEAR

field range, 54 teeth

1шт.

16

3230155R1

PINION

GEAR field range, 54 teeth

1шт.

Version with ground speed PTO

1шт.

17

3221400R92

NEEDLE BEARING,Needle, 65mm ID x 70mm OD x 20mm W

4шт.

18

3221412R1

SPACER

RING

1шт.

18

3221412R1

SPACER

RING

1шт.

19

3221417R1

BUSHING

bearing

1шт.

20

3221836R94

GEAR-SET

of road range, 37/32 teeth 25 km

1шт.

20

3221837R94

GEAR-SET

of road range, 35/34 teeth 30 km

1шт.

21

3221411R1

SPACER

RING

1шт.

22

3221418R1

SPLINED COUPLING

BUSHING bearing

1шт.

23

3221414R1

SPACER

7.4 mm

1шт.

23

3221416R1

SPACER

7.6 mm

1шт.

23

3221407R1

SPACER

7.8 mm

1шт.

23

3221415R1

SPACER

8.0 mm

1шт.

23

3221413R1

SPACER

8.2 mm

1шт.

24

933946R1

RING, SNAP

RING SNAP CIRCLIP

1шт.

25

3137156R1

CIRCLIP

744/844/844S

1шт.

Version with speed reducer

1шт.

26

3221424R91

TAPERED BEARING

1шт.

26

3221424R91

TAPERED BEARING

1шт.

Version with ground speed PTO

1шт.

27

3057278R2

RING NUT

ring

1шт.

28

3139218R1

WASHER

WASHER

1шт.

29

3003911R1

TAPERED BEARING

1шт.

29

1964250C1

TAPERED BEARING

1шт.

Version with speed reducer

1шт.

30

3146814R1

RING, SNAP

RING SNAP CIRCLIP

2шт.

31

3146676R1

WASHER

1шт.

32

3221688R1

COUNTERSHAFT

rear

1шт.

32

3221687R1

COUNTERSHAFT

rear

1шт.

Version with speed reducer

1шт.

33

3003911R1

TAPERED BEARING

1шт.

34

3147293R1

WASHER

1шт.

35

3147632R1

THRUST WASHER

1шт.

Version with speed reducer

1шт.

36

3148594R1

BUSHING

1шт.

Version with speed reducer

1шт.

Выбрано товаров: 79
