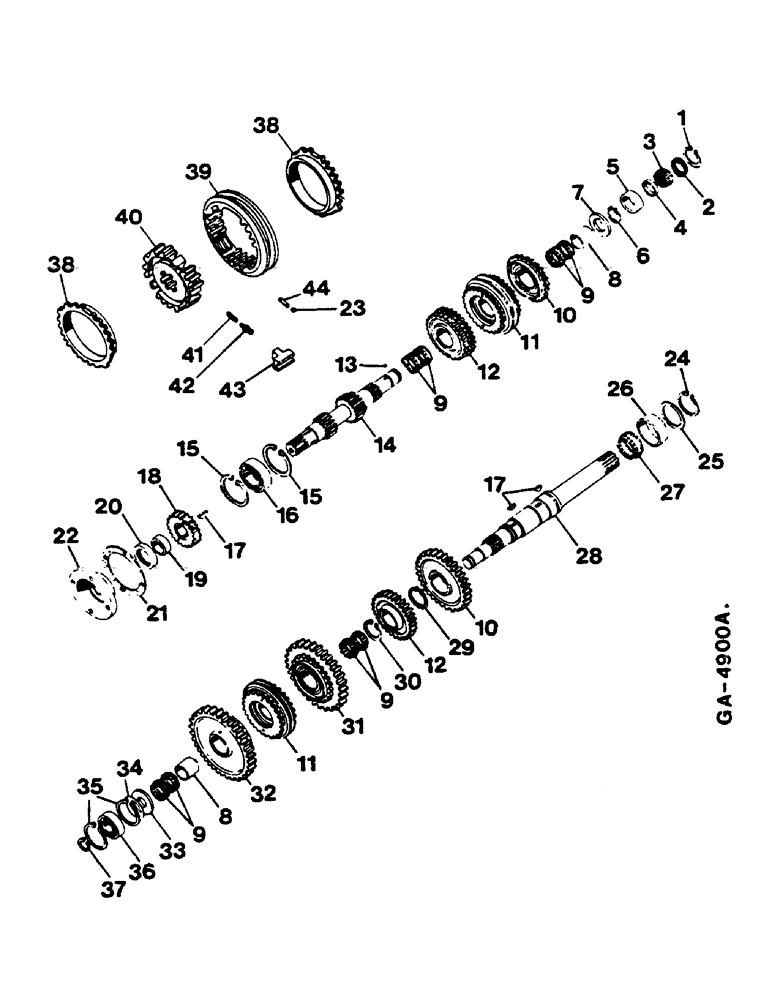

Запчасти Case IH 644 (1F12) - GEARSHIFT TRANSMISSION, SYNCHRONIZER (04) - Drive Train

1

3142144R1

RING, SNAP

RING SNAP CIRCLIP

1шт.

2

3142146R1

WASHER

distance

1шт.

3

3146313R91

BEARING ASSY,33mm ID x 49mm OD x 14.8mm W

roller

1шт.

4

3142145R1

SPACER

RING

1шт.

5

3146314R1

BUSHING,49mm ID x 61mm OD x 19mm L

bearing

1шт.

6

933683R1

SNAP RING,M36, Ext

1шт.

7

3057258R2

THRUST WASHER

6.40 mm (.252")

1шт.

7

3058628R2

THRUST WASHER

6.45 mm (.254")

1шт.

7

3058629R2

THRUST WASHER

6.50 mm (.256")

1шт.

7

3058630R2

THRUST WASHER

6.55 mm (.258")

1шт.

7

3058631R2

THRUST WASHER

6.60 mm (.260")

1шт.

7

3058632R2

THRUST WASHER

6.65 mm (.262")

1шт.

7

3058633R2

THRUST WASHER

6.70 mm (.264")

1шт.

7

3058634R2

THRUST WASHER

6.75 mm (.266")

1шт.

7

3058635R2

THRUST WASHER

6.80 mm (.268")

1шт.

7

3058636R2

THRUST WASHER

6.85 mm (.270")

1шт.

8

3057253R1

NEEDLE BEARING

RING needle, bearing

2шт.

9

3145445R92

BEARING SET

needle

4шт.

10

3145436R91

GEAR-SET

3rd speed 26/45, 25 km/h = 15.5 mph

1шт.

10

3145435R91

GEAR-SET

3rd speed 27/44, 30 km/h = 18.6 mph

1шт.

11

3146644R91

SYNCHRONIZER

with: 23 and 38 - 44

2шт.

12

3145437R91

GEAR

set of, 4th speed 36/40, 25 km/h = 15.5 mph, 644

1шт.

12

3142823R91

GEAR-SET

4th speed 36/39, 25 km/h = 15.5 mph, 744/844/844S

1шт.

12

3136809R91

GEAR-SET

4th speed 37/38, 30 km/h = 18.6 mph, 644

1шт.

12

3142828R91

GEAR-SET

4th speed 37/39, 30 km/h = 18.6 mph, 744/844/844S

1шт.

13

211-1006

BALL,3/16" Dia

1шт.

14

3145442R1

SHAFT

main drive, single clutch, 19/14 teeth, 25 km/h = 15.5 mph

1шт.

14

3145450R1

SHAFT

main drive, single clutch, 19/13 teeth, 30 km/h = 18.6 mph

1шт.

14

3145453R1

SHAFT

main drive, double clutch, 19/14 teeth, 25 km/h = 15.5 mph

1шт.

14

3145452R1

SHAFT

main drive, double clutch, 19/13 teeth, 30 km/h = 18.6 mph

1шт.

15

933077R1

SNAP RING,M90, Int

CIRCLIP

2шт.

16

ST436

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

644

1шт.

16

3137503R91

BEARING, ROLLER,40mm ID x 90mm OD x 23mm W

744/844/844S

1шт.

17

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

3шт.

18

3134541R91

GEAR-SET

pto drive 28/56 teeth

1шт.

19

3057315R1

SPACER

RING

1шт.

20

3131160R1

SEAL oil

1шт.

21

3134518R1

GASKET,0.5mm Thk

1шт.

22

3057187R3

RETAINER

644/744

1шт.

22

3145775R1

FLANGE

744/844/844S

1шт.

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

4шт.

492-11031

LOCK WASHER,5/16"

4шт.

23

511-1060

BALL,6mm Dia

3шт.

24

933089R1

SNAP RING,M60, Ext

1шт.

25

3057257R1

SPRING WASHER

spring

1шт.

26

3057256R1

NEEDLE BEARING

RING needle bearing, outer

1шт.

27

3057255R91

NEEDLE BEARING CAGE,60mm ID x 68mm OD x 23mm W

1шт.

28

3057073R2

COUNTERSHAFT

front, without multi-disc clutch

1шт.

29

933030R1

SNAP RING,M55, Ext

CIRCLIP

1шт.

30

933088R1

SNAP RING,M50, Ext

1шт.

31

3145440R91

GEAR

2nd speed, 52 teeth

1шт.

32

3142826R91

GEAR

1st speed, 61 teeth, 25 km/h = 15.5 mph

1шт.

32

3142827R91

GEAR

1st speed, 62 teeth, 30 km/h = 18.6 mph

1шт.

33

3057254R1

THRUST WASHER

thrust, 45 x 30.2 x 5.25 mm

1шт.

33

3057254R1

THRUST WASHER

thrust, 68 x 30.2 x 10 mm

1шт.

33

3057254R1

THRUST WASHER

thrust, 68 x 30.2 x 15.3 mm

1шт.

34

3058637R1

SHIM,30.07mm ID x 42.33mm OD x 0.1mm Thk

SHIM, 0.1 mm (.004")

1шт.

34

3058638R1

SHIM,30.07mm ID x 42.33mm OD x 0.2mm Thk

SHIM, 0.2 mm (.008")

1шт.

34

3058639R1

SHIM,30.07mm ID x 42.33mm OD x 0.3mm Thk

SHIM, 0.3 mm (.012")

1шт.

34

3058640R1

SHIM

0.5 mm (.020")

1шт.

35

933076R1

SNAP RING,M72, Int

CIRCLIP

2шт.

36

ST241

BALL BEARING,30 mm ID x 72 mm OD x 19 mm

ball, 644

1шт.

36

3137154R91

BEARING

roller, 744/844/844S

1шт.

37

933086R1

SNAP RING,M30, Ext

1шт.

38

3146645R1

SYNCHRO RING

2шт.

39

3135831R1

COLLAR

shifter

1шт.

40

3135834R1

SYNCHRO BODY

1шт.

41

3135836R1

SPRING

3шт.

42

3135835R1

BALL STUD

BALL PIN BOLT

3шт.

43

189200220839

WEAR PAD

LATCH

3шт.

44

3057503R1

SPRING

3шт.
