Запчасти Case IH 644 (1F07) - RANGE SHIFTER MECHANISM, 744/844/844S VERSION W/O POWER- SHIFT TRANSMISSION (XXX-) (04) - Drive Train

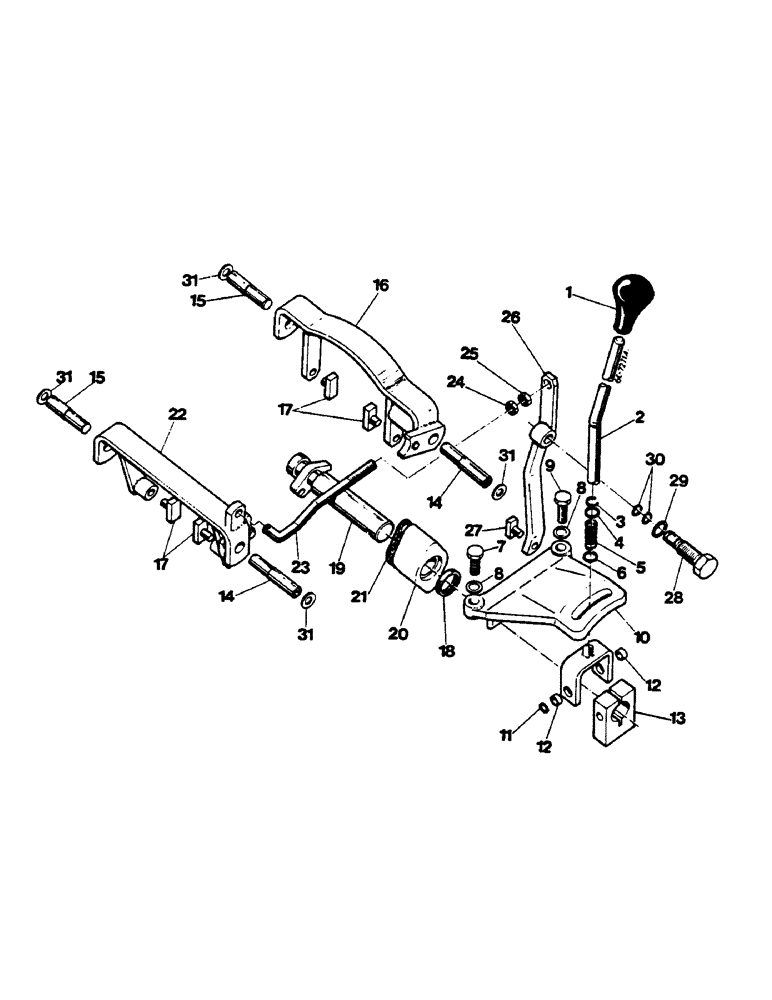

Схема запчастей Case IH 644 - (1F07) - RANGE SHIFTER MECHANISM, 744/844/844S VERSION W/O POWER- SHIFT TRANSMISSION (XXX-) (04) - Drive Train
5
1
11
6
12
25
13
16
31
17
27
23
18
7
8
4
21
17
29
3
30
2
8
10
9
15
12
31
24
15
26
31
20
22
14
14
31
28
19

Артикул

Название

Примечание

Количество

1

3223643R1

KNOB

BALL shifter, lever

1шт.

1

3230671R2

BUTTON

BALL shifter, lever

1шт.

For units with synchron type speed reducer

1шт.

2

3223593R93

LEVER

speed range

1шт.

2

3230032R1

LEVER

speed range

1шт.

For units with synchron type speed reducer

1шт.

3224437R1

BOLT

BOLT, M10 x 80 mm

1шт.

933999R1

THIN NUT,M10 x 1, Thin

M10

1шт.

3

933328R1

SNAP RING,M16, Ext

1шт.

4

933349R1

WASHER,M17 ID x 30 OD x 3 Thk

1шт.

5

3145379R1

SPRING

1шт.

6

934202R1

BELLEVILLE WASHER,M16 Bolt Size x 31.5mm OD x 1.75mm Thk

spring

1шт.

7

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

1шт.

8

934364R1

WASHER

2шт.

9

326-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

1шт.

10

3221924R4

GUIDE

lever

1шт.

11

495-21044

WASHER,3/8"

2шт.

12

3223597R2

BUSHING

spacer

2шт.

13

3223596R1

CLAMP

PIECE

1шт.

14

3223578R1

STRAIGHT PIN

guide, 70 mm

2шт.

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

15

3221943R1

PIN

guide, 60 mm

2шт.

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

16

3221843R94

FORK

ARM shifting, reverse and field range

1шт.

17

3223614R2

SLIDE

BLOCK

4шт.

18

3145060R91

OIL SEAL,30mm ID x 40mm OD x 8mm Thk

oil

1шт.

19

3221842R1

SHAFT

PIN shifting

1шт.

20

3221841R1

FLANGE

1шт.

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

2шт.

21

NSS

NOT SOLD SEPARAT

GASKET plastic

1шт.

22

3221847R92

ARM

shifting, field range - road range

1шт.

23

3221392R1

LINKAGE

ROD connecting

1шт.

432-816

COTTER PIN,1/8" x 1"

1шт.

24

329-146

JAM NUT,Jam, 3/8"-16, G5

1шт.

25

3223467R1

NUT

3/8"

1шт.

26

3221388R92

LEVER

locking, for ground speed PTO

1шт.

27

3057313R1

SLIDE

BLOCK

2шт.

28

3057801R1

SCREW

lock

1шт.

29

95-81056

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

1шт.

30

933120R1

SNAP RING,M15, Ext

CIRCLIP

2шт.

31

25709R1

WASHER

4шт.

Выбрано товаров: 41
