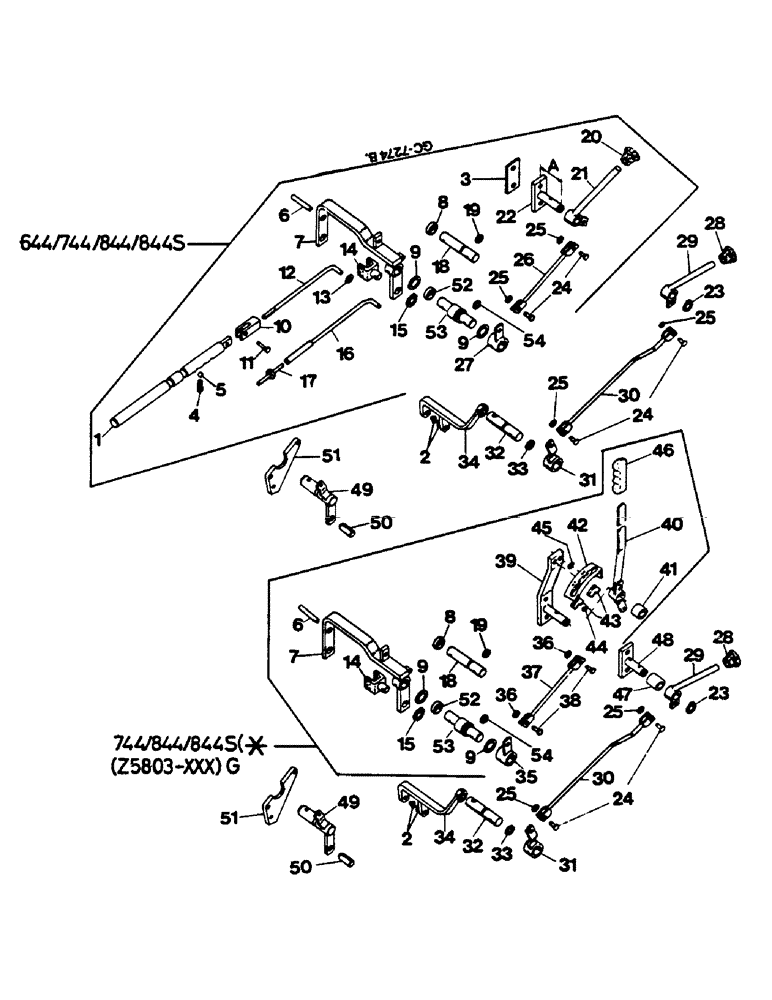

Запчасти Case IH 644 (1F02) - RANGE SHIFTER MECHANISM (04) - Drive Train

1

3137966R1

ROD

range shift, 644

1шт.

36

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

1

3217313R1

ROD

range shift, 744/844/844S (Y9543-) G

1шт.

1

3145884R2

SHAFT

range shift, 744/844/844S (-Y9542) G

1шт.

2

3223614R2

SLIDE

BLOCK

1шт.

3

3148575R1

SPACER

BAR spacer

1шт.

4

714409R1

SPRING

1шт.

5

3072917R1

BALL,11/32" Dia

1шт.

6

787583R2

PIN

1шт.

7

3145351R91

FORK

ARM range, shift

1шт.

8

3145355R1

SPACER

SPARE PART BUSHING, 33.7 x 3.2 x 13 mm (-xxx)

1шт.

9

Q3481

WASHER

Order: 615226R1

1шт.

10

3057126R2

CLEVIS

BRACKET yoke

1шт.

11

3145350R1

PIN

headed

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

12

787829R2

ROD

connecting, 644

1шт.

12

787829R2

ROD

connecting, 744/844/844S (Z5803-xxx) G

1шт.

Version with power-shift transmission

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

13

95-81069

WASHER,0.34" ID x 0.75" OD x 0.07" Thk

1шт.

14

3142678R1

RAIL ASSY.

BLOCK sliding, 644

1шт.

14

3142679R1

SLIDE

BLOCK, 744/844/844S

1шт.

15

933328R1

SNAP RING,M16, Ext

2шт.

16

3147354R91

ROD

connecting, 744/844/844S (-Z5802) G

1шт.

16

3147354R91

ROD

connecting, 744/844/844S (xxx-)

1шт.

Version with power-shift transmission

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

17

787063R11

ROD

adjusting, 744/844/844S (-Z5802) G

1шт.

17

787063R11

ROD

adjusting, 744/844/844S (xxx-)

1шт.

Version with power-shift transmission

1шт.

125-10003

NUT,3/8"-16, G5, LH

1шт.

18

3145362R1

PIN

25.4 mm "0" (-xxx)

1шт.

838-5840

LOCK PIN,M8 x 40, Slotted

2шт.

19

714444R1

O-RING,3mm Thk x 19mm ID, 75 Duro

(-xxx)

1шт.

20

3147379R1

KNOB

BALL shifter, lever

1шт.

21

3147080R92

LEVER

speed range

1шт.

21

3230689R1

ROD

LEVER speed, range only for, 644

1шт.

For units with synchron type speed reducer

1шт.

22

3147084R91

PIN

pivot, A = 40 mm

1шт.

22

3147659R91

PIVOT

PIN, A = 69 mm

1шт.

Version with speed reducer

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

713608R91

LUBE NIPPLE,90 Degree, M8 x 1

1шт.

23

933123R1

SNAP RING,M20, Ext

1шт.

24

932855R1

HEADED PIN,M8 x 20

headed

1шт.

934788R1

COTTER PIN,M2 x 16

2 x 16 mm

1шт.

25

934033R1

WASHER,M8 x 15 x 2

1шт.

26

3147334R91

ROD

1шт.

27

3147087R91

ARM

shift

1шт.

28

3217856R2

KNOB

BALL shifter, lever

1шт.

Version with speed reducer

1шт.

29

3147655R92

LEVER

control

1шт.

Version with speed reducer

1шт.

30

3147653R92

ROD

1шт.

Version with speed reducer

1шт.

31

3147650R91

ARM

shift (-C2430) G

1шт.

Version with speed reducer

1шт.

32

NSS

NOT SOLD SEPARAT

PIN, Order: 3225676R91

1шт.

Version with speed reducer

1шт.

838-5840

LOCK PIN,M8 x 40, Slotted

1шт.

33

3058327R1

O-RING,3.5mm Thk x 24mm ID, 75 Duro

1шт.

Version with speed reducer

1шт.

34

3147641R92

FORK

ARM

1шт.

Version with speed reducer

1шт.

838-5850

LOCK PIN,M8 x 50, Slotted

1шт.

35

3220769R91

ARM

shift

1шт.

37

3220772R91

ROD

1шт.

38

932845R1

HEADED PIN,M8 x 22

2шт.

934788R1

COTTER PIN,M2 x 16

2 x 16 mm

2шт.

39

3220763R93

PIVOT

PIN

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

713608R91

LUBE NIPPLE,90 Degree, M8 x 1

1шт.

40

3220759R93

LEVER

speed range

1шт.

41

3147657R1

SPACER

version w/o speed reducer

1шт.

42

3220765R92

GUIDE

lever

1шт.

931618R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

43

3220768R1

SUPPORT

PLATE

2шт.

931281R1

HEX SOC SCREW,M6 x 10mm, Cl 8.8

4шт.

44

3078056R1

WASHER,M6.4 ID x 12 OD x 1.6 Thk

4шт.

45

934006R1

WASHER,M8 x 16 x 1.6

2шт.

46

3220835R1

HANDLE

BALL shifter, lever

1шт.

47

3224439R1

BUSHING

SPACER

1шт.

Version with speed reducer

1шт.

48

3147659R91

PIVOT

PIN

1шт.

Version with speed reducer

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

713608R91

LUBE NIPPLE,90 Degree, M8 x 1

1шт.

49

3225676R91

ARM

ARM shift

1шт.

Version with speed reducer

1шт.

50

3226522R1

SCREW

PIN latch, (C2431-) G

1шт.

Version with speed reducer

1шт.

51

3226523R1

SEGMENT

(C2431-) G

1шт.

Version with speed reducer

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

934675R1

WASHER,M8 x 16 x 1.6

2шт.

52

3221849R1

SPACER

SPARE PART BUSHING, 38 x 3 x 13 mm (xxx-)

1шт.

53

3221850R1

PIN

30.19 mm "0" (xxx-)

1шт.

838-5840

LOCK PIN,M8 x 40, Slotted

2шт.

54

3058327R1

O-RING,3.5mm Thk x 24mm ID, 75 Duro

(xxx-)

1шт.
