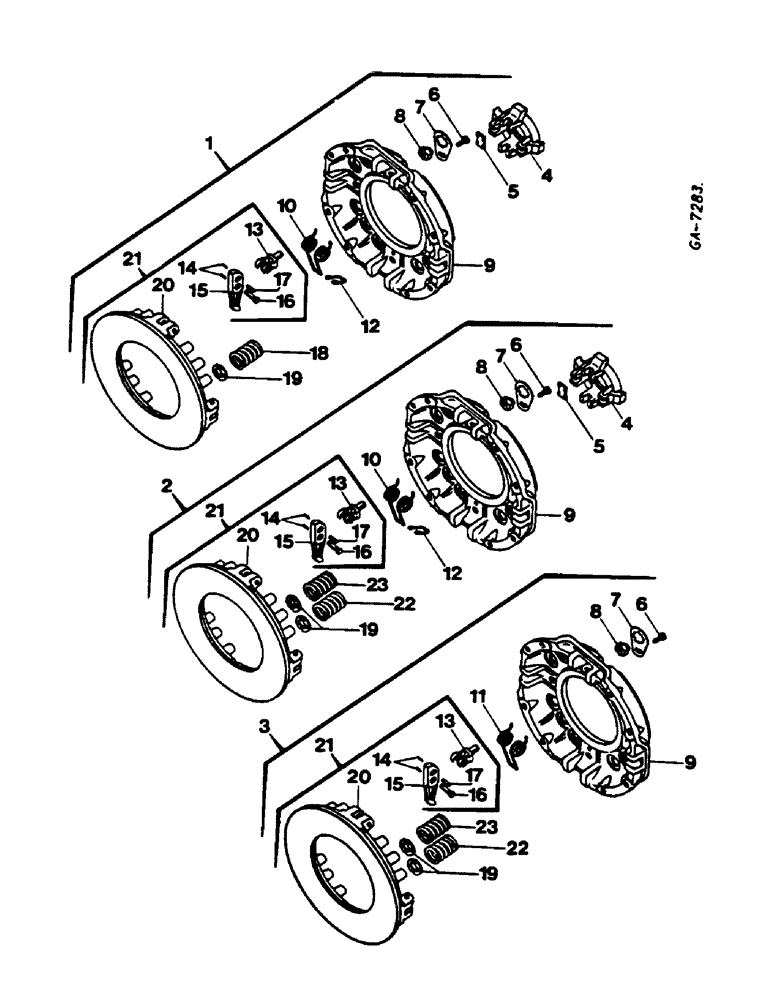

Запчасти Case IH 644 (1D19) - CLUTCH MECHANISM, SINGLE CLUTCH (04) - Drive Train

1

3057150R92

MECHANISM

CLUTCH (-xxx), 644/744

1шт.

2

3142129R91

PLATE, THRUST

CLUTCH (-xxx), 644/744

1шт.

3

3145303R1

CLUTCH ASSEMBLY

SPARE PART (-xxx), 844/844S

1шт.

4

3058378R2

RING

release, 644/744

1шт.

5

712688R1

PLATE

wearing, 644/744

4шт.

6

712684R1

SCREW,Sltd Pan Hd, M5 x 10

4шт.

712687R1

WASHER

lock

4шт.

7

712686R2

DISC

LOCK ball nut

4шт.

8

712685R1

NUT

ball

4шт.

9

3058377R1

HOUSING

CASE

1шт.

10

712682R1

SPRING

retainer, 644/744

4шт.

11

3137962R1

RETAINER

SPRING, 844/844S

4шт.

12

3058379R1

SPRING

lever, 644/744

4шт.

13

3058384R2

YOKE

UNIVERSAL JOINT YOKE adjusting

4шт.

14

712692R1

NEEDLE

bearing

152шт.

15

3058382R12

LEVER

release

4шт.

3058382R12

LEVER

release, Includes: Ref. 13 - 16

4шт.

16

3056778R1

PIN

headed

4шт.

432-610

COTTER PIN,3/32" x 5/8"

4шт.

17

712691R1

PIN

straight

4шт.

18

3136863R1

SPRING

main (-xxx), 644/744

12шт.

19

712683R1

DISC

insulating

12шт.

20

3058381R1

PLATE

pressure

1шт.

21

3058380R91

PLATE

pressure

1шт.

22

3142126R1

SPRING

main

8шт.

23

3142127R1

SPRING

main

4шт.
