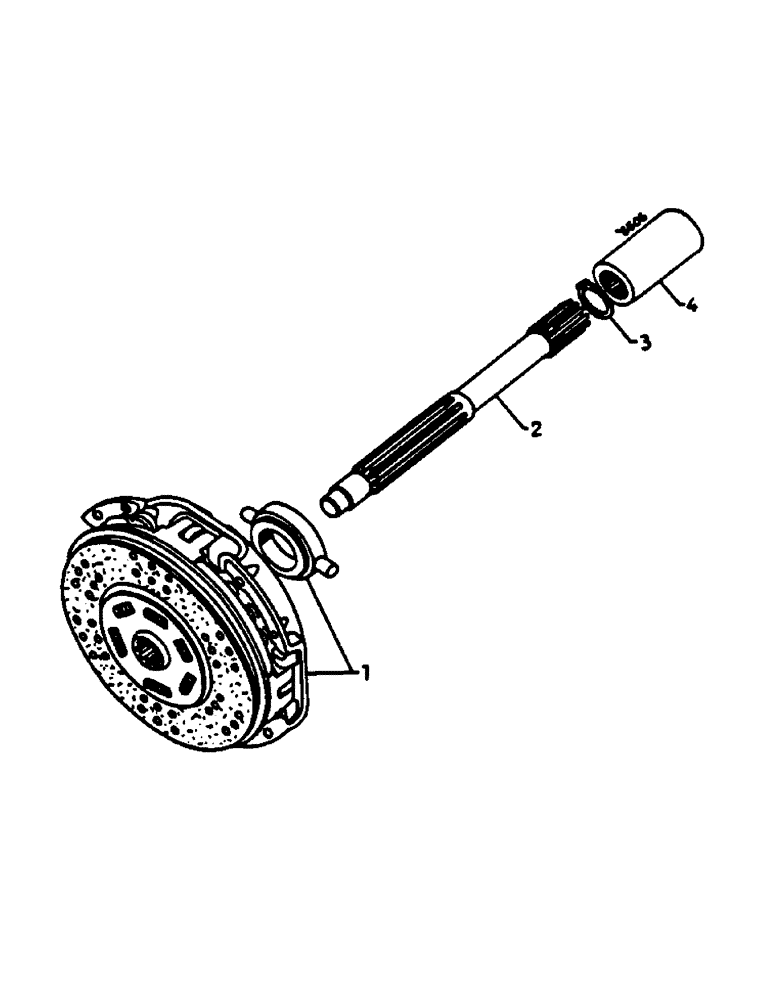

Запчасти Case IH 644 (1D14) - SINGLE CLUTCH 644/744 (04) - Drive Train

1

CLUTCH single, see Figure: 1D17

1шт.

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

8шт.

492-11031

LOCK WASHER,5/16"

8шт.

2

3131186R1

SHAFT

clutch

1шт.

3

933029R1

SNAP RING,M35, Ext

CIRCLIP

2шт.

4

3131184R1

SPLINED COUPLING

1шт.
