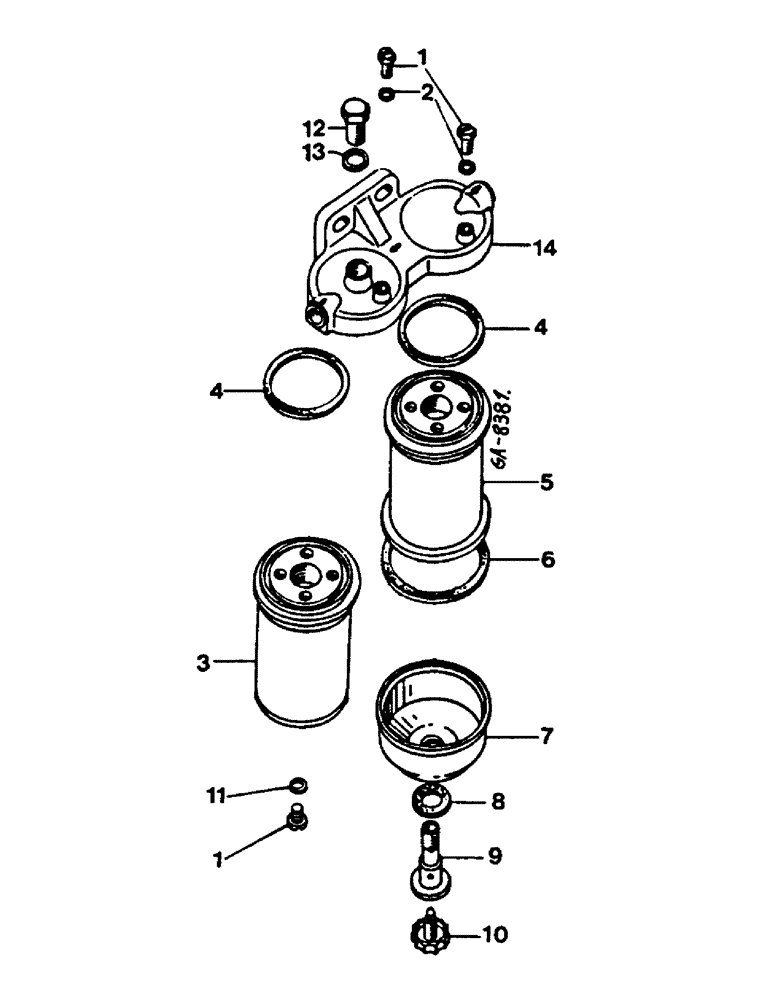

Запчасти Case IH 644 (3B13) - FUEL FILTER "BOSCH", 644 (074716-) E, 744 (559348-) E, 844 ( 016859-) E, 844S ( 020609-) E Power

1

3218705R93

FILTER

fuel, Includes: Ref. 1 - 14

1шт.

1

3144780R1

SCREW

air vent

3шт.

2

933696R1

SEALING RING,M6 x 10 x 1

2шт.

3

3218794R91

FILTER

ELEMENT, with: 1, 4 and 11

1шт.

4

3132193R1

SEALING RING,62.4mm ID x 70mm OD x 4mm Thk

SEAL

2шт.

5

3132428R2

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order 3132428R2MP

ELEMENT, with: 4 and 6

1шт.

6

3132191R1

RING

SEAL

1шт.

7

3132197R1

BOWL

glass

1шт.

8

3132192R1

RING

packing

1шт.

9

3132194R1

SCREW,M12 x 1.5 x 68mm

hollow

1шт.

10

3228407R1

PLUG

drain

1шт.

11

933696R1

SEALING RING,M6 x 10 x 1

1шт.

12

NSS

NOT SOLD SEPARAT

PLUG, 712616R1

1шт.

13

NSS

NOT SOLD SEPARAT

RING packing, 933610R1

1шт.

14

3218898R1

HEAD

COVER housing, 3218087R1

1шт.
