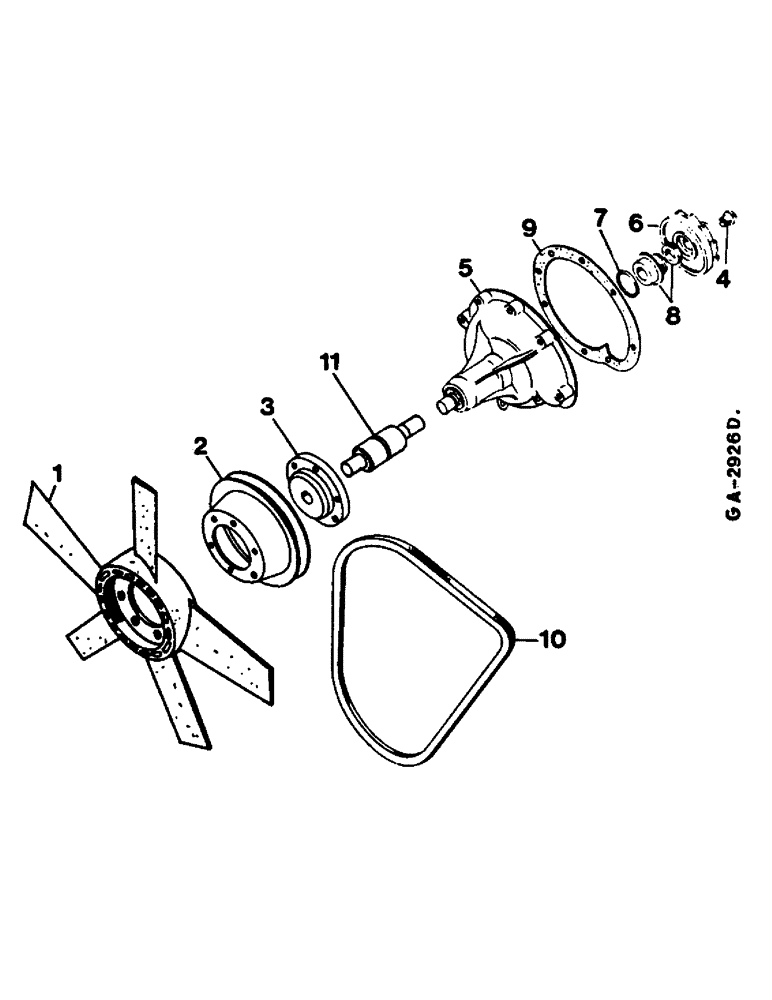

Запчасти Case IH 644 (3B07) - WATER PUMP, FAN Power

3136217R91

WATER PUMP

with: 3 - 6, 8 and 11, 644

1шт.

3132738R94

PUMP, WATER

with: 3 - 6, 8 and 11, 744

1шт.

3132738R94R

REMAN-WATER PUMP

with: 3 - 6, 8 and 11, 744

1шт.

3132738R94C

CORE-WATER PUMP

Return Number

1шт.

3132739R93

PUMP, WATER

Pump

1шт.

3132739R92GV

WATER PUMP

Value, Water Pump Assy.

1шт.

735099C91

REMAN-WATER PUMP

Remanufactured, WATER PUMP

1шт.

1928119C1

CORE-WATER PUMP

Return Number

1шт.

3132741R94

PUMP, WATER

with: 3 - 6, 8 and 11, 844/844S

1шт.

772418

BOLT,Hex, 5/16" x 3 1/2", Gr 5

5/16" x 89 mm

4шт.

492-11031

LOCK WASHER,5/16"

8шт.

425-105

NUT,5/16"-18, G5

4шт.

1

3218984R1

FAN

644/744/844

1шт.

1

3218984R1

FAN

844S

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

6шт.

492-11031

LOCK WASHER,5/16"

6шт.

2

3055178R1

PULLEY

belt

1шт.

3

3136218R1

HUB

pulley, 644

1шт.

3

3055188R1

HUB

pulley, 744/844/844S

1шт.

4

3055308R1

PLUG

1шт.

5

3132677R42

BODY

pump

1шт.

6

3055211R3

IMPELLER

pump, 644/744

1шт.

6

787579R3

IMPELLER

pump, 844/844S

1шт.

7

3055260R1

O-RING

(-xxx)

1шт.

8

3055285R93

GASKET KIT

PACKING, with: 9

1шт.

9

3055177R4

GASKET

1шт.

10

3055715R1

BELT

Fan

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING pump, 47 mm "0" 3144445R1, for 3144662R92

1шт.

11

3055192R91

BEARING ASSY,38.1mm OD x 129.5mm L

pump, 38 mm "0" Order: 3055192R1

1шт.
