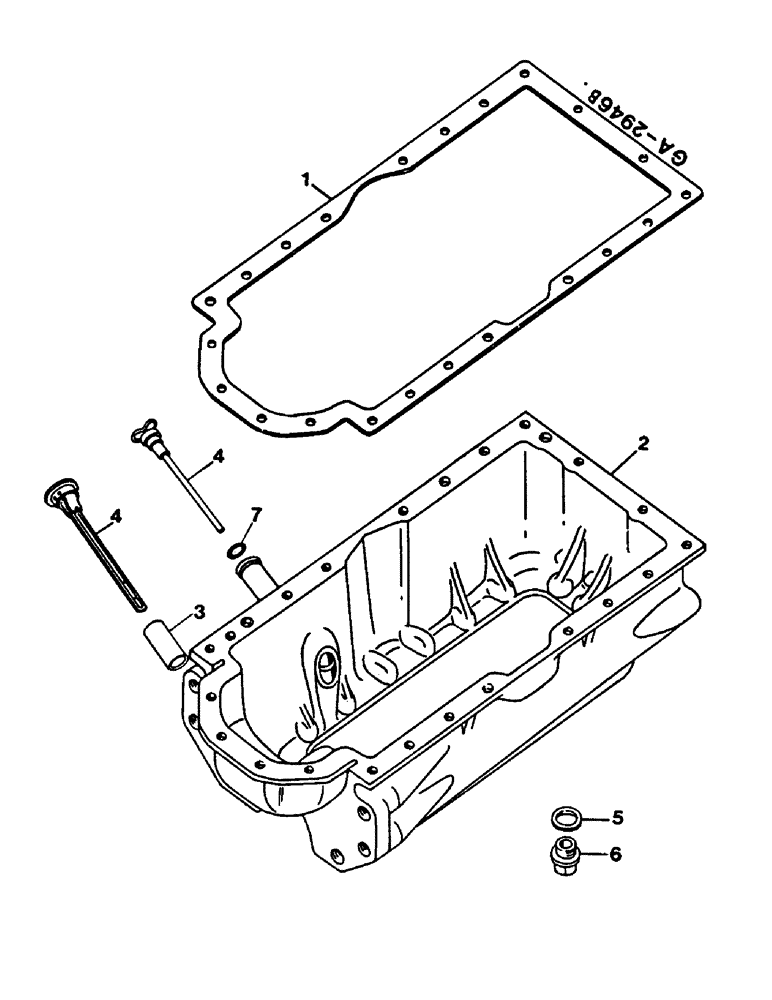

Запчасти Case IH 644 (3B03) - OIL PAN Power
№
Артикул
Название
Примечание
Количество
1
3055161R3
OIL PAN GASKET SET
644/744/844
1шт.
1
3144697R2
OIL PAN GASKET SET
844S
1шт.
2
3055135R21
PAN, ENGINE OIL
PAN, OIL 644/744/844, 644 (-075350) E, 744 (-560427) E, 844 (-017108) E, 844S (-02080) E, Includes: Ref. 3
1шт.
2
3218621R91
PAN, ENGINE OIL
PAN, OIL 644/744/844, 644 (075351-) E, 744 (560428-) E, 844 (017109-) E, 844S (022081-) E
1шт.
2
3144695R92
PAN
oil, 844S, 644 (-075350) E, 744 (-560427) E, 844 (-017108) E, 844S (-02080) E, Includes: Ref. 3
1шт.
2
3218624R91
PAN
oil, 844S, 644 (075351-) E, 744 (560428-) E, 844 (017109-) E, 844S (022081-) E
1шт.
3055668R1
SCREW,Hex, 5/16" - 18 x 176mm
5/16" x 178 mm
2шт.
186275
BOLT,Hex, 5/16" - 18 x 5 1/2", Gr 5
2шт.
413-572
BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5
2шт.
413-518
BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5
4шт.
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
16шт.
3218395R1
BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk
(5/16")
4шт.
3
3055137R1
TUBE
oil filler, 644 (-075350) E, 744 (-560427) E, 844 (-017108) E, 844S (-02080) E
1шт.
4
3055281R91
ELECTRICAL GAUGE
oil level, 644/744/844, 644 (-075350) E, 744 (-560427) E, 844 (-017108) E, 844S (-02080) E
1шт.
4
3144871R1
GAUGE
oil level, 844S, 644 (-075350) E, 744 (-560427) E, 844 (-017108) E, 844S (-02080) E
1шт.
4
3218623R92
DIPSTICK
GAUGE, oil level with: 7, 644/744/844, 644 (075351-) E, 744 (560428-) E, 844 (017109-) E, 844S (022081-) E
1шт.
4
3218626R91
ELECTRICAL GAUGE
oil level, with: 7, 844S, 644 (075351-) E, 744 (560428-) E, 844 (017109-) E, 844S (022081-) E
1шт.
4
3132868R2
ELECTRICAL GAUGE
oil level spreader type, 644/744/844, 644 (-075350) E, 744 (-560427) E, 844 (-0171080) E, 844S (-02080) E
1шт.
4
3144894R1
ELECTRICAL GAUGE
oil level spreader type, 844S, 644 (-075350) E, 744 (-560427) E, 844 (-017108) E, 844S (-02080) E
1шт.
5
1964123C1
SEALING RING,M23 x 31 x 2
1шт.
6
3059999R3
PLUG
1шт.
7
3229388R1
O-RING,2.4mm Thk x 8.3mm ID, 72 Duro
1шт.
Выбрано товаров: 23
