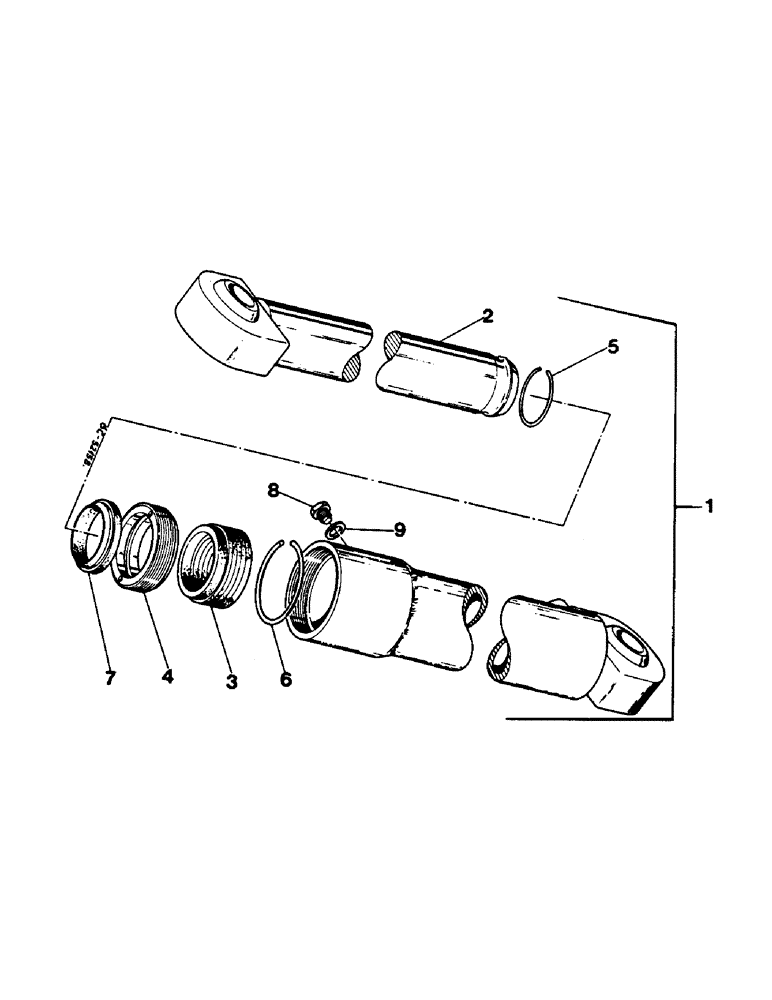

Запчасти Case IH 644 (2I06A) - AUXILIARY CYLINDER - 3146588R92 (07) - HYDRAULICS

1

3146588R93

CYLINDER ASSY.

1шт.

2

3148536R1

PISTON ROD

1шт.

3

3226669R2

GASKET KIT

SEAL

1шт.

4

3148537R1

RING

BUSHING

1шт.

5

3148540R1

RING, SNAP

RING SNAP retaining

1шт.

6

3148549R1

RING, SNAP

RING SNAP retaining

1шт.

7

3226669R2

GASKET KIT

RING scraper

1шт.

8

931281R1

HEX SOC SCREW,M6 x 10mm, Cl 8.8

1шт.

9

933696R1

SEALING RING,M6 x 10 x 1

1шт.
