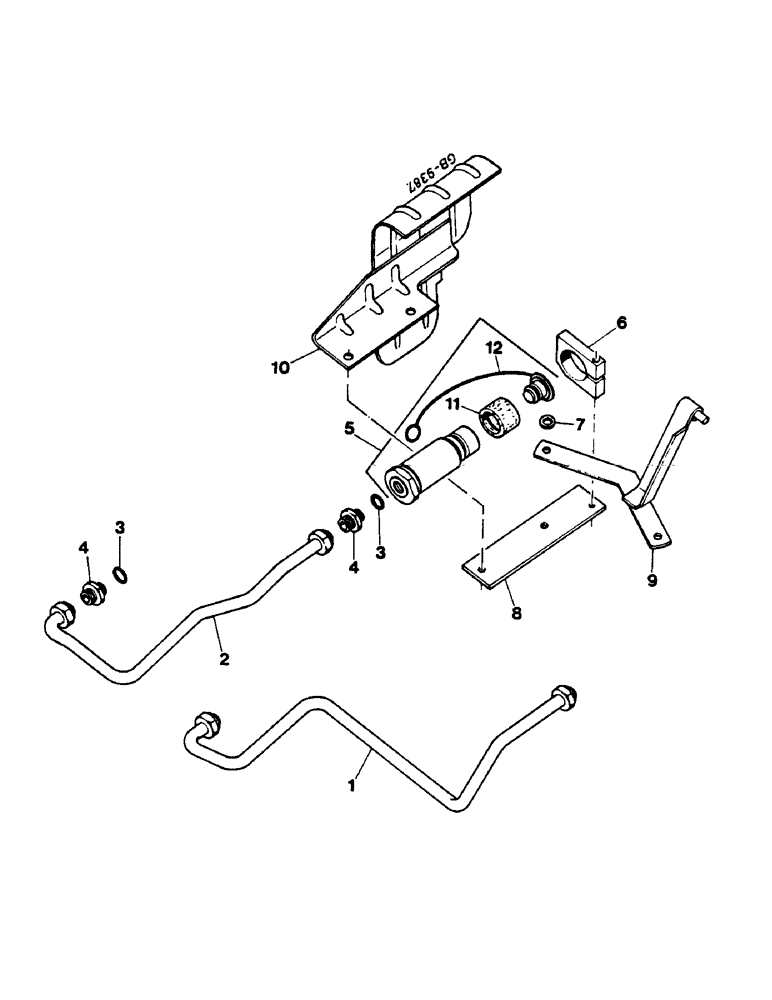

Запчасти Case IH 644 (2I04) - BREAK-AWAY COUPLING (07) - HYDRAULICS

1

3229952R2

TUBE

for control valve

1шт.

1

3229953R2

PIPE

TUBE for control valve

1шт.

Additional used for double acting valves

1шт.

2

3229955R2

PIPE

TUBE for control valve

1шт.

2

3229957R2

PIPE

TUBE for control valve

1шт.

Additional used for double acting valves

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

4

3225748R1

HYD CONNECTOR,M18 x 1.5 x M22 x 1.5

1шт.

5

3229262R1

COUPLING, BREAK AWAY

1шт.

6

3229263R1

BRACKET

HOLDER

1шт.

813-8085

BOLT,Hex, M8 x 1.25 x 85mm, Cl 8.8

1шт.

930916R1

BOLT,Hex, M8 x 1.25 x 150mm, Cl 8.8

1шт.

825-1408

NUT,M8, Cl 8

1шт.

934236R1

LOCK WASHER,M8

1шт.

7

95-81084

WASHER,0.41" ID x 0.88" OD x 0.12" Thk

1шт.

8

3229958R1

SUPPORT

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

9

3223618R92

SUPPORT

HOLDER

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

10

3147604R92

SHROUD

LH

1шт.

10

3147605R92

SHROUD

RH

1шт.

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

11

3233300R1

RING

Dust

1шт.

12

3233299R1

CAP

1шт.
