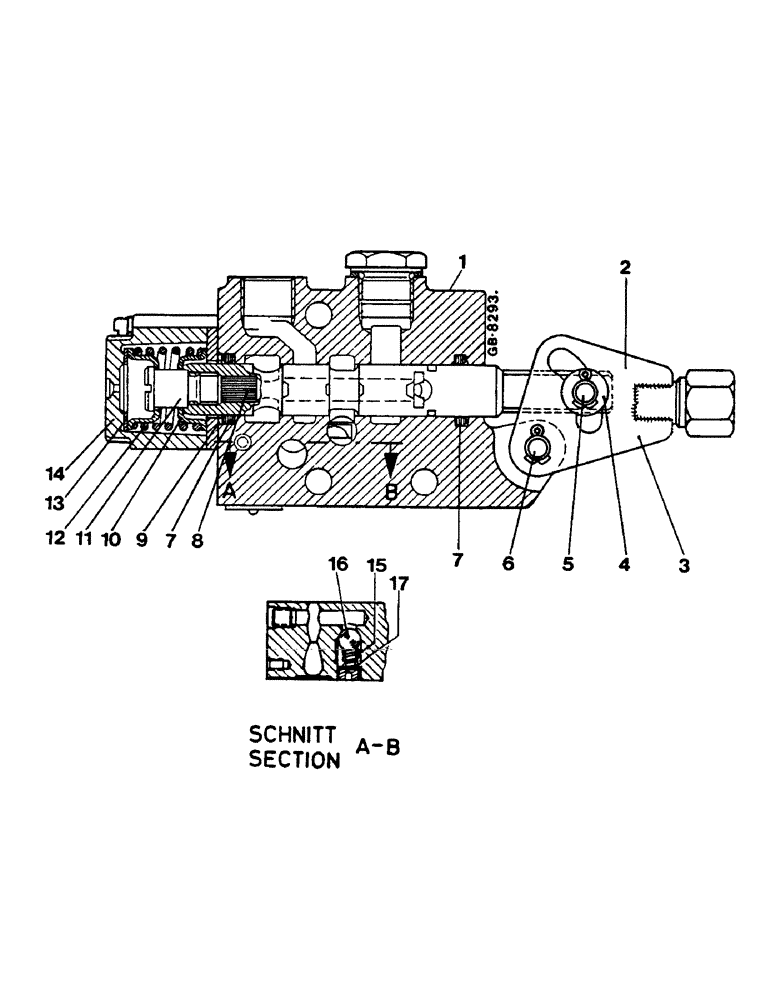

Запчасти Case IH 644 (2H23) - DOUBLE ACTING CONTROL VALVE (07) - HYDRAULICS

3059907R91

VALVE

control, for double acting power cylinders, Includes: Ref. 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

VALVE control, with double acting power cylinders, 7 - 17, 3078446R91

1шт.

2

NSS

NOT SOLD SEPARAT

BEARING shifter head, 3078447R91

1шт.

3

NSS

NOT SOLD SEPARAT

LEVER, 3078448R1

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER, 934058R1

2шт.

5

NSS

NOT SOLD SEPARAT

PIN, 3078449R1

1шт.

934059R1

PIN, SPLIT (COTTER)

SPARE PART 2 x 15 mm

2шт.

6

NSS

NOT SOLD SEPARAT

PIN, 3078450R1

1шт.

934059R1

PIN, SPLIT (COTTER)

SPARE PART 2 x 15 mm

2шт.

7

3225762R91

SEAL KIT

SEAL, 3139085R1

2шт.

Repair kits

1шт.

8

3225762R91

SEAL KIT

PLUG, 3078430R1

1шт.

Repair kits

1шт.

9

3225762R91

SEAL KIT

WASHER, 3078429R1

1шт.

Repair kits

1шт.

10

NSS

NOT SOLD SEPARAT

CAP spring, 3078433R1

2шт.

11

3078431R1

BOLT

special

1шт.

12

3225765R1

SPRING

3078435R1

1шт.

13

3078434R1

WASHER

1шт.

14

NSS

NOT SOLD SEPARAT

COVER, 3078436R1

1шт.

3079158R2

BOLT,Hex, 5/16" x 5/8", Gr 5

M6 x 35 mm

2шт.

892-11006

LOCK WASHER,M6

2шт.

15

3225763R91

PACKAGE, REPAIR

SPRING

1шт.

Repair kits

1шт.

16

3225763R91

PACKAGE, REPAIR

BALL steel, 934056R1

1шт.

Repair kits

1шт.

17

3225763R91

PACKAGE, REPAIR

PLUG

1шт.

Repair kits

1шт.
