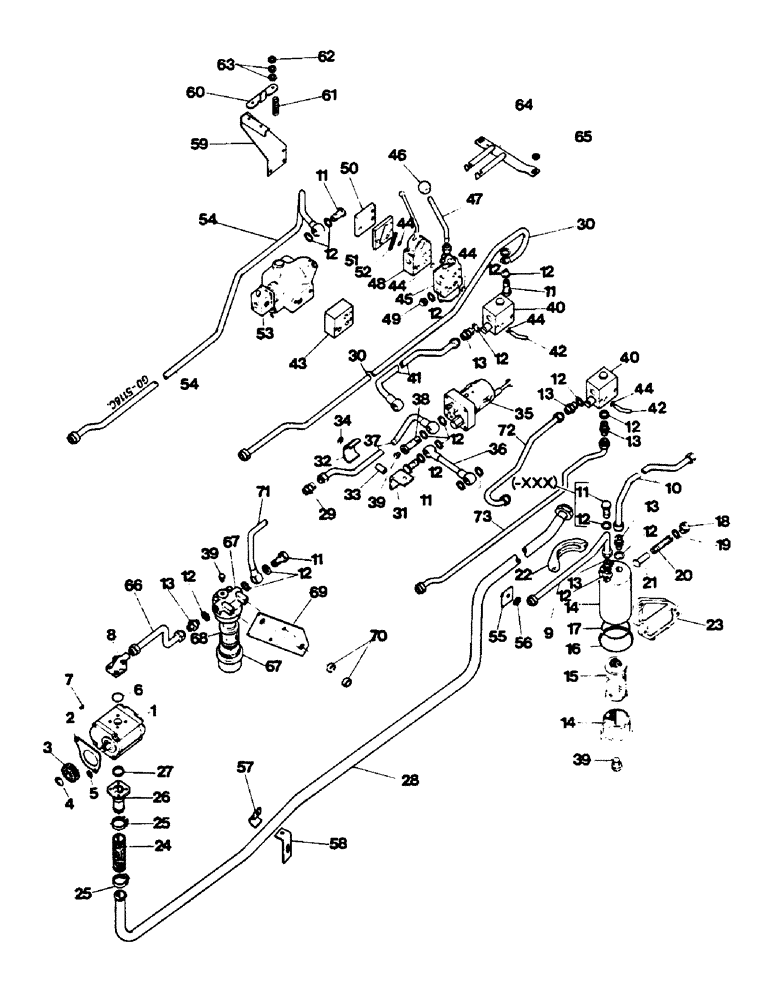

Запчасти Case IH 644 (2H08) - HYDRAULIC PUMP, CONTROL VALVES, OIL LINES (07) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

PUMP hydraulic, see page 301 2i1

1шт.

3058427R1

STUD

3/8" x 120 mm

1шт.

413-6108

BOLT,Hex, 3/8" - 16 x 6-3/4", Gr 5

1шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

(3/8")

2шт.

21070R1

NUT,3/8"-16, G8

2шт.

934945R1

NUT,Thin, M12 x 1.5, Cl 04

("Plessey")

1шт.

892-10012

LOCK WASHER,M12

1шт.

2

3057397R2

GASKET

1шт.

3

3057396R1

GEAR

drive, 20 teeth

1шт.

4

3054302R1

PLATE, LOCKING

WASHER, with tang, "Plessey" (-xxx)

1шт.

5

20285H

WASHER

1шт.

6

3057401R1

O-RING,2.5mm Thk x 18mm ID, 70 Duro

1шт.

7

836-3065

WOODRUFF KEY,M3 x 6.5

"Plessey" (-xxx)

1шт.

7

155700750718

WOODRUFF KEY

"Bosch"

1шт.

8

3057399R1

FLANGE

connection, pressure pipe

1шт.

931119R1

HEX SOC SCREW,M6 x 33mm, Cl 8.8

2шт.

931118R1

HEX SOC SCREW,M6 x 1 x 20mm, Cl 8.8

2шт.

892-11006

LOCK WASHER,M6

4шт.

9

3145192R3

PIPE

pressure, pump - oil filter, Order also: 1 x 3051337R1 1 x 3058415R1, 644 (-011722) C, 744 (-011021) C, 844 (-0055990 C, 844S (-012780) C

1шт.

9

3223607R1

TUBE

PIPE pressure, pump - oil filter, Order also: Canada-Version, 644 (-011722) C, 744 (-011021) C, 844 (-0055990 C, 844S (-012780) C

1шт.

10

3145250R2

LINE

PIPE pressure, 644/744, 644 (-011722) C, 744 (-011021) C, 844 (-0055990 C, 844S (-012780) C

1шт.

10

3221745R1

TUBE

SPARE PART PIPE pressure, 644/744, on units with cab 2000, 644 (-011722) C, 744 (-011021) C, 844 (-0055990 C, 844S (-012780) C

1шт.

10

3145249R2

PIPE

pressure, 844/844S, 644 (-011722) C, 744 (-011021) C, 844 (-0055990 C, 844S (-012780) C

1шт.

10

3221748R1

PIPE FITTING

pressure, 844/844S, on units with cab 2000, 644 (-011722) C, 744 (-011021) C, 844 (-0055990 C, 844S (-012780) C

1шт.

11

930259R1

BANJO BOLT,M18 x 1 x 42mm

hollow

1шт.

12

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

13

3225748R1

HYD CONNECTOR,M18 x 1.5 x M22 x 1.5

1шт.

14

3137561R93

FILTER ASSY

oil, with: 14 - 21, 644 (-011722) C, 744 (-011021) C, 844 (-0055990 C, 844S (-012780) C

1шт.

14

3139075R92

SPARE PART HOUSING filter, with cover and O-ring, 644 (-011722) C, 744 (-011021) C, 844 (-0055990 C, 844S (-012780) C

1шт.

15

3139076R92

FILTER

INSERT, with O-ring and spacer, 644 (-011722) C, 744 (-011021) C, 844 (-0055990 C, 844S (-012780) C

1шт.

16

3139311R1

SPACER

RING distance, 644 (-011722) C, 744 (-011021) C, 844 (-0055990 C, 844S (-012780) C

1шт.

17

3137555R1

O-RING

644 (-011722) C, 744 (-011021) C, 844 (-0055990 C, 844S (-012780) C

1шт.

18

3142368R1

PLUG

SPARE PART 644 (-011722) C, 744 (-011021) C, 844 (-0055990 C, 844S (-012780) C

1шт.

19

717183R1

O-RING,2mm Thk x 19mm ID, 70 Duro

644 (-011722) C, 744 (-011021) C, 844 (-0055990 C, 844S (-012780) C

1шт.

20

3137557R1

SPRING

pressure, 644 (-011722) C, 744 (-011021) C, 844 (-0055990 C, 844S (-012780) C

1шт.

21

3137556R1

VALVE

POPPET, 644 (-011722) C, 744 (-011021) C, 844 (-0055990 C, 844S (-012780) C

1шт.

22

3146328R1

HOLDER

644 (-011722) C, 744 (-011021) C, 844 (-0055990 C, 844S (-012780) C

1шт.

614-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 8.8, Full Thd

2шт.

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

934033R1

WASHER,M8 x 15 x 2

2шт.

23

3146327R2

PLATE

BASE oil filter, Order also: 2 x 934999R1, 644 (-011722) C, 744 (-011021) C, 844 (-0055990 C, 844S (-012780) C

1шт.

413-924

BOLT,Hex, 9/16" - 12 x 1-1/2", Gr 5

2шт.

934066R1

WASHER

2шт.

24

3147010R1

HOSE

1шт.

25

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

connecting

2шт.

26

3147009R1

FLANGE

connection, suction pipe

1шт.

931118R1

HEX SOC SCREW,M6 x 1 x 20mm, Cl 8.8

4шт.

892-11006

LOCK WASHER,M6

4шт.

27

3057400R1

O-RING,2.5mm Thk x 24mm ID, 70 Duro

1шт.

28

3145253R2

PIPE

suction, 644/744

1шт.

28

3221747R1

PIPE

suction, 644/744, on units with cab 2000

1шт.

28

3145252R2

PIPE

suction 844/844S

1шт.

28

3221749R1

LINE

PIPE suction, 844/844S, on units with cab 2000

1шт.

29

3057803R1

HYD CONNECTOR,M22 x 1.5

1шт.

30

3145785R1

TUBE

PIPE pressure oil filter - mounting block

1шт.

30

3221739R1

PIPE

pressure oil filter - mounting block, on units with cab 2000

1шт.

31

3146332R2

ANGLE BAR

clamp

1шт.

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

32

3146331R1

CLAMP

1шт.

32

3223106R1

CLAMP

on units with cab 2000

1шт.

33

3146330R1

SPACER

SPARE PART

1шт.

34

396-31028

WASHER,.281" x 5/8" x .098", HDN

2шт.

35

NSS

NOT SOLD SEPARAT

VALVE draft control, see Figure: 2H10, 2H16

1шт.

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

4шт.

492-11031

LOCK WASHER,5/16"

4шт.

36

3057631R91

PIPE

connecting

1шт.

37

3145251R2

PIPE

pressure, oil filter - draft control valve

1шт.

37

3221746R1

PIPE

pressure, oil filter - draft control valve, on units with cab 2000

1шт.

38

3139133R1

PIPE FITTING

UNION, if so equipped

1шт.

38

930259R1

BANJO BOLT,M18 x 1 x 42mm

hollow

1шт.

39

FOR444613

PLUG

1шт.

40

NSS

NOT SOLD SEPARAT

BLOCK mounting, see Figure: 2i1

1шт.

41

3145786R2

TUBE

PIPE return, to draft control valve

1шт.

41

3145494R1

TUBE

PIPE Version with hydr. trailer brake

1шт.

42

3058859R1

PIPE

return

1шт.

43

3137736R1

SPACER

version without brake valve

1шт.

43

3229959R91

SPACER

for version with 3229262R1

1шт.

931103R1

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

87016617

LOCK WASHER,M8

1шт.

44

3078445R1

O-RING

set of three, 717012R1

1шт.

45

NSS

NOT SOLD SEPARAT

Valve control, for double acting power cylinders, (three control positions) see Figure: 2H23

1шт.

45

3229348R91

VALVE

control, four double acting power cylinders (four control positions)

1шт.

46

3142351R1

BALL KNOB,32 MM x M10

BALL, lever

1шт.

47

3226921R1

LEVER

control

1шт.

47

3221738R1

LEVER

control, on units with cab 2000

1шт.

48

NSS

NOT SOLD SEPARAT

VALVE, control, for single acting power cylinders, see Figure: 2H22

1шт.

49

933223R1

PLUG,Hex, M18 x 1.5

1шт.

50

3134815R1

PLATE

cover

1шт.

930980R1

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

614-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 8.8, Full Thd

1шт.

828-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

1шт.

3225838R1

BOLT,Hex, M8 x 1.25 x 105mm, Cl 8.8

1шт.

814-8110

BOLT,Hex, M8 x 1.25 x 110mm, Cl 8.8

2шт.

813-8115

BOLT,Hex, M8 x 1.25 x 115mm, Cl 8.8

2шт.

813-8140

BOLT,Hex, M8 x 1.25 x 140mm, Cl 8.8

1шт.

930916R1

BOLT,Hex, M8 x 1.25 x 150mm, Cl 8.8

2шт.

3225839R1

BOLT,Hex, M8 x 1.25 x 155mm, Cl 8.8

2шт.

931083R1

BOLT,Hex, M8 x 1.25 x 175mm, Cl 8.8

1шт.

931510R1

BOLT,Hex, M8 x 1.25 x 190mm, Cl 10.9

2шт.

931511R1

BOLT,Hex, M8 x 1.25 x 230mm, Cl 10.9

2шт.

87016617

LOCK WASHER,M8

3шт.

51

3134814R1

PLATE

intermediate

1шт.

52

3054999R1

O-RING

1шт.

53

NSS

NOT SOLD SEPARAT

VALVE, brake, see Figure: 2i14

1шт.

54

3145493R1

TUBE

PIPE pressure, oil filter - brake valve

1шт.

55

3220183R1

PLATE

SPARE PART 32 x 60 x 6 mm, on units with cab 2000

1шт.

55

3223108R1

PLATE, 40 x 46 x 4 mm (-xxx), on units with cab 2000

1шт.

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1шт.

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

1шт.

425-104

NUT,1/4"-20, Cl 5

1шт.

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

BOLT, M6 x 20 mm

1шт.

832-10406

NUT,M6 x 1, Cl 8

1шт.

56

396-31028

WASHER,.281" x 5/8" x .098", HDN

(-xxx), on units with cab 2000

1шт.

57

3133694R1

CLAMP

on units with cab 2000

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

58

3220222R1

SUPPORT

SPARE PART ANGLE on units with cab 2000

1шт.

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

BOLT, 3/8" x 19 mm

1шт.

59

3225833R92

SUPPORT

HOLDER

1шт.

60

3225836R1

LATCH

1шт.

61

3145214R1

SPRING

1шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

1шт.

230-4114

NUT,1/4"-20, GA

1шт.

62

495-81006

WASHER,6.76mm ID x 19.05mm OD x 1.7mm Thk

1шт.

63

3058090R3

FRICTION WASHER,7mm ID x 25mm OD x 2.5mm Thk

1шт.

64

3229589R1

LATCH

on units with cab 2000

1шт.

930161R1

BOLT,Hex, M8 x 55, 8.8

1шт.

930980R1

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

43362

NUT,M8 x 1.25, Cl 10

2шт.

65

934006R1

WASHER,M8 x 16 x 1.6

17 x 8.4 x 1.5 mm, on units with cab 2000

2шт.

65

934673R1

WASHER,M8.4 x 25 x 2

25 x 8.4 x 2.0 mm, on units with cab 2000

2шт.

66

3224470R2

LINE

TUBE, 644 (011723-) C, 744 (011022-) C, 844 (005600-) C, 844S (012781-) C

1шт.

66

3230191R1

TUBE Canada-Version, 644 (011723-) C, 744 (011022-) C, 844 (005600-) C, 844S (012781-) C

1шт.

67

3224668R91

FILTER

oil, with: 39, 68, 644 (011723-) C, 744 (011022-) C, 844 (005600-) C, 844S (012781-) C

1шт.

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

2шт.

68

3224623R1

FILTER

filter, 644 (011723-) C, 744 (011022-) C, 844 (005600-) C, 844S (012781-) C

1шт.

69

3224473R1

PLATE

644 (011723-) C, 744 (011022-) C, 844 (005600-) C, 844S (012781-) C

1шт.

113-509

BOLT,Hex, 9/16" - 12 x 2", Gr 5

2шт.

934066R1

WASHER

2шт.

70

3134145R1

BUSHING

SPACER, 644 (011723-) C, 744 (011022-) C, 844 (005600-) C, 844S (012781-) C

2шт.

71

3224471R2

PIPE

pressure 644/744, 644 (011723-) C, 744 (011022-) C, 844 (005600-) C, 844S (012781-) C

1шт.

71

3224472R2

PIPE

pressure 844/844S, 644 (011723-) C, 744 (011022-) C, 844 (005600-) C, 844S (012781-) C

1шт.

71

3224474R2

PIPE

pressure 644/744, 644 (011723-) C, 744 (011022-) C, 844 (005600-) C, 844S (012781-) C, on units with cab 2000

1шт.

71

3224475R2

PIPE

pressure 844/844S, 644 (011723-) C, 744 (011022-) C, 844 (005600-) C, 844S (012781-) C, on units with cab 2000

1шт.

72

3229956R1

PIPE

return, to draft control valve, bei Maschinen ohne Kabine 2000, used with 3229262R1

1шт.

73

3229954R1

PIPE

pressure oil filter - mounting block, bei Maschinen ohne Kabine 2000, used with 3229262R1

1шт.
