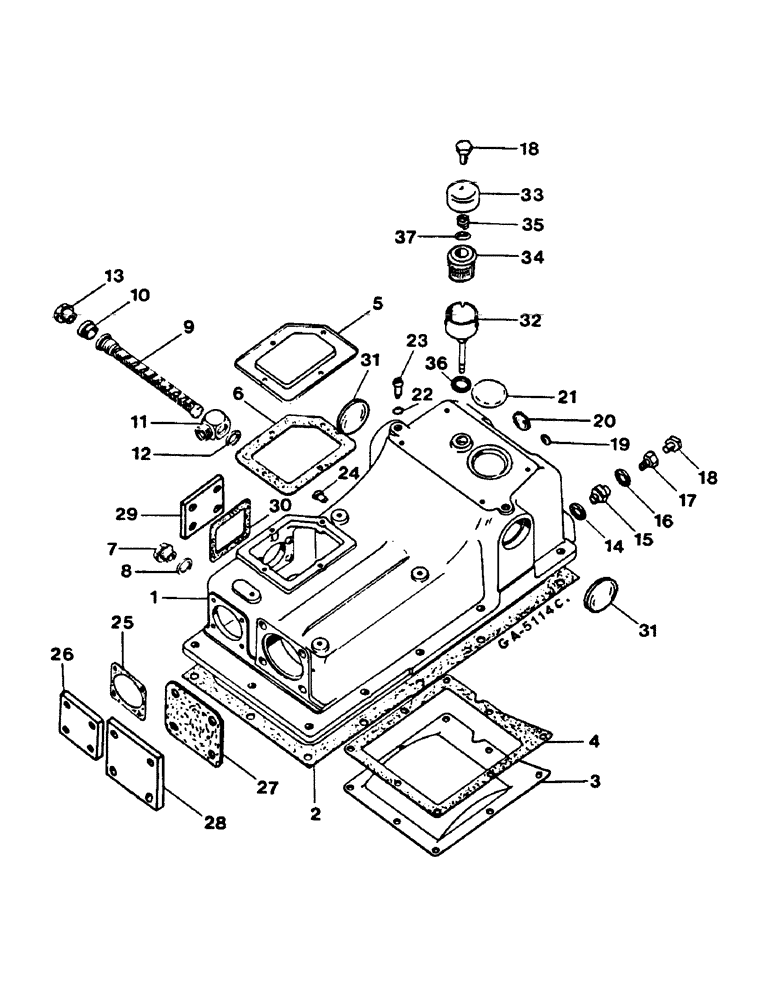

Запчасти Case IH 644 (2G10) - LIFT HOUSING (07) - HYDRAULICS

1

3145166R2

HOUSING

lift, hydraulic

1шт.

Version with hydraulic lift

1шт.

1

3145835R1

CASE

HOUSING lift, hydraulic

1шт.

Version w/o hydraulic lift, with additional control valves

1шт.

Version w/o hydraulic lift, w/o additional control valves

1шт.

413-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5

3шт.

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

2шт.

1091395R3

CATALOG

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

9шт.

932835R1

LOCK PIN,M16 x 24, Slotted

1шт.

2

1964081C1

GASKET

1шт.

3

3145169R1

COVER

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

492-11031

LOCK WASHER,5/16"

8шт.

4

3145170R3

GASKET

1шт.

5

3057627R2

COVER

adjusting

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

492-11031

LOCK WASHER,5/16"

4шт.

6

3057628R2

GASKET

1шт.

Version with hydraulic lift

1шт.

Version w/o hydraulic lift, with additional control valves

1шт.

7

716954R1

PLUG,Hex, M22 x 1.5

1шт.

8

717183R1

O-RING,2mm Thk x 19mm ID, 70 Duro

1шт.

Version with hydraulic lift

1шт.

Version w/o hydraulic lift, with additional control valves

1шт.

9

3137238R91

STRAINER ELEMENT

suction, Includes: 9 - 12

1шт.

Version with hydraulic lift

1шт.

Version w/o hydraulic lift, with additional control valves

1шт.

9

3059935R91

STRAINER ASSY.

suction

1шт.

Version with hydraulic lift

1шт.

Version w/o hydraulic lift, with additional control valves

1шт.

10

3058066R1

PLUG

1шт.

Version with hydraulic lift

1шт.

Version w/o hydraulic lift, with additional control valves

1шт.

11

3058064R1

UNION

connecting

1шт.

Version with hydraulic lift

1шт.

Version w/o hydraulic lift, with additional control valves

1шт.

12

3058065R1

RING

packing

1шт.

Version with hydraulic lift

1шт.

Version w/o hydraulic lift, with additional control valves

1шт.

13

933786R1

PLUG,Hex Hd, M26 x 1.5

1шт.

Version w/o hydraulic lift, w/o additional control valves

1шт.

14

1964123C1

SEALING RING,M23 x 31 x 2

1шт.

Version with hydraulic lift

1шт.

Version w/o hydraulic lift, with additional control valves

1шт.

15

3145171R1

UNION

1шт.

Version with hydraulic lift

1шт.

Version w/o hydraulic lift, with additional control valves

1шт.

16

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

Version with hydraulic lift

1шт.

Version w/o hydraulic lift, with additional control valves

1шт.

17

933223R1

PLUG,Hex, M18 x 1.5

1шт.

Version with hydraulic lift

1шт.

Version w/o hydraulic lift, with additional control valves

1шт.

18

3059999R3

PLUG

2шт.

Version w/o hydraulic lift, w/o additional control valves

1шт.

19

41-12

PLUG,Exp, 3/4"

expansion

1шт.

20

63556R1

PLUG

expansion, 50 mm "0"

1шт.

20

934222R1

PLUG,Exp, M30

expansion, 30 mm "0"

1шт.

21

3057293R1

PLUG

expansion

1шт.

22

710673R2

SEALING WASHER,8mm ID x 11.5mm OD x 1mm Thk

RING, packing

2шт.

Version w/o hydraulic lift, with additional control valves

1шт.

23

716447R2

SCREW

fillister head

2шт.

Version w/o hydraulic lift, with additional control valves

1шт.

Version w/o hydraulic lift, w/o additional control valves

1шт.

24

3058858R2

PLUG

1шт.

25

3053453R2

GASKET

1шт.

Version with hydraulic lift

1шт.

Version w/o hydraulic lift, with additional control valves

1шт.

26

3145834R2

COVER

1шт.

Version w/o hydraulic lift, with additional control valves

1шт.

26

3131893R2

COVER

1шт.

Version w/o hydraulic lift, with additional control valves

1шт.

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

4шт.

Version w/o hydraulic lift, with additional control valves

1шт.

Version w/o hydraulic lift, w/o additional control valves

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

Version w/o hydraulic lift, with additional control valves

1шт.

Version w/o hydraulic lift, w/o additional control valves

1шт.

492-11031

LOCK WASHER,5/16"

4шт.

Version w/o hydraulic lift, with additional control valves

1шт.

Version w/o hydraulic lift, w/o additional control valves

1шт.

27

3131895R1

GASKET

1шт.

Version w/o hydraulic lift, with additional control valves

1шт.

28

3131894R1

COVER

1шт.

Version w/o hydraulic lift, with additional control valves

1шт.

Version w/o hydraulic lift, w/o additional control valves

1шт.

413-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5

4шт.

Version w/o hydraulic lift, with additional control valves

1шт.

Version w/o hydraulic lift, w/o additional control valves

1шт.

92-11062

LOCK WASHER,5/8"

4шт.

Version w/o hydraulic lift, with additional control valves

1шт.

Version w/o hydraulic lift, w/o additional control valves

1шт.

29

3131876R1

BEARING COVER

1шт.

Version w/o hydraulic lift, with additional control valves

1шт.

Version w/o hydraulic lift, w/o additional control valves

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

Version w/o hydraulic lift, with additional control valves

1шт.

Version w/o hydraulic lift, w/o additional control valves

1шт.

492-11031

LOCK WASHER,5/16"

4шт.

Version w/o hydraulic lift, with additional control valves

1шт.

Version w/o hydraulic lift, w/o additional control valves

1шт.

30

3053452R2

GASKET

1шт.

Version w/o hydraulic lift, with additional control valves

1шт.

31

3131892R1

PLUG

expansion, 84 mm "0"

2шт.

Version w/o hydraulic lift, with additional control valves

1шт.

Version w/o hydraulic lift, w/o additional control valves

1шт.

31

3057293R1

PLUG

expansion, 80 mm "0"

2шт.

Version w/o hydraulic lift, with additional control valves

1шт.

Version w/o hydraulic lift, w/o additional control valves

1шт.

32

3145873R92

FILTER

GAUGE oil level, with breather, with: 37, Includes: 32 - 35

1шт.

Version with hydraulic lift

1шт.

Version w/o hydraulic lift, with additional control valves

1шт.

32

3145878R2

HOUSING

CASE

1шт.

Version with hydraulic lift

1шт.

Version w/o hydraulic lift, with additional control valves

1шт.

33

3145875R2

COVER ASSY

1шт.

Version with hydraulic lift

1шт.

Version w/o hydraulic lift, with additional control valves

1шт.

34

3221048R1

HYDRAULIC OIL FILTER

3145876R1, 3145877R1

1шт.

Version with hydraulic lift

1шт.

Version w/o hydraulic lift, with additional control valves

1шт.

35

3148682R1

SPRING

1шт.

Version with hydraulic lift

1шт.

Version w/o hydraulic lift, with additional control valves

1шт.

36

3147943R1

O-RING

1шт.

Version with hydraulic lift

1шт.

Version w/o hydraulic lift, with additional control valves

1шт.

37

3148683R1

SPRING CUP

retainer

1шт.

Version with hydraulic lift

1шт.

Version w/o hydraulic lift, with additional control valves

1шт.

3216624R91

GASKET

set

1шт.

Version with hydraulic lift

1шт.

3216625R91

GASKET KIT

set

1шт.

Version w/o hydraulic lift, with additional control valves

1шт.
