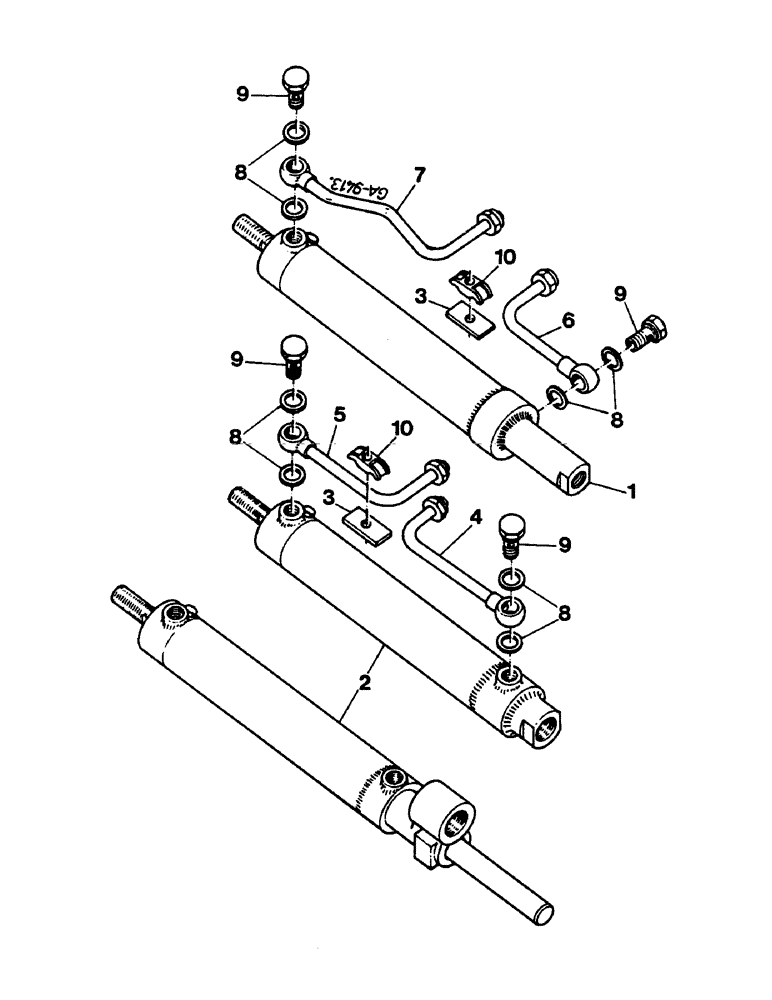

Запчасти Case IH 644 (2G06) - STEERING CYLINDER (07) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

CYLINDER steering, see Figure: 2G8, 644 (014222-) C, 744 (013699-) C, 844 (006276-) C, 844S (016725-) C

1шт.

2

NSS

NOT SOLD SEPARAT

CYLINDER steering, for four wheel drive, see Figure: 2G8, for axle APL- 1351

1шт.

3

3058623R1

PLATE

BRACKET clamp

1шт.

4

3217438R1

TUBE

PIPE pressure, for axle APL- 1351

1шт.

5

3217439R1

TUBE

PIPE pressure, for axle APL- 1351

1шт.

6

3220693R1

PIPE,127, 78 mm Length

pressure, 644 (014222-) C, 744 (013699-) C, 844 (006276-) C, 844S (016725-) C

1шт.

7

3230101R1

PIPE

pressure, 644 (014222-) C, 744 (013699-) C, 844 (006276-) C, 844S (016725-) C

1шт.

8

933155R1

SEALING RING,M16 x 20 x 1.5

4шт.

9

930241R1

BANJO BOLT,M16 x 1.5 x 36mm

hollow

2шт.

10

3217247R1

CLAMP

1шт.

931236R1

BOLT,Hex, M6 x 1 x 35, Cl 5.6

2шт.

825-1406

NUT,M6, Cl 8

2шт.

495-11028

WASHER,1/4", SAE

2шт.
